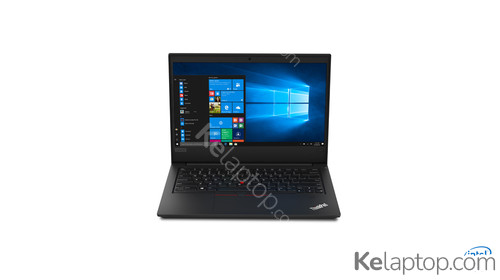

Lenovo ThinkPad E E490 20N8000LAD
Specs
Prices
Main specs
| Processor | Intel Core i7-8565U 1,8GHz |
|---|---|
| Screen | 14" 1366x768 TN |
| Hard drive | 1TB HDD |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From Lenovo
Full specifications of Lenovo ThinkPad E E490 20N8000LAD
| Reference / Part Number | 20N8000LAD |
|---|---|
| Release date | June 2019, 7 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Market positioning | Business |
Image gallery
Screen
| Display diagonal | 14 " (35,6 cm) |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| Panel type | TN |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Pantalla dual | No |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8565U |
| Processor frequency | 1,8 GHz |
| Generación del procesador | Intel Core i7-8xxx |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4,6 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Whiskey Lake |
| Bus type | OPI |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4,2x2 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | HDD |
| Optical drive type | No |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA III |
| HDD speed | 5400 RPM |
| HDD size | 2.5 " |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
Audio
| Audio chip | Conexant CX11880 |
|---|---|
| Audio system | Dolby Advanced Audio |
| Number of built-in speakers | 2 |
| Speaker power | 1,5 W |
| Built-in subwoofer | No |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
| Auto focus | No |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 9260 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Near Field Communication (NFC) | No |
| WWAN | Not installed |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4b |
| DisplayPorts quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Spill-resistant keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 1.8 " (46x24 mm) |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 149091 |
Battery
| Battery capacity | 45 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 13 h |
| Fast charging | Yes |
Control de energía
| Puerto de carga USB tipo C | Yes |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Aprobaciones reguladoras
| Certificados de conformidad | RoHS |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 3.9 lbs (1,75 kg) |
|---|---|
| Width | 13 " (329 mm) |
| Depth | 9.5 " (242 mm) |
| Height | 0.8 " (19,9 mm) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
Other features
| LightScribe | No |
|---|---|
| 3D | No |
| Maximum internal memory (64-bit) | 32 GB |
Frequently asked questions
Is the Lenovo ThinkPad E E490 20N8000LAD good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo ThinkPad E E490 20N8000LAD last?
The manufacturer declares up to 13 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo ThinkPad E E490 20N8000LAD like?
It carries a 14" 1366x768 TN display.
Which processor and graphics card does the Lenovo ThinkPad E E490 20N8000LAD have?
It runs on the Intel Core i7-8565U processor with the Intel UHD Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo ThinkPad E E490 20N8000LAD be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the Lenovo ThinkPad E E490 20N8000LAD come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Lenovo ThinkPad E E490 20N8000LAD have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Lenovo ThinkPad E E490 20N8000LAD have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Lenovo ThinkPad E E490 20N8000LAD weigh?
It weighs 1,75 kg, a normal weight for its size: easy enough to move around.
When was the Lenovo ThinkPad E E490 20N8000LAD released?
Its release date is June 2019, 7 years ago.
