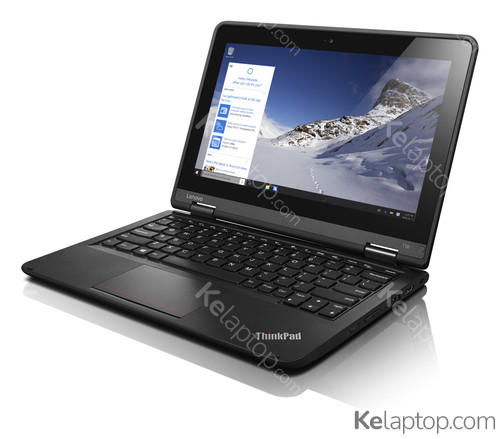

Lenovo ThinkPad 11e Yoga 20GAS01L00
Specs
Prices
Main specs
| Processor | Intel Celeron N3160 1,6GHz |
|---|---|
| Screen | 11.6" 1366x768 IPS |
| Hard drive | 128GB SSD |
| RAM | 4GB DDR3L-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From Lenovo
Full specifications of Lenovo ThinkPad 11e Yoga 20GAS01L00
| Reference / Part Number | 20GAS01L00 |
|---|---|
| Release date | May 2019, 7 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product color | Black |
| Form factor | Convertible (Folder) |
Image gallery
Screen
| Display diagonal | 11.6 " (29,5 cm) |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| HD type | HD |
| Touch technology | Multi-touch |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Gloss |
| Pantalla dual | No |
| Contrast ratio (typical) | 800:1 |
Processor
| Processor family | Intel® Celeron® |
|---|---|
| Processor manufacturer | Intel |
| Processor model | N3160 |
| Processor frequency | 1,6 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2,24 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor socket | BGA 1170 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Celeron N3000 series |
| Processor codename | Braswell |
| Stepping | D1 |
| Thermal Design Power (TDP) | 6 W |
| Scenario Design Power (SDP) | 4 W |
| Tjunction | 90 °C |
| Maximum number of PCI Express lanes | 4 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 128 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 400 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 320 MHz |
| On-board graphics card burst frequency | 640 MHz |
| Maximum on-board graphics card memory | 8 GB |
| Number of execution units | 12 |
| On-board graphics card DirectX version | 12.0 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera signal format | 720p |
| Front camera HD type | HD |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Docking connector | No |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel Smart Connect Technology | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Smart Response Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 25 x 27 mm |
| Processor code | SR2KP |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| UART | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel Secure Boot | Yes |
| Intel Smart Connect Technology version | 0.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Secure Boot Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Rapid Storage Technology | No |
| Processor ARK ID | 91831 |
| Conflict-Free processor | Yes |
| Integrated 4G WiMAX | No |
Battery
| Battery capacity | 42 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 3 |
| Battery life (max) | 11,53 h |
Power
| AC adapter power | 45 W |
|---|---|
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Weight & dimensions
| Weight | 3.5 lbs (1,59 kg) |
|---|---|
| Width | 11.8 " (300 mm) |
| Depth | 8.3 " (210 mm) |
| Height | 0.9 " (22,9 mm) |
Other features
| LightScribe | No |
|---|---|
| Intel segment tagging | Education,Industrial |
Frequently asked questions
Is the Lenovo ThinkPad 11e Yoga 20GAS01L00 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 400. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo ThinkPad 11e Yoga 20GAS01L00 last?
The manufacturer declares up to 11,53 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo ThinkPad 11e Yoga 20GAS01L00 like?
It carries a 11.6" 1366x768 IPS display.
Which processor and graphics card does the Lenovo ThinkPad 11e Yoga 20GAS01L00 have?
It runs on the Intel Celeron N3160 processor with the Intel HD Graphics 400 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo ThinkPad 11e Yoga 20GAS01L00 be upgraded?
Yes: it has 1 memory slot and takes up to 8 GB according to the manufacturer (it ships with 4GB).
Which operating system does the Lenovo ThinkPad 11e Yoga 20GAS01L00 come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Lenovo ThinkPad 11e Yoga 20GAS01L00 have?
According to its spec sheet: 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Lenovo ThinkPad 11e Yoga 20GAS01L00 have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the Lenovo ThinkPad 11e Yoga 20GAS01L00 weigh?
It weighs 1,59 kg, a normal weight for its size: easy enough to move around.
When was the Lenovo ThinkPad 11e Yoga 20GAS01L00 released?
Its release date is May 2019, 7 years ago.
