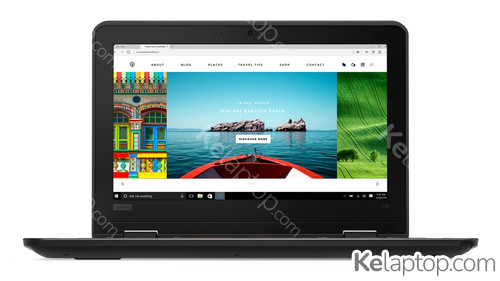

Lenovo ThinkPad 11e (5th Gen) 20LQ0001US
Specs
Prices
Main specs
| Processor | Intel Core m3 m3-7Y30 1GHz |
|---|---|
| Screen | 11.6" 1366x768 |
| Hard drive | 128GB SSD |
| RAM | 4GB LPDDR3-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | Intel HD Graphics 615 |
Alternatives with equal or higher power at a similar or lower price
From Lenovo
From other brands
Full specifications of Lenovo ThinkPad 11e (5th Gen) 20LQ0001US
| Reference / Part Number | 20LQ0001US |
|---|---|
| Release date | March 2018, 8 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 29,5 cm |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ m3 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | m3-7Y30 |
| Processor frequency | 1 GHz |
| Processor generation | 7th gen Intel® Core™ m3 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2,6 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1515 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Bus type | OPI |
| Stepping | H0 |
| Thermal Design Power (TDP) | 4,5 W |
| Configurable TDP-up frequency | 1,6 GHz |
| Configurable TDP-up | 7 W |
| Configurable TDP-down | 3,75 W |
| Configurable TDP-down frequency | 0,6 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 10 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 4 GB |
|---|---|
| Internal memory type | LPDDR3-SDRAM |
| Memory clock speed | 1866 MHz |
| Memory form factor | On-board |
| Memory layout (slots x size) | 1 x 4 GB |
Storage
| Total storage capacity | 128 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | M.2 |
Graphics
| On-board graphics card | Yes |
|---|---|
| On-board graphics card model | Intel® HD Graphics 615 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 900 MHz |
| Maximum on-board graphics card memory | 16 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591E |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 2 W |
Camera
| Front camera | Yes |
|---|---|
| Front camera signal format | 720p |
| Front camera HD type | HD |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Keyboard backlit | No |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 20.5 X 16.5 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR2ZY |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 95449 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 42 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Power
| AC adapter power | 45 W |
|---|
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | Power on,Supervisor |
Certificates
| Compliance certificates | RoHS |
|---|
Sustainability
| Sustainability certificates | EPEAT Gold,ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,36 kg |
|---|---|
| Width | 210 mm |
| Depth | 21,9 mm |
| Height | 300 mm |
Frequently asked questions
Is the Lenovo ThinkPad 11e (5th Gen) 20LQ0001US good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 615. Its card's page shows what level it handles current games at.
What is the screen of the Lenovo ThinkPad 11e (5th Gen) 20LQ0001US like?
It carries a 11.6" 1366x768 display.
Which processor and graphics card does the Lenovo ThinkPad 11e (5th Gen) 20LQ0001US have?
It runs on the Intel Core m3 m3-7Y30 processor with the Intel HD Graphics 615 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Lenovo ThinkPad 11e (5th Gen) 20LQ0001US come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Lenovo ThinkPad 11e (5th Gen) 20LQ0001US have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the Lenovo ThinkPad 11e (5th Gen) 20LQ0001US have a backlit keyboard?
No, according to its spec sheet the keyboard is not backlit.
Does the Lenovo ThinkPad 11e (5th Gen) 20LQ0001US have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Lenovo ThinkPad 11e (5th Gen) 20LQ0001US weigh?
It weighs 1,36 kg: one of the light ones, easy to carry every day.
When was the Lenovo ThinkPad 11e (5th Gen) 20LQ0001US released?
Its release date is March 2018, 8 years ago.
