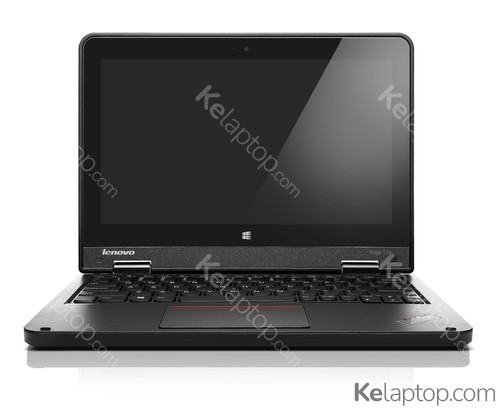

Lenovo ThinkPad 11e 20DU0009MN
Specs
Prices
Main specs
| Processor | Intel Celeron N2940 1,83GHz |
|---|---|
| Screen | 11.6" 1366x768 200 nits |
| Hard drive | 16GB Flash |
| RAM | 4GB DDR3L-SDRAM |
| Operating system | ChromeOS |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From Lenovo
Full specifications of Lenovo ThinkPad 11e 20DU0009MN
| Reference / Part Number | 20DU0009MN |
|---|---|
| Release date | March 2017, 9 years ago |
Design
| Product type | Chromebook |
|---|---|
| Product color | Black,Graphite |
| Form factor | Clamshell |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
Image gallery
Screen
| Display diagonal | 11.6 " (29,5 cm) |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Screen shape | Flat |
| Display brightness | 200 cd/m² |
| Contrast ratio (typical) | 500:1 |
Processor
| Processor family | Intel® Celeron® |
|---|---|
| Processor manufacturer | Intel |
| Processor model | N2940 |
| Processor frequency | 1,83 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2,25 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor socket | BGA 1170 |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit,64-bit |
| Processor series | Intel Celeron Processor N2000 series for Mobile |
| Processor codename | Bay Trail |
| Stepping | C0 |
| Thermal Design Power (TDP) | 7,5 W |
| Scenario Design Power (SDP) | 4,5 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 4 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x4 |
| ECC supported by processor | No |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 4 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory clock speed | 1333 MHz |
| Memory form factor | On-board |
| Maximum internal memory (64-bit) | 4 GB |
Storage
| Total storage capacity | 16 GB |
|---|---|
| Storage media | Flash |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 313 MHz |
| On-board graphics card burst frequency | 854 MHz |
| On-board graphics card dynamic frequency (max) | 854 MHz |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 1 MP |
| Front camera resolution | 1280 x 720 pixels |
Optical drive
| LightScribe | No |
|---|
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | 802.11a,802.11b,802.11g |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Docking connector | No |
| Total number of SATA connectors | 2 |
Performance
| Motherboard chipset | Intel SoC |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | ChromeOS |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel Smart Connect Technology | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel Enhanced Halt State | Yes |
| Intel® Secure Key | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor package size | 25 x 27 mm |
| Processor code | SR1YV |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 22 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel Smart Connect Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 82104 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 35 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery life (max) | 8 h |
Power
| AC adapter power | 45 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
Aprobaciones reguladoras
| Certificados de conformidad | RoHS |
|---|---|
| Certification | MIL-STD-810G, GREENGUARD |
Sustainability
| Sustainability certificates | EPEAT Gold,ENERGY STAR |
|---|
Weight & dimensions
| Width | 11.8 " (300 mm) |
|---|---|
| Depth | 8.3 " (210 mm) |
| Height | 0.9 " (22,3 mm) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
Other features
| Intel segment tagging | Education,Industrial |
|---|
Frequently asked questions
Is the Lenovo ThinkPad 11e 20DU0009MN good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo ThinkPad 11e 20DU0009MN last?
The manufacturer declares up to 8 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo ThinkPad 11e 20DU0009MN like?
It carries a 11.6" 1366x768 200 nits display.
Which processor and graphics card does the Lenovo ThinkPad 11e 20DU0009MN have?
It runs on the Intel Celeron N2940 processor with the Intel HD Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Lenovo ThinkPad 11e 20DU0009MN come with?
It comes with ChromeOS preinstalled.
Which ports does the Lenovo ThinkPad 11e 20DU0009MN have?
According to its spec sheet: 1 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Lenovo ThinkPad 11e 20DU0009MN have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the Lenovo ThinkPad 11e 20DU0009MN made of?
Its housing is made of Acrylonitrile butadiene styrene (ABS).
When was the Lenovo ThinkPad 11e 20DU0009MN released?
Its release date is March 2017, 9 years ago.
