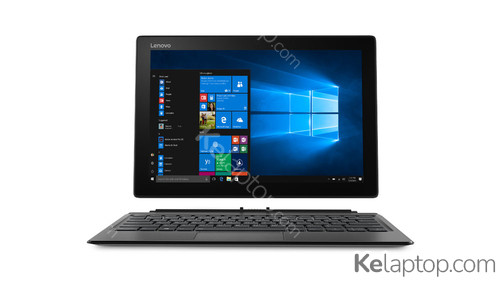

Lenovo Miix 500 520-12IKB BE 20M30045PG
Specs
Prices
Main specs
| Processor | Intel Core i5-8250U 1,6GHz |
|---|---|
| Screen | 12.2" 1920x1200 IPS 320 nits |
| Hard drive | 128GB SSD M.2 |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | |
| Other | Keyboard Portuguese. |
Alternatives with equal or higher power at a similar or lower price
From Lenovo
Full specifications of Lenovo Miix 500 520-12IKB BE 20M30045PG
| Reference / Part Number | 20M30045PG |
|---|---|
| Also sold as | 20M3004MPG |
| Release date | May 2022, 4 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product colour | Grey |
| Form factor | Convertible (Detachable) |
| Colour name | Iron Grey |
Image gallery
Screen
| Display diagonal | 31 cm |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 320 cd/m² |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-8250U |
| Processor frequency | 1,6 GHz |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor cores | 4 |
| Processor boost frequency | 3,4 GHz |
| Bus type | OPI |
| Configurable TDP-up frequency | 1,8 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory form factor | On-board |
Storage
| Total storage capacity | 128 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 620 |
Audio
| Audio system | Dolby Audio Premium |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 5 MP |
Network
| Mobile network connection | Yes |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Mobile network generation | 4G |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| Near Field Communication (NFC) | No |
| WWAN | Installed |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
Performance
| Motherboard chipset | Intel SoC |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard language | Portuguese |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | Office |
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 39 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 8 h |
Power
| AC adapter power | 45 W |
|---|
Security
| Fingerprint reader | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Certificates
| Compliance certificates | RoHS |
|---|
Sustainability
| Sustainability certificates | EPEAT Silver,ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,26 kg |
|---|---|
| Weight (tablet mode) | 880 g |
| Width (tablet mode) | 30 cm |
| Depth (tablet mode) | 20,5 cm |
| Height (tablet mode) | 9,9 mm |
Packaging content
| Stylus pen | Yes |
|---|
Frequently asked questions
Is the Lenovo Miix 500 520-12IKB BE 20M30045PG good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics 620. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo Miix 500 520-12IKB BE 20M30045PG last?
The manufacturer declares up to 8 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo Miix 500 520-12IKB BE 20M30045PG like?
It carries a 12.2" 1920x1200 IPS 320 nits display.
Which processor and graphics card does the Lenovo Miix 500 520-12IKB BE 20M30045PG have?
It runs on the Intel Core i5-8250U processor with the Intel UHD Graphics 620 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the Lenovo Miix 500 520-12IKB BE 20M30045PG come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Lenovo Miix 500 520-12IKB BE 20M30045PG have?
According to its spec sheet: 1 × USB-C, 1 × USB-A, card reader, headphone jack (3.5 mm).
Does the Lenovo Miix 500 520-12IKB BE 20M30045PG have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo Miix 500 520-12IKB BE 20M30045PG have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the Lenovo Miix 500 520-12IKB BE 20M30045PG weigh?
It weighs 1,26 kg: one of the light ones, easy to carry every day.
When was the Lenovo Miix 500 520-12IKB BE 20M30045PG released?
Its release date is May 2022, 4 years ago.
