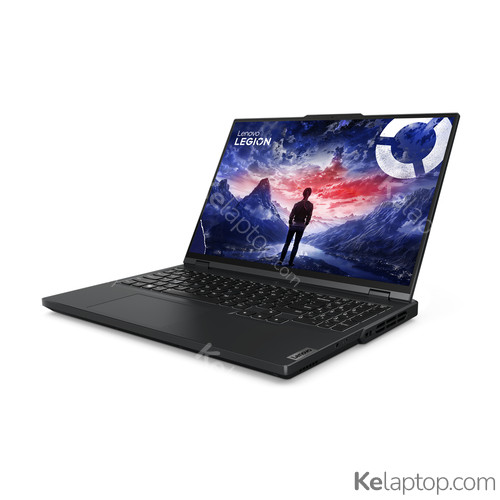

Lenovo Legion Pro 5 16IRX9 83DF00A8US
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 16" 2560x1600 IPS 165Hz 300 nits 100% sRGB |
| Hard drive | 2TB SSD M.2 |
| RAM | 32GB DDR5-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | NVIDIA GeForce RTX 4070 8GB GDDR6 |
| Other | Keyboard US English. |
Alternatives with equal or higher power at a similar or lower price
Full specifications of Lenovo Legion Pro 5 16IRX9 83DF00A8US
| Reference / Part Number | 83DF00A8US |
|---|---|
| Release date | April 2024, 2 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
| Colour name | Onyx grey |
| Housing material | Polycarbonate (PC),Acrylonitrile butadiene styrene (ABS),Aluminium |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 40,6 cm |
|---|---|
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | WQXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| RGB colour space | sRGB |
| Colour gamut | 100 % |
| Maximum refresh rate | 165 Hz |
| Contrast ratio (typical) | 1200:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Dolby Vision |
Processor
| Processor family | Intel® Core™ i9 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i9-14900HX |
| Processor generation | Intel Core i9-14xxx |
| Processor cores | 24 |
| Processor threads | 28 |
| Processor boost frequency | 5,8 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Performance-core Max Turbo Frequency | 5,8 GHz |
| Efficient-core Max Turbo Frequency | 4,1 GHz |
| Performance-core base frequency | 2,2 GHz |
| Efficient-core base frequency | 1,6 GHz |
| Processor cache | 36 MB |
| Processor cache type | Smart Cache |
| Processor base power | 55 W |
| Maximum turbo power | 157 W |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory channels | Dual-channel |
Storage
| Total storage capacity | 2 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 4070 |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| NVIDIA G-SYNC | Yes |
Audio
| Audio chip | Realtek ALC3287 |
|---|---|
| Audio system | Nahimic Audio |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Motherboard chipset | Intel HM770 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | 4-zone RGB |
| Keyboard language | US English |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system language | English |
| Trial software | Office Trial |
Battery
| Battery capacity | 80 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 5,2 h |
| Continuous video playback time | 7,1 h |
| Fast charging | Yes |
Power
| AC adapter power | 300 W |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
Security
| Fingerprint reader | No |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS,Power on,Supervisor |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Maximum shipping altitude | 3048 m |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | ErP Lot 3 TÜV Rheinland® High Gaming Performance TÜV Rheinland Low Blue Light (Hardware Solution) |
Weight & dimensions
| Weight | 2,5 kg |
|---|---|
| Width | 363,4 mm |
| Depth | 261,8 mm |
| Height (front) | 2,2 cm |
| Height (rear) | 2,69 cm |
Sustainability
| Sustainability compliance | Yes |
|---|
Frequently asked questions
Is the Lenovo Legion Pro 5 16IRX9 83DF00A8US good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 4070. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo Legion Pro 5 16IRX9 83DF00A8US last?
The manufacturer declares up to 5,2 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo Legion Pro 5 16IRX9 83DF00A8US like?
It carries a 16" 2560x1600 IPS 165Hz 300 nits 100% sRGB display.
Which processor and graphics card does the Lenovo Legion Pro 5 16IRX9 83DF00A8US have?
It runs on the Intel Core i9-14900HX processor with the NVIDIA GeForce RTX 4070 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo Legion Pro 5 16IRX9 83DF00A8US be upgraded?
It has 2 memory slots, but it already ships with the maximum it takes (32 GB).
Which operating system does the Lenovo Legion Pro 5 16IRX9 83DF00A8US come with?
It comes with Windows 11 Home preinstalled.
Which ports does the Lenovo Legion Pro 5 16IRX9 83DF00A8US have?
According to its spec sheet: 2 × USB-C, 4 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the Lenovo Legion Pro 5 16IRX9 83DF00A8US have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo Legion Pro 5 16IRX9 83DF00A8US have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the Lenovo Legion Pro 5 16IRX9 83DF00A8US made of?
Its housing is made of Polycarbonate (PC),Acrylonitrile butadiene styrene (ABS),Aluminium.
How much does the Lenovo Legion Pro 5 16IRX9 83DF00A8US weigh?
It weighs 2,5 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the Lenovo Legion Pro 5 16IRX9 83DF00A8US released?
Its release date is April 2024, 2 years ago.
