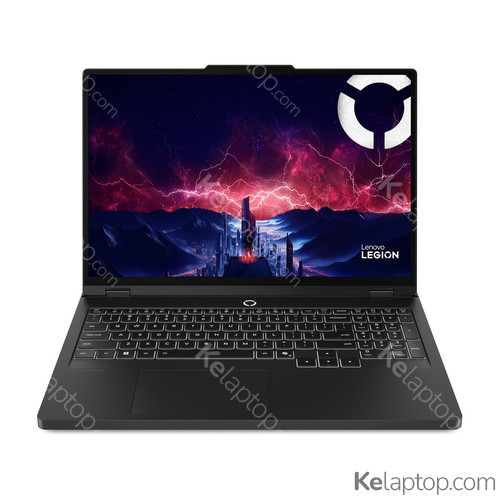

Lenovo Legion Pro 5 16ADR10 83LT005MMB
Specs
Prices
Main specs
| Processor | AMD Ryzen 9 8945HX 2,5GHz |
|---|---|
| Screen | 16" 2560x1600 IPS 240Hz 500 nits 100% DCI-P3 |
| Hard drive | 2TB SSD M.2 |
| RAM | 32GB DDR5-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | NVIDIA GeForce RTX 5070 8GB GDDR7 |
| Other | Keyboard Belgian. |
Alternatives with equal or higher power at a similar or lower price
Full specifications of Lenovo Legion Pro 5 16ADR10 83LT005MMB
| Reference / Part Number | 83LT005MMB |
|---|---|
| Release date | August 2025, 1 year ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Color name | Eclipse black |
| Housing material | Acrylonitrile butadiene styrene (ABS),Aluminium,Polycarbonate (PC) |
Image gallery
Screen
| Display diagonal | 16 " (40,6 cm) |
|---|---|
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | WQXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 500 cd/m² |
| RGB color space | DCI-P3 |
| Color gamut | 100 % |
| Maximum refresh rate | 240 Hz |
| Contrast ratio (typical) | 1200:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR 400,Dolby Vision |
Processor
| Processor family | AMD Ryzen™ 9 |
|---|---|
| Processor manufacturer | AMD |
| Processor model | 8945HX |
| Processor frequency | 2,5 GHz |
| Generación del procesador | AMD Ryzen 8000 Series |
| Processor cores | 16 |
| Processor threads | 32 |
| Processor boost frequency | 5,4 GHz |
| L3 cache | 64 MB |
| L2 cache | 16 MB |
| Potencia base del procesador | 55 |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5200 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory channels | Dual-channel |
Storage
| Total storage capacity | 2 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Tamaño de la unidad SSD M.2 | 2242 (22 x 42 mm) |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 5070 |
| On-board graphics card model | AMD Radeon 610M |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR7 |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | AMD |
| On-board graphics card family | AMD Radeon |
| NVIDIA G-SYNC | Yes |
| AMD FreeSync | Yes |
Audio
| Audio chip | Realtek ALC3306 |
|---|---|
| Audio system | Nahimic Audio |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Harman Kardon |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 5 MP |
| Privacy camera | Yes |
| Privacy type | Webcam kill switch |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| WWAN | Not installed |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Motherboard chipset | AMD SoC |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit color | White |
| Keyboard language | Belgian |
| Tecla Copilot | Yes |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
| Operating system language | DEU,DUT,ENG,FRE |
| Trial software | Office |
| Bundled software | Office Trial + Lenovo AI Now |
Battery
| Battery capacity | 80 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 5,4 h |
| Continuous video playback time | 6,3 h |
| Fast charging | Yes |
Control de energía
| Puerto de carga USB tipo C | Yes |
|---|---|
| Potencia de carga requerida (mín.) | 65 |
| Potencia de carga requerida (máx.) | 100 |
| AC adapter power | 245 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery | Yes |
Security
| Fingerprint reader | No |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS,HDD,Power on |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Maximum shipping altitude | 3048 m |
Aprobaciones reguladoras
| Certificados de conformidad | RoHS |
|---|---|
| Certification | ErP Lot 3 TÜV Rheinland High Gaming Performance TÜV Rheinland Low Blue Light (Hardware Solution) |
Weight & dimensions
| Weight | 5.3 lbs (2,4 kg) |
|---|---|
| Width | 14.3 " (364,4 mm) |
| Depth | 10.6 " (268,1 mm) |
| Height (front) | 0.9 " (2,17 cm) |
| Height (rear) | 1 " (2,6 cm) |
Packaging content
| AC adapter included | Yes |
|---|
Frequently asked questions
Is the Lenovo Legion Pro 5 16ADR10 83LT005MMB good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 5070. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo Legion Pro 5 16ADR10 83LT005MMB last?
The manufacturer declares up to 5,4 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo Legion Pro 5 16ADR10 83LT005MMB like?
It carries a 16" 2560x1600 IPS 240Hz 500 nits 100% DCI-P3 display.
Which processor and graphics card does the Lenovo Legion Pro 5 16ADR10 83LT005MMB have?
It runs on the AMD Ryzen 9 8945HX processor with the NVIDIA GeForce RTX 5070 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo Legion Pro 5 16ADR10 83LT005MMB be upgraded?
It has 2 memory slots, but it already ships with the maximum it takes (32 GB).
Which operating system does the Lenovo Legion Pro 5 16ADR10 83LT005MMB come with?
It comes with Windows 11 Home preinstalled.
Which ports does the Lenovo Legion Pro 5 16ADR10 83LT005MMB have?
According to its spec sheet: 2 × USB-C, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the Lenovo Legion Pro 5 16ADR10 83LT005MMB have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo Legion Pro 5 16ADR10 83LT005MMB have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the Lenovo Legion Pro 5 16ADR10 83LT005MMB made of?
Its housing is made of Acrylonitrile butadiene styrene (ABS),Aluminium,Polycarbonate (PC).
How much does the Lenovo Legion Pro 5 16ADR10 83LT005MMB weigh?
It weighs 2,4 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the Lenovo Legion Pro 5 16ADR10 83LT005MMB released?
Its release date is August 2025, 1 year ago.
