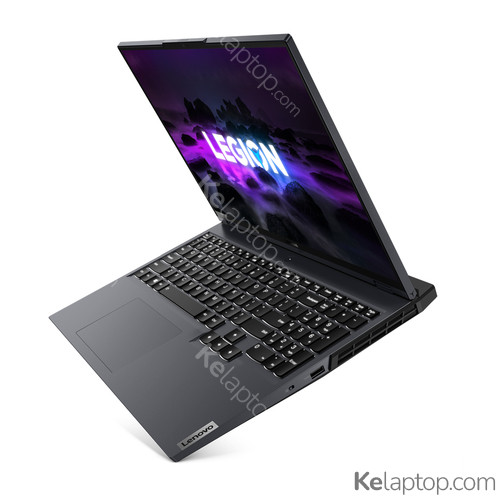

Lenovo Legion Pro 5 16ACH6H 82JQ00JCIN
Specs
Prices
Main specs
| Processor | AMD Ryzen 7 5800H 3,2GHz |
|---|---|
| Screen | 16" 2560x1600 IPS 165Hz 500 nits 100% sRGB |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | NVIDIA GeForce RTX 3060 6GB GDDR6 |
| Other | Keyboard English. |
Other configurations of this model
Full specifications of Lenovo Legion Pro 5 16ACH6H 82JQ00JCIN
| Reference / Part Number | 82JQ00JCIN |
|---|---|
| Release date | June 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Gray |
| Form factor | Clamshell |
| Color name | Storm Grey (Top), Black (Bottom) |
| Housing material | Aluminum |
| Market positioning | Gaming |
Image gallery
Screen
| Display diagonal | 16 " (40,6 cm) |
|---|---|
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | WQXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Display brightness | 500 cd/m² |
| RGB color space | sRGB |
| Color gamut | 100 % |
| Maximum refresh rate | 165 Hz |
| Contrast ratio (typical) | 1200:1 |
| High Dynamic Range (HDR) technology | Dolby Vision,High Dynamic Range (HDR) 400 |
Processor
| Processor family | AMD Ryzen™ 7 |
|---|---|
| Processor manufacturer | AMD |
| Processor model | 5800H |
| Processor frequency | 3,2 GHz |
| Generación del procesador | AMD Ryzen 5000 Series |
| Processor cores | 8 |
| Processor boost frequency | 4,4 GHz |
| Processor cache | 16 MB |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3060 |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
Audio
| Audio chip | Realtek ALC3306 |
|---|---|
| Audio system | Nahimic Audio |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,100 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Motherboard chipset | AMD SoC |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit color | RGB |
| Zona retroiluminada del teclado | 4-zone RGB |
| Keyboard language | English |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system language | English |
| Bundled software | Office Home & Student 2021 |
Battery
| Battery capacity | 80 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Fast charging | Yes |
Power
| AC adapter power | 300 W |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
| USB Power Delivery | Yes |
Security
| Fingerprint reader | No |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Maximum shipping altitude | 3048 m |
Certificates
| Certification | ENERGY STAR® 8.0 ErP Lot 3 TUV Low Blue Light RoHS compliant |
|---|
Weight & dimensions
| Weight | 5.4 lbs (2,45 kg) |
|---|---|
| Width | 14 " (356 mm) |
| Depth | 10.3 " (260,4 mm) |
| Height (front) | 0.9 " (2,17 cm) |
| Height (rear) | 1.1 " (2,69 cm) |
Alternatives with equal or higher power at a similar or lower price
Frequently asked questions
Is the Lenovo Legion Pro 5 16ACH6H 82JQ00JCIN good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 3060. Its card's page shows what level it handles current games at.
What is the screen of the Lenovo Legion Pro 5 16ACH6H 82JQ00JCIN like?
It carries a 16" 2560x1600 IPS 165Hz 500 nits 100% sRGB display.
Which processor and graphics card does the Lenovo Legion Pro 5 16ACH6H 82JQ00JCIN have?
It runs on the AMD Ryzen 7 5800H processor with the NVIDIA GeForce RTX 3060 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo Legion Pro 5 16ACH6H 82JQ00JCIN be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 16GB).
Which operating system does the Lenovo Legion Pro 5 16ACH6H 82JQ00JCIN come with?
It comes with Windows 11 Home preinstalled.
Which ports does the Lenovo Legion Pro 5 16ACH6H 82JQ00JCIN have?
According to its spec sheet: 2 × USB-C, 4 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the Lenovo Legion Pro 5 16ACH6H 82JQ00JCIN have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo Legion Pro 5 16ACH6H 82JQ00JCIN have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the Lenovo Legion Pro 5 16ACH6H 82JQ00JCIN made of?
Its housing is made of Aluminum.
How much does the Lenovo Legion Pro 5 16ACH6H 82JQ00JCIN weigh?
It weighs 2,45 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the Lenovo Legion Pro 5 16ACH6H 82JQ00JCIN released?
Its release date is June 2023, 3 years ago.
