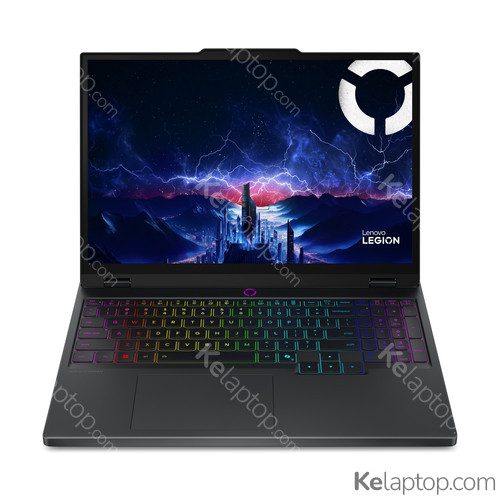

Lenovo Legion 5 15IAX10 83F0001RUS
Price, score and specs

Family
Legion

22 From $839.99
Series
5

12 From $839.99

Main specs

Processor	Intel Core Ultra 7 255HX
Screen	15.1" 2560x1600 OLED 165Hz
Hard drive	1TB SSD M.2
RAM	32GB DDR5-SDRAM
Operating system	Windows 11 Pro
Graphics card	NVIDIA GeForce RTX 5070 8GB GDDR7

Prices
In 1 stores

Prices

Ships from United States

See price

Gaming 9.4

9.2

Processor

9.2

Graphics

8.4

Resolution

RAM

9.5

Storage

Power and specifications 83%

Processor

Graphics

Resolution

100

RAM

Storage

Technical data sheet
Best alternatives

Full specifications of Lenovo Legion 5 15IAX10 83F0001RUS

Reference / Part Number

83F0001RUS

Release date

May 2025, 1 year ago

Design

Product type	Laptop
Product color	Black
Form factor	Clamshell
Color name	Eclipse Black
Housing material	Acrylonitrile butadiene styrene (ABS),Aluminium,Polycarbonate (PC)

Image gallery

Screen

Display diagonal	15.1 " (38,4 cm)
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	OLED
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	500 cd/m²
RGB color space	DCI-P3
Color gamut	100 %
Low Blue Light technology	Yes
Maximum refresh rate	165 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR True Black 600,Dolby Vision

Processor

Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	255HX
Generación del procesador	Intel Core Ultra (Series 2)
Processor cores	20
Processor threads	20
Processor boost frequency	5,2 GHz
Núcleos de rendimiento	8
Núcleos de eficiencia	12
Frecuencia turbo máxima del núcleo de rendimiento	5.2
Frecuencia turbo máxima del núcleo de eficiencia	4.5
Frecuencia base de núcleo de rendimiento	2.4
Frecuencia base de núcleo eficiente	1.8
Processor cache	30 MB
Potencia base del procesador	55
Potencia turbo máxima	160

Unidad de procesamiento neuronal (NPU)

Unidad de procesamiento neuronal (NPU)	Intel AI Boost
Soporte de dispersión	Yes
Soporte de efectos de Windows Studio	Yes
Entornos de trabajo de software de IA compatibles con el núcleo NPU	DirectML,OpenVINO,Windows ML,ONNX RT,WebNN
Rendimiento total del procesador de hasta	33
Rendimiento del núcleo NPU de hasta	13
Rendimiento de GPU máximo	8

Memory

Internal memory	32 GB
Maximum internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Memory channels	Dual-channel

Storage

Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Tamaño de la unidad SSD M.2	2242 (22 x 42 mm)
Card reader integrated	No

Graphics

On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5070
On-board graphics card model	Intel Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
Fabricante de GPU (unidad de procesamiento gráfico) integrada	Intel
On-board graphics card family	Intel Graphics

Audio

Audio chip	Realtek ALC3287
Audio system	Nahimic Audio
Number of built-in speakers	2
Speakers manufacturer	Harman Kardon
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
WWAN	Not installed

Ports & interfaces

USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Número de puertos Thunderbolt 4	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Motherboard chipset	Intel HM870

Keyboard

Numeric keypad	Yes
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard backlit color	RGB
Zona retroiluminada del teclado	24-zone RGB
Keyboard language	Belgian
Tecla Copilot	Yes

Software

Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	DEU,DUT,ENG,FRE
Trial software	Office
Bundled software	Office Trial + Lenovo AI Now

Battery

Battery capacity	80 Wh
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	4,4 h
Continuous video playback time	10,8 h
Fast charging	Yes

Control de energía

Puerto de carga USB tipo C	Yes
Potencia de carga requerida (mín.)	65
Potencia de carga requerida (máx.)	100
AC adapter power	245 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery	Yes

Security

Fingerprint reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS,HDD,Power on,Supervisor

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95 %
Storage relative humidity (H-H)	5 - 95 %
Maximum shipping altitude	3048 m

Aprobaciones reguladoras

Certificados de conformidad	RoHS,TÜV mark
Certification	RoHS

Sustainability

Sustainability certificates	ErP

Weight & dimensions

Weight	4.2 lbs (1,9 kg)
Width	13.6 " (344,9 mm)
Depth	10.1 " (255,3 mm)
Height (front)	0.8 " (2 cm)
Height (rear)	0.8 " (2,15 cm)

Packaging content

AC adapter included	Yes
