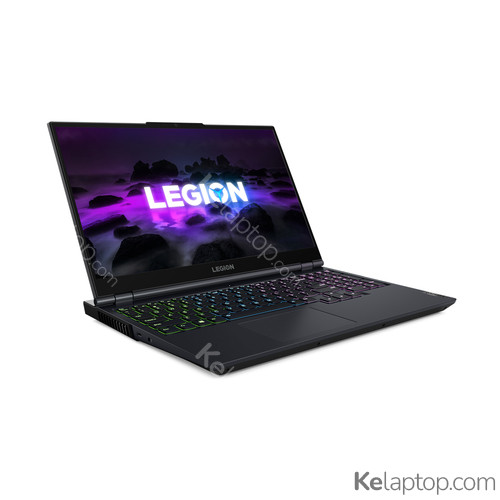

Lenovo Legion 5 15ACH6A 82NW006FHV
Specs
Prices
Main specs
| Processor | AMD Ryzen 5 5600H 3,3GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 165Hz 300 nits 100% sRGB |
| Hard drive | 512GB SSD M.2 |
| RAM | 8GB DDR4-SDRAM |
| Operating system | No OS installed |
| Graphics card | AMD Radeon RX 6600M 8GB GDDR6 |
| Other | Keyboard Hungarian. |
Alternatives with equal or higher power at a similar or lower price
Full specifications of Lenovo Legion 5 15ACH6A 82NW006FHV
| Reference / Part Number | 82NW006FHV |
|---|---|
| Release date | July 2022, 4 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Colour name | Phantom Blue (top) Shadow Black (bottom) |
| Housing material | Acrylonitrile butadiene styrene (ABS),Polycarbonate (PC) |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| RGB colour space | sRGB |
| Colour gamut | 100 % |
| Maximum refresh rate | 165 Hz |
| High Dynamic Range (HDR) technology | Dolby Vision |
Processor
| Processor family | AMD Ryzen™ 5 |
|---|---|
| Processor manufacturer | AMD |
| Processor model | 5600H |
| Processor frequency | 3,3 GHz |
| Processor generation | AMD Ryzen 5000 Series |
| Processor cores | 6 |
| Processor boost frequency | 4,2 GHz |
| Processor cache | 16 MB |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe,PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Radeon RX 6600M |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
Audio
| Audio chip | Realtek ALC3306 |
|---|---|
| Audio system | Nahimic Audio |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Motherboard chipset | AMD SoC |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard language | Hungarian |
Software
| Operating system installed | No |
|---|
Battery
| Battery capacity | 60 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 7,85 h |
| Fast charging | Yes |
Power
| AC adapter power | 230 W |
|---|---|
| USB Power Delivery (USB PD) | Yes |
Security
| Fingerprint reader | No |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Maximum shipping altitude | 3048 m |
Certificates
| Certification | ErP Lot 3 RoHS |
|---|
Weight & dimensions
| Weight | 2,4 kg |
|---|---|
| Width | 362,6 mm |
| Depth | 260,6 mm |
| Height (front) | 2,25 cm |
| Height (rear) | 2,58 cm |
Frequently asked questions
Is the Lenovo Legion 5 15ACH6A 82NW006FHV good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated AMD Radeon RX 6600M. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo Legion 5 15ACH6A 82NW006FHV last?
The manufacturer declares up to 7,85 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo Legion 5 15ACH6A 82NW006FHV like?
It carries a 15.6" 1920x1080 IPS 165Hz 300 nits 100% sRGB display.
Which processor and graphics card does the Lenovo Legion 5 15ACH6A 82NW006FHV have?
It runs on the AMD Ryzen 5 5600H processor with the AMD Radeon RX 6600M graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo Legion 5 15ACH6A 82NW006FHV be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the Lenovo Legion 5 15ACH6A 82NW006FHV come with?
It comes with no operating system installed: the price does not include a license and you will have to install one yourself.
Which ports does the Lenovo Legion 5 15ACH6A 82NW006FHV have?
According to its spec sheet: 2 × USB-C, 4 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the Lenovo Legion 5 15ACH6A 82NW006FHV have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo Legion 5 15ACH6A 82NW006FHV have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the Lenovo Legion 5 15ACH6A 82NW006FHV made of?
Its housing is made of Acrylonitrile butadiene styrene (ABS),Polycarbonate (PC).
How much does the Lenovo Legion 5 15ACH6A 82NW006FHV weigh?
It weighs 2,4 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the Lenovo Legion 5 15ACH6A 82NW006FHV released?
Its release date is July 2022, 4 years ago.
