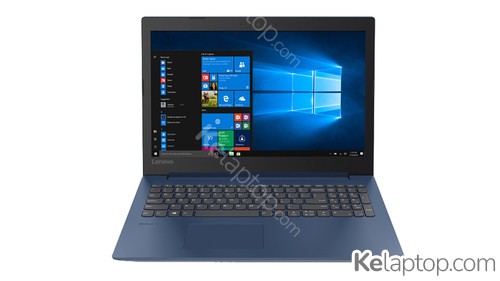

Lenovo IdeaPad 300 330S 81F5006BUS
Specs
Prices
Main specs
| Processor | Intel Core i7-8550U 1,8GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 250 nits |
| Hard drive | 1TB HDD |
| RAM | 4GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | Intel UHD Graphics 620 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of Lenovo IdeaPad 300 330S 81F5006BUS
| Reference / Part Number | 81F5006BUS |
|---|---|
| Release date | May 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Blue |
| Form factor | Clamshell |
| Housing material | Acrylonitrile butadiene styrene (ABS),Aluminium,Polycarbonate (PC) |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8550U |
| Processor frequency | 1,8 GHz |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 8 MB |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake R |
| Bus type | OPI |
| Stepping | Y0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 12 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | HDD |
| Optical drive type | No |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| Intel® Optane™ Memory module installed | Yes |
| Intel® Optane™ Memory module capacity | 16 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| On-board graphics card model | Intel® UHD Graphics 620 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5917 |
Audio
| Audio system | Dolby Audio Premium |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 1 MP |
| Front camera HD type | HD |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Antenna type | 1x1 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| HDMI version | 1.4b |
| DisplayPorts quantity | 0 |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 X 24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 122589 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 52,5 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 9 h |
Power
| AC adapter power | 65 W |
|---|---|
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | No |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Power on,Supervisor |
Certificates
| Compliance certificates | RoHS |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,87 kg |
|---|---|
| Width | 358,4 mm |
| Depth | 244,1 mm |
| Height | 19,4 mm |
Frequently asked questions
Is the Lenovo IdeaPad 300 330S 81F5006BUS good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics 620. Its card's page shows what level it handles current games at.
How long does the battery of the Lenovo IdeaPad 300 330S 81F5006BUS last?
The manufacturer declares up to 9 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Lenovo IdeaPad 300 330S 81F5006BUS like?
It carries a 15.6" 1920x1080 IPS 250 nits display.
Which processor and graphics card does the Lenovo IdeaPad 300 330S 81F5006BUS have?
It runs on the Intel Core i7-8550U processor with the Intel UHD Graphics 620 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Lenovo IdeaPad 300 330S 81F5006BUS be upgraded?
Yes: it has 1 memory slot and takes up to 12 GB according to the manufacturer (it ships with 4GB).
Which operating system does the Lenovo IdeaPad 300 330S 81F5006BUS come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Lenovo IdeaPad 300 330S 81F5006BUS have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the Lenovo IdeaPad 300 330S 81F5006BUS have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Lenovo IdeaPad 300 330S 81F5006BUS have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the Lenovo IdeaPad 300 330S 81F5006BUS made of?
Its housing is made of Acrylonitrile butadiene styrene (ABS),Aluminium,Polycarbonate (PC).
How much does the Lenovo IdeaPad 300 330S 81F5006BUS weigh?
It weighs 1,87 kg, a normal weight for its size: easy enough to move around.
When was the Lenovo IdeaPad 300 330S 81F5006BUS released?
Its release date is May 2020, 6 years ago.
