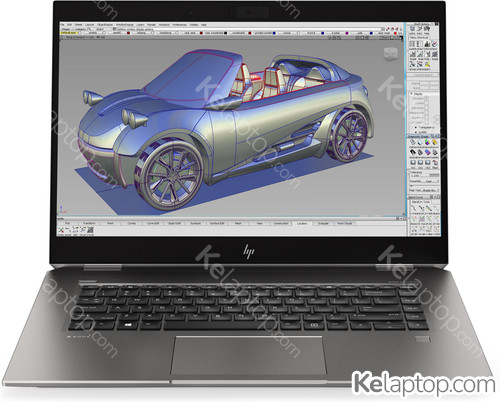

HP ZBook Studio G5 6TW75ES
Specs
Prices
Main specs
| Processor | Intel Core i7-9750H 2,6GHz |
|---|---|
| Screen | 15.6" 1920x1080 |
| Hard drive | 512GB SSD |
| RAM | 32GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA Quadro P2000 4GB |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of HP ZBook Studio G5 6TW75ES
| Reference / Part Number | 6TW75ES |
|---|---|
| Release date | October 2019, 7 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product color | Silver |
| Form factor | Clamshell |
| Market positioning | Business |
| Country of origin | China |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-9750H |
| Processor frequency | 2,6 GHz |
| Generación del procesador | Intel Core i7-9xxx |
| Processor boost frequency | 4,5 GHz |
| Processor threads | 12 |
| System bus rate | 8 GT/s |
| Processor cores | 6 |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
Memory
| Internal memory | 32 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® P2000 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 4 GB |
Audio
| Audio system | Bang & Olufsen |
|---|---|
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Clickpad |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 191045 |
Brand-specific features
| HP speaker type | HP Quad Speakers |
|---|---|
| HP Smart AC Adapter | Yes |
| HP segment | Business |
Battery
| Battery technology | Lithium Polymer (LiPo) |
|---|
Power
| AC adapter power | 150 W |
|---|
Weight & dimensions
| Width | 14.2 " (360 mm) |
|---|---|
| Depth | 10 " (254 mm) |
| Height (front) | 0.3 " (8,8 mm) |
| Height (rear) | 0.7 " (1,74 cm) |
Frequently asked questions
Is the HP ZBook Studio G5 6TW75ES good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro P2000. Its card's page shows what level it handles current games at.
What is the screen of the HP ZBook Studio G5 6TW75ES like?
It carries a 15.6" 1920x1080 display.
Which processor and graphics card does the HP ZBook Studio G5 6TW75ES have?
It runs on the Intel Core i7-9750H processor with the NVIDIA Quadro P2000 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the HP ZBook Studio G5 6TW75ES be upgraded?
Yes: it has 2 memory slots.
Which operating system does the HP ZBook Studio G5 6TW75ES come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the HP ZBook Studio G5 6TW75ES have?
According to its spec sheet: 2 × USB-C, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
When was the HP ZBook Studio G5 6TW75ES released?
Its release date is October 2019, 7 years ago.
