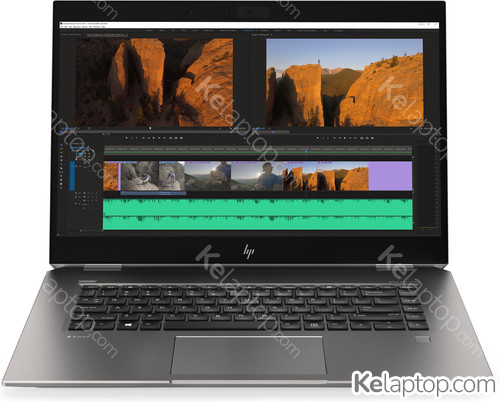

HP ZBook Studio G5 2ZC52EA
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-8850H 2,6GHz |
|---|---|
| Screen | 15.6" 3840x2160 IPS |
| Hard drive | 512GB SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA Quadro P1000 4GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of HP ZBook Studio G5 2ZC52EA
| Reference / Part Number | 2ZC52EA |
|---|---|
| Release date | May 2018, 8 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product colour | Silver |
| Form factor | Clamshell |
| Country of origin | China |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8850H |
| Processor frequency | 2,6 GHz |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4,3 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 9 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Bus type | DMI |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Configurable TDP-down frequency | 2,1 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| ECC supported by processor | No |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe 3.0,PCI Express |
| NVMe | Yes |
| Intel® Optane™ Memory module installed | Yes |
| Intel® Optane™ Memory module capacity | 16 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® P1000 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
Audio
| Audio system | Bang & Olufsen |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Thunderbolt 3 ports quantity | 2 |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Clickpad |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 134899 |
Power
| AC adapter power | 150 W |
|---|---|
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 2,05 kg |
|---|---|
| Width | 360 mm |
| Depth | 254 mm |
| Height (front) | 8,8 mm |
| Height (rear) | 1,74 cm |
Frequently asked questions
Is the HP ZBook Studio G5 2ZC52EA good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro P1000. Its card's page shows what level it handles current games at.
What is the screen of the HP ZBook Studio G5 2ZC52EA like?
It carries a 15.6" 3840x2160 IPS display.
Which processor and graphics card does the HP ZBook Studio G5 2ZC52EA have?
It runs on the Intel Core i7 i7-8850H processor with the NVIDIA Quadro P1000 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the HP ZBook Studio G5 2ZC52EA be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 16GB).
Which operating system does the HP ZBook Studio G5 2ZC52EA come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the HP ZBook Studio G5 2ZC52EA have?
According to its spec sheet: 2 × Thunderbolt 3, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the HP ZBook Studio G5 2ZC52EA have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the HP ZBook Studio G5 2ZC52EA have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the HP ZBook Studio G5 2ZC52EA weigh?
It weighs 2,05 kg, a normal weight for its size: easy enough to move around.
When was the HP ZBook Studio G5 2ZC52EA released?
Its release date is May 2018, 8 years ago.
