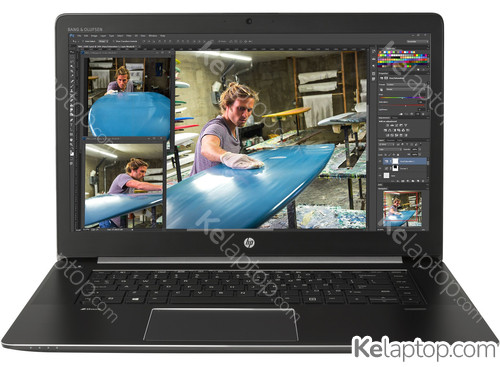

HP ZBook Studio G3 T7W04EA#UUG#*KIT2*
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-6820HQ 2,7GHz |
|---|---|
| Screen | 15.6" 3840x2160 IPS |
| Hard drive | 512GB SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 7 Professional |
| Graphics card | NVIDIA Quadro M1000M 2GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of HP ZBook Studio G3 T7W04EA#UUG#*KIT2*
| Reference / Part Number | T7W04EA#UUG#*KIT2* |
|---|---|
| Release date | March 2017, 9 years ago |
Design
| Product type | Ultrabook |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Country of origin | China |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-6820HQ |
| Processor frequency | 2,7 GHz |
| Processor generation | 6th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3,6 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-6800 Mobile series |
| Processor codename | Skylake |
| Bus type | DMI3 |
| FSB Parity | No |
| Stepping | R0 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
| ECC supported by processor | No |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® M1000M |
| On-board graphics card model | Intel® HD Graphics 530 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Maximum on-board graphics card memory | 1,7 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x191B |
Audio
| Audio system | Bang & Olufsen |
|---|---|
| Number of built-in speakers | 2 |
| Speakers manufacturer | Bang & Olufsen |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 3 ports quantity | 2 |
| Headphone outputs | 0 |
| S/PDIF out port | No |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Docking connector | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
Performance
| Motherboard chipset | Intel CM236 |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard layout | AZERTY |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
Software
| Operating system installed | Windows 7 Professional |
|---|---|
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 10 Pro |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | No |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| Processor code | SR2FU |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Dual Display Capable Technology | No |
| Intel FDI Technology | No |
| Intel Rapid Storage Technology | No |
| Intel Fast Memory Access | No |
| Processor ARK ID | 88970 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 64 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| AC adapter power | 150 W |
|---|---|
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 2 kg |
|---|---|
| Width | 375 mm |
| Depth | 255 mm |
| Height | 18 mm |
Frequently asked questions
Is the HP ZBook Studio G3 T7W04EA#UUG#*KIT2* good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro M1000M. Its card's page shows what level it handles current games at.
What is the screen of the HP ZBook Studio G3 T7W04EA#UUG#*KIT2* like?
It carries a 15.6" 3840x2160 IPS display.
Which processor and graphics card does the HP ZBook Studio G3 T7W04EA#UUG#*KIT2* have?
It runs on the Intel Core i7 i7-6820HQ processor with the NVIDIA Quadro M1000M graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the HP ZBook Studio G3 T7W04EA#UUG#*KIT2* be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 16GB).
Which operating system does the HP ZBook Studio G3 T7W04EA#UUG#*KIT2* come with?
It comes with Windows 7 Professional preinstalled.
Which ports does the HP ZBook Studio G3 T7W04EA#UUG#*KIT2* have?
According to its spec sheet: 2 × Thunderbolt 3, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the HP ZBook Studio G3 T7W04EA#UUG#*KIT2* have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the HP ZBook Studio G3 T7W04EA#UUG#*KIT2* have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the HP ZBook Studio G3 T7W04EA#UUG#*KIT2* weigh?
It weighs 2 kg, a normal weight for its size: easy enough to move around.
When was the HP ZBook Studio G3 T7W04EA#UUG#*KIT2* released?
Its release date is March 2017, 9 years ago.
