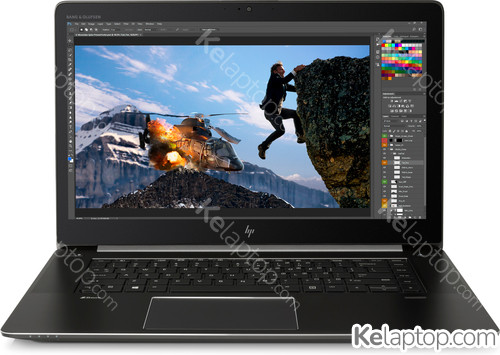

HP ZBook G4
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-7820HQ 2,9GHz |
|---|---|
| Screen | 15.6" 3840x2160 IPS |
| Hard drive | 256GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA Quadro M1200 4GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of HP ZBook G4
| Reference / Part Number | 2BF17US |
|---|---|
| Release date | February 2019, 7 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Country of origin | China |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Touch technology | Multi-touch |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-7820HQ |
| Processor frequency | 2,9 GHz |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor boost frequency | 3,9 GHz |
| Processor threads | 8 |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-7800 Mobile Series |
| Processor codename | Kaby Lake |
| Bus type | DMI3 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8,2x4,2x8 |
Memory
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® M1200 |
| On-board graphics card model | Intel® HD Graphics 630 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591B |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR5 |
Audio
| Audio system | Bang & Olufsen |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera signal format | 720p |
| Front camera HD type | HD |
Network
| Mobile network connection | Yes |
|---|---|
| Ethernet LAN | Yes |
| Bluetooth | Yes |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel HD Graphics | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 97496 |
| Conflict-Free processor | Yes |
Brand-specific features
| HP segment | Business |
|---|
Power
| AC adapter power | 150 W |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 2,09 kg |
|---|---|
| Width | 375 mm |
| Depth | 255 mm |
| Height | 18 mm |
Frequently asked questions
Is the HP ZBook G4 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro M1200. Its card's page shows what level it handles current games at.
What is the screen of the HP ZBook G4 like?
It carries a 15.6" 3840x2160 IPS display.
Which processor and graphics card does the HP ZBook G4 have?
It runs on the Intel Core i7 i7-7820HQ processor with the NVIDIA Quadro M1200 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the HP ZBook G4 be upgraded?
Yes: it has 2 memory slots.
Which operating system does the HP ZBook G4 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the HP ZBook G4 have?
According to its spec sheet: 2 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the HP ZBook G4 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the HP ZBook G4 have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the HP ZBook G4 weigh?
It weighs 2,09 kg, a normal weight for its size: easy enough to move around.
When was the HP ZBook G4 released?
Its release date is February 2019, 7 years ago.
