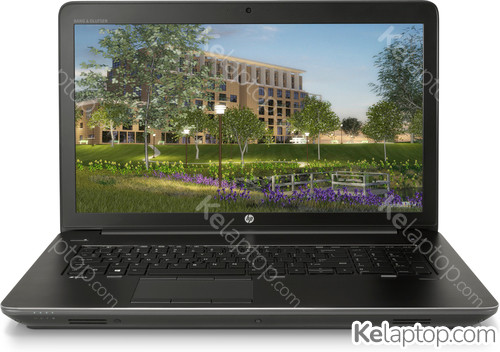

HP ZBook 17 G4 2VM86UTR
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-7700HQ 2,8GHz |
|---|---|
| Screen | 17.3" 1920x1080 |
| Hard drive | 1,25TB HDD+SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | Intel HD Graphics 630 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of HP ZBook 17 G4 2VM86UTR
| Reference / Part Number | 2VM86UTR |
|---|---|
| Release date | December 2018, 7 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Refurbished | Yes |
| Country of origin | China |
Image gallery
Screen
| Display diagonal | 43,9 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Dual-screen | No |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-7700HQ |
| Processor frequency | 2,8 GHz |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3,8 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-7700 Mobile Series |
| Processor codename | Kaby Lake |
| Bus type | DMI3 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8,2x4,2x8 |
| ECC supported by processor | No |
Memory
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Memory form factor | SO-DIMM |
| Memory slots | 4x SO-DIMM |
Storage
| Total storage capacity | 1,25 TB |
|---|---|
| Storage media | HDD+SSD |
| Optical drive type | No |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| On-board graphics card model | Intel® HD Graphics 630 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591B |
Audio
| Audio system | Bang & Olufsen |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Wi-Fi | Yes |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 97185 |
| Conflict-Free processor | Yes |
Brand-specific features
| HP JumpStart | Yes |
|---|---|
| HP speaker type | HP Dual Speakers |
| HP ePrint | Yes |
| HP Recovery Manager | Yes |
| HP Support Assistant | Yes |
| HP Smart AC Adapter | Yes |
| HP Software provided | HP Performance Advisor, HP Remote Graphics Software (HP RGS), HP Velocity, HP Client Security Suite Gen3,JetAdvantage,, HP WorkWise (requires Bluetooth), HP LAN-WLAN Protection, HP Hotkey Support,HP Noise Cancellation, Buy Office, Bing Search, Skype |
| HP segment | Business |
Battery
| Battery capacity | 96 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 6 |
Power
| AC adapter power | 200 W |
|---|
Weight & dimensions
| Weight | 3,14 kg |
|---|---|
| Width | 420 mm |
| Depth | 280 mm |
| Height | 33 mm |
Packaging content
| AC adapter included | Yes |
|---|
Other features
| 3D | No |
|---|
Frequently asked questions
Is the HP ZBook 17 G4 2VM86UTR good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 630. Its card's page shows what level it handles current games at.
What is the screen of the HP ZBook 17 G4 2VM86UTR like?
It carries a 17.3" 1920x1080 display.
Which processor and graphics card does the HP ZBook 17 G4 2VM86UTR have?
It runs on the Intel Core i7 i7-7700HQ processor with the Intel HD Graphics 630 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the HP ZBook 17 G4 2VM86UTR be upgraded?
Yes: it has 4 memory slots.
Which operating system does the HP ZBook 17 G4 2VM86UTR come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the HP ZBook 17 G4 2VM86UTR have?
According to its spec sheet: 2 × USB-C, 4 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the HP ZBook 17 G4 2VM86UTR have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the HP ZBook 17 G4 2VM86UTR have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the HP ZBook 17 G4 2VM86UTR weigh?
It weighs 3,14 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the HP ZBook 17 G4 2VM86UTR released?
Its release date is December 2018, 7 years ago.
