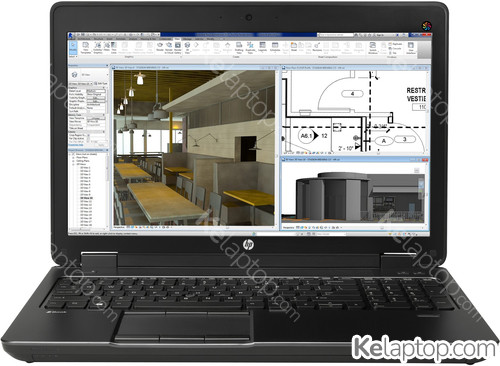

HP ZBook 15 G2 M4R63EAR
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-4810MQ 2,8GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS |
| Hard drive | 256GB SSD |
| RAM | 8GB DDR3L-SDRAM |
| Operating system | Windows 7 Professional |
| Graphics card | NVIDIA Quadro K2100M 2GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
Full specifications of HP ZBook 15 G2 M4R63EAR
| Reference / Part Number | M4R63EAR |
|---|---|
| Also sold as | M4R63EA-R-RENEW |
| Release date | February 2017, 9 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Country of origin | China |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-4810MQ |
| Processor frequency | 2,8 GHz |
| Generación del procesador | Intel Core i7-4xxx |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3,8 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-4800 Mobile series |
| Processor codename | Haswell |
| Bus type | DMI2 |
| Stepping | C0 |
| Thermal Design Power (TDP) | 47 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 4x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | DVD Super Multi DL |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® K2100M |
| On-board graphics card model | Intel® HD Graphics 4600 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 400 MHz |
| On-board graphics card dynamic frequency (max) | 1300 MHz |
| Maximum on-board graphics card memory | 1,74 GB |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card ID | 0x416 |
Audio
| Audio system | DTS Studio Sound |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 1 |
| Headphone outputs | 0 |
| S/PDIF out port | No |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
| ExpressCard slot | Yes |
| SmartCard slot | Yes |
Performance
| Motherboard chipset | Intel® QM87 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 7 Professional |
|---|---|
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 10 Pro |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel QuickPath Interconnect | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 37.5 x 37.5 x 4.7 mm |
| Supported instruction sets | AVX 2.0 |
| Processor code | SR15K |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel FDI Technology | Yes |
| Processor ARK ID | 78937 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 75 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 8 |
Power
| AC adapter power | 150 W |
|---|---|
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|
Sustainability
| Sustainability certificates | EPEAT Silver,ENERGY STAR |
|---|
Weight & dimensions
| Weight | 6.2 lbs (2,82 kg) |
|---|---|
| Width | 15 " (381,5 mm) |
| Depth | 10.1 " (257 mm) |
| Height | 1.2 " (30,5 mm) |
Frequently asked questions
Is the HP ZBook 15 G2 M4R63EAR good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro K2100M. Its card's page shows what level it handles current games at.
What is the screen of the HP ZBook 15 G2 M4R63EAR like?
It carries a 15.6" 1920x1080 IPS display.
Which processor and graphics card does the HP ZBook 15 G2 M4R63EAR have?
It runs on the Intel Core i7 i7-4810MQ processor with the NVIDIA Quadro K2100M graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the HP ZBook 15 G2 M4R63EAR be upgraded?
Yes: it has 4 memory slots and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the HP ZBook 15 G2 M4R63EAR come with?
It comes with Windows 7 Professional preinstalled.
Which ports does the HP ZBook 15 G2 M4R63EAR have?
According to its spec sheet: 3 × USB-A, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the HP ZBook 15 G2 M4R63EAR have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the HP ZBook 15 G2 M4R63EAR have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the HP ZBook 15 G2 M4R63EAR weigh?
It weighs 2,82 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the HP ZBook 15 G2 M4R63EAR released?
Its release date is February 2017, 9 years ago.
