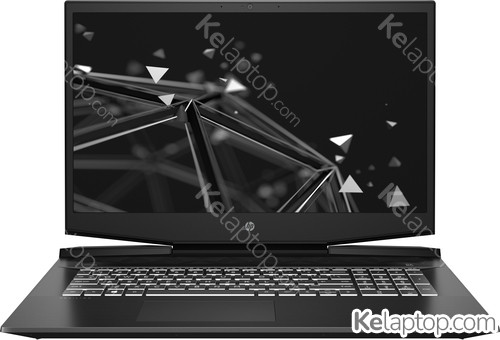

HP Pavilion Gaming 17-cd0102nc
Specs
Prices
Main specs
| Processor | Intel Core i5-9300H 2,4GHz |
|---|---|
| Screen | 17.3" 1920x1080 IPS 144Hz 300 nits |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce GTX 1660 Ti 6GB GDDR6 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of HP Pavilion Gaming 17-cd0102nc
| Reference / Part Number | 1X2L1EA |
|---|---|
| Release date | July 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Country of origin | China |
Image gallery
Screen
| Display diagonal | 43,9 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| Panel type | IPS |
| HD type | Full HD |
| Aspect ratio | 16:9 |
| LED backlight | Yes |
| Display brightness | 300 cd/m² |
| Maximum refresh rate | 144 Hz |
Processor
| Processor family | 9th gen Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-9300H |
| Processor frequency | 2,4 GHz |
| Processor cores | 4 |
| Processor boost frequency | 4,1 GHz |
| Processor threads | 8 |
| System bus rate | 8 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
Memory
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Card reader integrated | Yes |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1660 Ti |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
Audio
| Audio system | Bang & Olufsen |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
Network
| Bluetooth | Yes |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth version | 5.0 |
| Miracast | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|---|
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 2 |
Performance
| Accelerometer | Yes |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard backlit colour | White |
| Island-style keyboard | Yes |
| Full-size keyboard | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
| Pre-installed software | Dropbox; Netflix |
| Trial software | McAfee LiveSafe, Microsoft Office 365 |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 191075 |
Brand-specific features
| HP Audio Boost | Yes |
|---|---|
| HP Audio Boost generation | Gen 1 |
| HP speaker type | HP Dual Speakers |
| HP Smart AC Adapter | Yes |
| HP front camera | HP Wide Vision HD |
| HP segment | Home |
Battery
| Battery capacity | 52,5 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 3 |
| Fast charging | Yes |
| Fast charging time (50%) | 45 min |
| Battery weight | 215 g |
Power
| AC adapter power | 200 W |
|---|
Aprobaciones reguladoras
| Conformidad EPEAT | EPEAT Silver |
|---|---|
| Certificado Energy Star | Yes |
Weight & dimensions
| Weight | 2,74 kg |
|---|---|
| Width | 405 mm |
| Depth | 282 mm |
| Height | 25 mm |
Packaging data
| Package width | 69 mm |
|---|---|
| Package depth | 345 mm |
| Package height | 598 mm |
| Package weight | 4 kg |
Frequently asked questions
Is the HP Pavilion Gaming 17-cd0102nc good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce GTX 1660 Ti. Its card's page shows what level it handles current games at.
What is the screen of the HP Pavilion Gaming 17-cd0102nc like?
It carries a 17.3" 1920x1080 IPS 144Hz 300 nits display.
Which processor and graphics card does the HP Pavilion Gaming 17-cd0102nc have?
It runs on the Intel Core i5-9300H processor with the NVIDIA GeForce GTX 1660 Ti graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the HP Pavilion Gaming 17-cd0102nc come with?
It comes with Windows 10 Home preinstalled.
Which ports does the HP Pavilion Gaming 17-cd0102nc have?
According to its spec sheet: 1 × USB-C, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the HP Pavilion Gaming 17-cd0102nc have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the HP Pavilion Gaming 17-cd0102nc have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the HP Pavilion Gaming 17-cd0102nc weigh?
It weighs 2,74 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the HP Pavilion Gaming 17-cd0102nc released?
Its release date is July 2020, 6 years ago.
