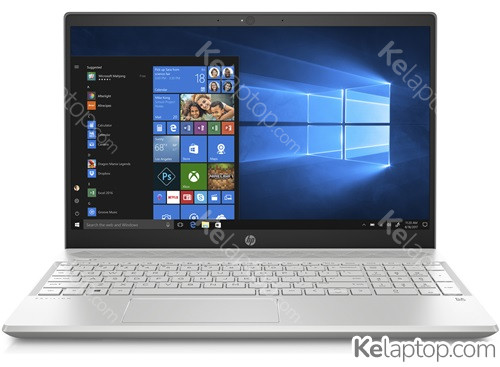

HP Pavilion 15 15-cs1560nd
Specs
Prices
Main specs
| Processor | Intel Core i7-8565U 1,8GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS |
| Hard drive | 512GB SSD |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce GTX 1050 Ti 4GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
Full specifications of HP Pavilion 15 15-cs1560nd
| Reference / Part Number | 4XD58EA#ABH |
|---|---|
| Release date | November 2018, 7 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Silver |
| Form factor | Clamshell |
| Country of origin | China |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8565U |
| Processor frequency | 1,8 GHz |
| Generación del procesador | Intel Core i7-8xxx |
| Processor boost frequency | 4,6 GHz |
| Processor threads | 8 |
| System bus rate | 4 GT/s |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Whiskey Lake |
| Bus type | OPI |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4,2x2 |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Card reader integrated | Yes |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1050 Ti |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR5 |
Audio
| Audio system | B&O PLAY |
|---|---|
| Number of built-in speakers | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 2 |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Keyboard layout | QWERTY |
| Keyboard backlit | Yes |
| Island-style keyboard | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 1.8 " (46x24 mm) |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 149091 |
Battery
| Battery capacity | 68 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| AC adapter power | 120 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
Sustainability
| Sustainability certificates | EPEAT Silver |
|---|
Weight & dimensions
| Weight | 4.2 lbs (1,89 kg) |
|---|---|
| Width | 14.2 " (361,6 mm) |
| Depth | 9.5 " (241,6 mm) |
| Height | 0.7 " (17,9 mm) |
Frequently asked questions
Is the HP Pavilion 15 15-cs1560nd good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce GTX 1050 Ti. Its card's page shows what level it handles current games at.
What is the screen of the HP Pavilion 15 15-cs1560nd like?
It carries a 15.6" 1920x1080 IPS display.
Which processor and graphics card does the HP Pavilion 15 15-cs1560nd have?
It runs on the Intel Core i7-8565U processor with the NVIDIA GeForce GTX 1050 Ti graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the HP Pavilion 15 15-cs1560nd come with?
It comes with Windows 10 Home preinstalled.
Which ports does the HP Pavilion 15 15-cs1560nd have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the HP Pavilion 15 15-cs1560nd have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the HP Pavilion 15 15-cs1560nd have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the HP Pavilion 15 15-cs1560nd weigh?
It weighs 1,89 kg, a normal weight for its size: easy enough to move around.
When was the HP Pavilion 15 15-cs1560nd released?
Its release date is November 2018, 7 years ago.
