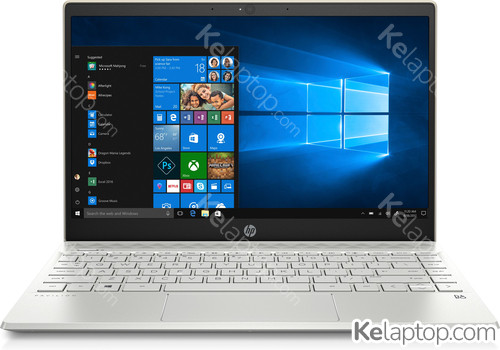

HP Pavilion 13 13-an1069tu
Specs
Prices
Main specs
| Processor | Intel Core i5-1035G1 1GHz |
|---|---|
| Screen | 13.3" 1920x1080 IPS 300 nits 72% NTSC |
| Hard drive | 512GB SSD M.2 |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From HP
Full specifications of HP Pavilion 13 13-an1069tu
| Reference / Part Number | 3S162PA |
|---|---|
| Release date | March 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Gold |
| Form factor | Clamshell |
| Country of origin | China |
Image gallery
Screen
| Display diagonal | 33,8 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display bezel technology | Micro-Edge |
| Display brightness | 300 cd/m² |
| Display diagonal (metric) | 33,8 cm |
| RGB colour space | NTSC |
| Colour gamut | 72 % |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-1035G1 |
| Processor frequency | 1 GHz |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3,6 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 6 MB |
| Processor cache type | L3 |
| Processor socket | BGA 1526 |
| Processor lithography | 10 nm |
| Processor operating modes | 64-bit |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 1,2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 13 W |
| Configurable TDP-down frequency | 0,7 GHz |
| Tjunction | 100 °C |
| PCI Express slots version | 3.0 |
Memory
| Internal memory | 8 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | On-board |
| Memory slots | 1x SO-DIMM |
| ECC | No |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x8A56 |
Audio
| Audio system | B&O PLAY |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Antenna type | 1x1 |
| WLAN controller model | Intel Dual Band Wireless-AC 9461 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Miracast | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 0 |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Island-style keyboard | Yes |
| Full-size keyboard | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
| Pre-installed software | Dropbox |
| Trial software | McAfee LiveSafe, Microsoft Office 365 |
Processor special features
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
|---|---|
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 50 x 25 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0,AVX-512 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 196603 |
Brand-specific features
| HP speaker type | HP Dual Speakers |
|---|---|
| HP Imagepad | Yes |
| HP front camera | HP Wide Vision HD |
| HP segment | Home |
Battery
| Battery capacity | 37,7 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 2 |
| Battery weight | 164 g |
Power
| AC adapter power | 65 W |
|---|---|
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
Sustainability
| Sustainability certificates | EPEAT Silver,ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,3 kg |
|---|---|
| Width | 311 mm |
| Depth | 211 mm |
| Height | 15,4 mm |
Packaging data
| Package width | 520 mm |
|---|---|
| Package depth | 305 mm |
| Package height | 69 mm |
| Package weight | 2,3 kg |
Frequently asked questions
Is the HP Pavilion 13 13-an1069tu good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics. Its card's page shows what level it handles current games at.
What is the screen of the HP Pavilion 13 13-an1069tu like?
It carries a 13.3" 1920x1080 IPS 300 nits 72% NTSC display.
Which processor and graphics card does the HP Pavilion 13 13-an1069tu have?
It runs on the Intel Core i5-1035G1 processor with the Intel UHD Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the HP Pavilion 13 13-an1069tu be upgraded?
Yes: it has 1 memory slot.
Which operating system does the HP Pavilion 13 13-an1069tu come with?
It comes with Windows 10 Home preinstalled.
Which ports does the HP Pavilion 13 13-an1069tu have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the HP Pavilion 13 13-an1069tu have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the HP Pavilion 13 13-an1069tu have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the HP Pavilion 13 13-an1069tu weigh?
It weighs 1,3 kg: one of the light ones, easy to carry every day.
When was the HP Pavilion 13 13-an1069tu released?
Its release date is March 2020, 6 years ago.
