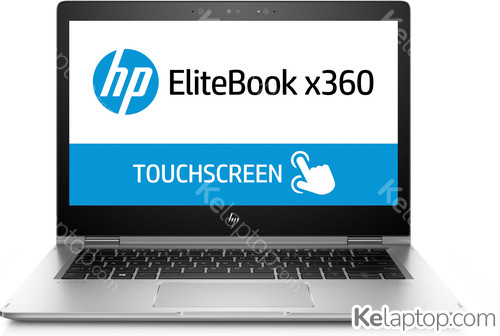

HP EliteBook x360 1030 G2 Z2W74EA
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-7600U 2,8GHz |
|---|---|
| Screen | 13.3" 1920x1080 |
| Hard drive | 256GB SSD |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | Intel HD Graphics 620 |
Alternatives with equal or higher power at a similar or lower price
From HP
From other brands
Full specifications of HP EliteBook x360 1030 G2 Z2W74EA
| Reference / Part Number | Z2W74EA |
|---|---|
| Release date | January 2017, 9 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product colour | Silver |
| Form factor | Convertible (Folder) |
| Market positioning | Business |
| Country of origin | China |
Image gallery
Screen
| Display diagonal | 33,8 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-7600U |
| Processor frequency | 2,8 GHz |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3,9 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-7600 Mobile Series |
| Processor codename | Kaby Lake |
| Bus type | OPI |
| Stepping | H0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2,9 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 7,5 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2,1x4,2x2,2x1,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 620 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5916 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera signal format | 720p |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n),802.11a,Wi-Fi 5 (802.11ac) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 0 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Clickpad |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR33Z |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 97466 |
| Conflict-Free processor | Yes |
Brand-specific features
| HP JumpStart | Yes |
|---|---|
| HP ePrint | Yes |
| HP Support Assistant | Yes |
| HP Security tools | HP Secure Erase, HP Client Security, HP Security Manager |
| HP Management tools | HP Driver Packs, HP SoftPaq Download Manager, HP System Software Manager, HP BIOS Config Utility, HP Client Catalog, HP MIK |
| HP Software provided | HP BIOSphere, HP SureStart, HP Password Manager, HP Spare Key, HP Device Access Manager, HP DriveLock, HP Hotkey Support, HP Noise Cancellation; HP Image Assistant |
| HP segment | Business |
Battery
| Battery capacity | 57 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Power
| AC adapter power | 65 W |
|---|
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | Power on |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,28 kg |
|---|---|
| Width | 316,9 mm |
| Depth | 218,5 mm |
| Height | 14,9 mm |
Logistics data
| Harmonized System (HS) code | 84713000 |
|---|
Other features
| 3D | No |
|---|---|
| Intel segment tagging | Enterprise |
| SIM card support | Yes |
Frequently asked questions
Is the HP EliteBook x360 1030 G2 Z2W74EA good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 620. Its card's page shows what level it handles current games at.
What is the screen of the HP EliteBook x360 1030 G2 Z2W74EA like?
It carries a 13.3" 1920x1080 display.
Which processor and graphics card does the HP EliteBook x360 1030 G2 Z2W74EA have?
It runs on the Intel Core i7 i7-7600U processor with the Intel HD Graphics 620 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the HP EliteBook x360 1030 G2 Z2W74EA come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the HP EliteBook x360 1030 G2 Z2W74EA have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the HP EliteBook x360 1030 G2 Z2W74EA have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the HP EliteBook x360 1030 G2 Z2W74EA have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the HP EliteBook x360 1030 G2 Z2W74EA weigh?
It weighs 1,28 kg: one of the light ones, easy to carry every day.
When was the HP EliteBook x360 1030 G2 Z2W74EA released?
Its release date is January 2017, 9 years ago.
