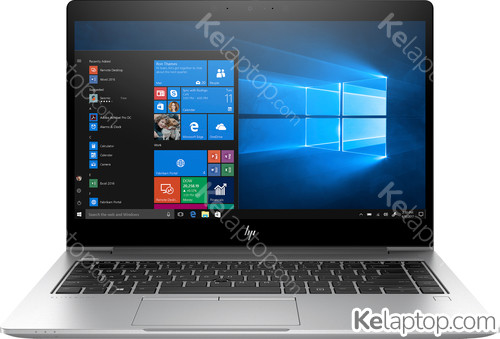

HP EliteBook 800 840 G6 7NV02PA-E2333
Specs
Prices
Main specs
| Processor | Intel Core i5-8365U 1,6GHz |
|---|---|
| Screen | 14" 1920x1080 IPS 250 nits |
| Hard drive | 256GB SSD M.2 |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | Intel UHD Graphics 620 |
Alternatives with equal or higher power at a similar or lower price
From HP
From other brands
Full specifications of HP EliteBook 800 840 G6 7NV02PA-E2333
| Reference / Part Number | 7NV02PA-E2333 |
|---|---|
| Also sold as | 7NV01PA, 7NV01PA-PORTABLE, 7NV01PA-P224, 7NV01PA-Z24NF, 7NV02PA-USBCDOCK, 7NV01PA-USBCDOCK, 7NV02PA-LUGGAGE, 7NV01PA-LUGGAGE, 7NV02PA-E223, 7NV01PA-E223, 7NV02PA-8GBMEMORY, 7NV01PA-8GBMEMORY, 7NV01PA-TRAVELPACK1, 7NV02PA-TRAVELPACK1, 7NV01PA-E2333, 7NV01PA-MONITORDOCKING, 7NV01PA-PRESENTER, 7NV01PA-E2733, 7NV02PA-E2733, 7NV02PA-MONITORDOCKING, 7NV01PA-SJ2, 7NV02PA-E243, 7NV01PA-BTSPEAKER, 7NV02PA-BACKPACK, 7NV02PA-CASE, 7NV01PA-GO410, 7NV01PA-POWERBANK, 7NV01PA-E243, 7NV01PA-SLIMDOCK, 7NV01PA-P22H, 7NV01PA-BACKPACK, 7NV01PA-BRIEF, 7NV01PA-CASE, 7NV01PA-MSOFFICE2019, 7NV01PA-PRODISPLAY, 7NV01PA-ARUBA2, 7NV01PA-DOUBLEUPP244, 7NV01PA-DOUBLEUPE243, 7NV02PA-DOUBLEUPE243, 7NV02PA-QNAPNAS, 7NV02PA-POWERBACKUP, 7NV02PA-HBOFFICE19, 7NV02PA-VELOP, 7NV02PA-EXTHDD, 7NV02PA-AIRPODPRO, 7NV02PA-M15W2, 7NV02PA-NEBULA1, 7NV02PA-E243I, 7NV02PA-NAS4TBHDD, 7NV02PA-P22V, 7NV02PA-N246V, 7NV02PA-E27Q, 7NV02PA-DOUBLEUPN246V, 7NV02PA-DOUBLEUPP22V, 7NV02PA-DOUBLEUPE233, 7NV02PA-SLIMDOCK, 7NV01PA-P244, 7NV01PA-27W |
| Release date | May 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Silver |
| Form factor | Clamshell |
| Market positioning | Business |
| Country of origin | China |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Display diagonal (metric) | 35,6 cm |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-8365U |
| Processor frequency | 1,6 GHz |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4,1 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Whiskey Lake |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 1,9 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4,2x2,1x2+2x1,4x1 |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | NVMe,PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 620 |
| On-board GPU manufacturer | Intel |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
Audio
| Audio system | Bang & Olufsen |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Number of microphones | 3 |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4b |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Clickpad |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 46x24 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 193555 |
Battery
| Battery capacity | 50 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
Power
| AC adapter power | 65 W |
|---|---|
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | Yes |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,48 kg |
|---|---|
| Width | 326 mm |
| Depth | 234,3 mm |
| Height | 17,9 mm |
Frequently asked questions
Is the HP EliteBook 800 840 G6 7NV02PA-E2333 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics 620. Its card's page shows what level it handles current games at.
What is the screen of the HP EliteBook 800 840 G6 7NV02PA-E2333 like?
It carries a 14" 1920x1080 IPS 250 nits display.
Which processor and graphics card does the HP EliteBook 800 840 G6 7NV02PA-E2333 have?
It runs on the Intel Core i5-8365U processor with the Intel UHD Graphics 620 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the HP EliteBook 800 840 G6 7NV02PA-E2333 be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the HP EliteBook 800 840 G6 7NV02PA-E2333 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the HP EliteBook 800 840 G6 7NV02PA-E2333 have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), headphone jack (3.5 mm).
Does the HP EliteBook 800 840 G6 7NV02PA-E2333 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the HP EliteBook 800 840 G6 7NV02PA-E2333 weigh?
It weighs 1,48 kg: one of the light ones, easy to carry every day.
When was the HP EliteBook 800 840 G6 7NV02PA-E2333 released?
Its release date is May 2020, 6 years ago.
