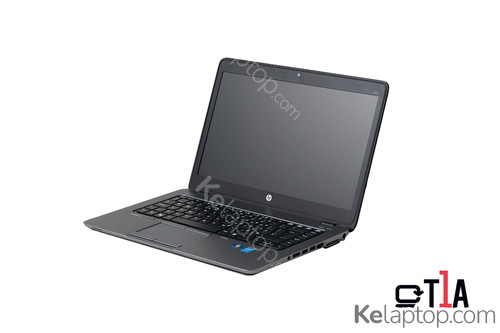

HP EliteBook 800 840 G1 Grade T1A
Specs
Prices
Main specs
| Processor | Intel Core i5 i5-4300U 1,9GHz |
|---|---|
| Screen | 14" 1366x768 |
| Hard drive | 240GB SSD |
| RAM | 8GB DDR3L-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | Intel HD Graphics 4400 |
Alternatives with equal or higher power at a similar or lower price
From HP
Full specifications of HP EliteBook 800 840 G1 Grade T1A
| Reference / Part Number | L-EB840G1-SCA-T023 |
|---|---|
| Release date | May 2019, 7 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
| Refurbished | Yes |
| Country of origin | China |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-4300U |
| Processor frequency | 1,9 GHz |
| Processor generation | 4th gen Intel® Core™ i5 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2,9 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1168 |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-4300 Mobile series |
| Processor codename | Haswell |
| Bus type | DMI2 |
| Stepping | D0 |
| Thermal Design Power (TDP) | 15 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 4x1,2x4 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 4 GB |
Storage
| Total storage capacity | 240 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 240 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 240 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 4400 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 1,74 GB |
| On-board graphics card ID | 0xA16 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera signal format | 720p |
Network
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 7265 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel Smart Connect Technology | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 40 x 24 x 1.5 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR1ED |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| UART | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Smart Connect Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel ME Firmware Version | 9.5 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel FDI Technology | No |
| Intel Rapid Storage Technology | Yes |
| Processor ARK ID | 76308 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 23,5 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 8 h |
Power
| AC adapter power | 65 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 120/230 V |
Security
| Cable lock slot | Yes |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Weight | 1,67 kg |
|---|---|
| Width | 337,8 mm |
| Depth | 236,2 mm |
| Height | 20,3 mm |
Other features
| AC adapter included | Yes |
|---|
Frequently asked questions
Is the HP EliteBook 800 840 G1 Grade T1A good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 4400. Its card's page shows what level it handles current games at.
How long does the battery of the HP EliteBook 800 840 G1 Grade T1A last?
The manufacturer declares up to 8 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the HP EliteBook 800 840 G1 Grade T1A like?
It carries a 14" 1366x768 display.
Which processor and graphics card does the HP EliteBook 800 840 G1 Grade T1A have?
It runs on the Intel Core i5 i5-4300U processor with the Intel HD Graphics 4400 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the HP EliteBook 800 840 G1 Grade T1A come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the HP EliteBook 800 840 G1 Grade T1A have?
According to its spec sheet: 4 × USB-A, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the HP EliteBook 800 840 G1 Grade T1A have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the HP EliteBook 800 840 G1 Grade T1A weigh?
It weighs 1,67 kg, a normal weight for its size: easy enough to move around.
When was the HP EliteBook 800 840 G1 Grade T1A released?
Its release date is May 2019, 7 years ago.
