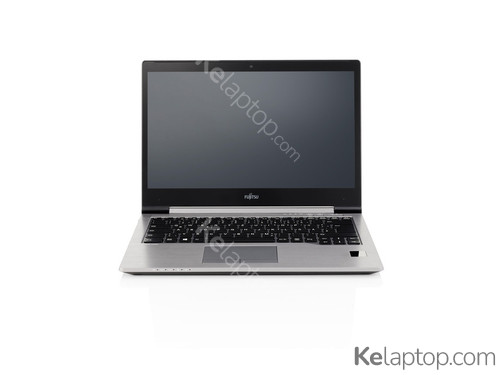

Fujitsu LIFEBOOK U U745 LKN:U7450M0004RU
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-5600U 2,6GHz |
|---|---|
| Screen | 14" 1600x900 250 nits |
| Hard drive | 256GB SSD |
| RAM | 12GB DDR3L-SDRAM |
| Operating system | Windows 7 Professional |
| Graphics card | Intel HD Graphics 5500 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of Fujitsu LIFEBOOK U U745 LKN:U7450M0004RU
| Reference / Part Number | LKN:U7450M0004RU |
|---|---|
| Release date | February 2017, 9 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black,Silver |
| Form factor | Clamshell |
| Housing material | Aluminium,Magnesium |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1600 x 900 pixels |
| Touchscreen | Yes |
| HD type | HD+ |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 400:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-5600U |
| Processor frequency | 2,6 GHz |
| Processor generation | 5th gen Intel® Core™ i7 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3,2 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 4 MB |
| Processor cache type | L3 |
| Processor socket | BGA 1168 |
| Processor lithography | 14 nm |
| Processor operating modes | 32-bit,64-bit |
| Processor series | Intel Core i7-5600 Mobile series |
| Processor codename | Broadwell |
| Bus type | DMI2 |
| Stepping | F0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-down | 7,5 W |
| Configurable TDP-down frequency | 0,6 GHz |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 4x1,2x4 |
Memory
| Internal memory | 12 GB |
|---|---|
| Maximum internal memory | 12 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory form factor | On-board + SO-DIMM |
| Memory layout (slots x size) | 1 x 4 + 1 x 8 GB |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | SATA III |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 5500 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 950 MHz |
| Maximum on-board graphics card memory | 16 GB |
| On-board graphics card DirectX version | 11.2 |
| On-board graphics card ID | 0x1616 |
Audio
| Audio chip | Realtek ALC3233 |
|---|---|
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Wi-Fi | Yes |
|---|---|
| Wi-Fi standards | 802.11a,802.11b,802.11g |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Micro-USB 2.0 ports quantity | 0 |
| Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Docking connector | Yes |
| SmartCard slot | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Spill-resistant keyboard | Yes |
| Keyboard number of keys | 85 |
| Windows keys | Yes |
Software
| Operating system installed | Windows 7 Professional |
|---|---|
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 8.1 Pro |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 40 x 24 x 1.3 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR23V |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Processor ARK ID | 85215 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 45 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
| Battery life (max) | 9,5 h |
| Battery recharge time | 2 h |
Power
| AC adapter frequency | 50 - 60 Hz |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,HDD,Supervisor,User |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 85 % |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, CB, WEEE, Microsoft Operating Systems (HCT / HCL entry / WHQL) |
Sustainability
| Sustainability certificates | EPEAT Gold,ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,7 kg |
|---|---|
| Width | 332 mm |
| Depth | 234 mm |
| Height | 19 mm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Warranty card | Yes |
Other features
| Maximum internal memory (64-bit) | 12 GB |
|---|
Frequently asked questions
Is the Fujitsu LIFEBOOK U U745 LKN:U7450M0004RU good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 5500. Its card's page shows what level it handles current games at.
How long does the battery of the Fujitsu LIFEBOOK U U745 LKN:U7450M0004RU last?
The manufacturer declares up to 9,5 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Fujitsu LIFEBOOK U U745 LKN:U7450M0004RU like?
It carries a 14" 1600x900 250 nits display.
Which processor and graphics card does the Fujitsu LIFEBOOK U U745 LKN:U7450M0004RU have?
It runs on the Intel Core i7 i7-5600U processor with the Intel HD Graphics 5500 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Fujitsu LIFEBOOK U U745 LKN:U7450M0004RU be upgraded?
It has 1 memory slot, but it already ships with the maximum it takes (12 GB).
Which operating system does the Fujitsu LIFEBOOK U U745 LKN:U7450M0004RU come with?
It comes with Windows 7 Professional preinstalled.
Which ports does the Fujitsu LIFEBOOK U U745 LKN:U7450M0004RU have?
According to its spec sheet: 3 × USB-A, Ethernet (RJ-45), card reader.
Does the Fujitsu LIFEBOOK U U745 LKN:U7450M0004RU have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
What material is the Fujitsu LIFEBOOK U U745 LKN:U7450M0004RU made of?
Its housing is made of Aluminium,Magnesium.
How much does the Fujitsu LIFEBOOK U U745 LKN:U7450M0004RU weigh?
It weighs 1,7 kg, a normal weight for its size: easy enough to move around.
When was the Fujitsu LIFEBOOK U U745 LKN:U7450M0004RU released?
Its release date is February 2017, 9 years ago.
