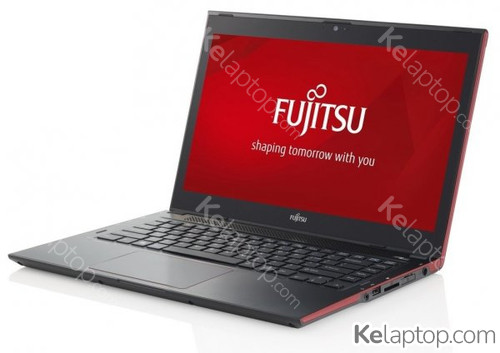

Fujitsu LIFEBOOK U U574 VFY:U5740M45ACRU
Specs
Prices
Main specs
| Processor | Intel Core i5 i5-4200U 1,6GHz |
|---|---|
| Screen | 13.3" 1366x768 220 nits |
| Hard drive | 128GB SSD 2.5" |
| RAM | 4GB DDR3-SDRAM |
| Operating system | Windows 8.1 |
| Graphics card | Intel HD Graphics 4400 |
Alternatives with equal or higher power at a similar or lower price
Full specifications of Fujitsu LIFEBOOK U U574 VFY:U5740M45ACRU
| Reference / Part Number | VFY:U5740M45ACRU |
|---|---|
| Release date | February 2017, 9 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black,Red |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 13.3 " (33,8 cm) |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | Yes |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 220 cd/m² |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-4200U |
| Processor frequency | 1,6 GHz |
| Generación del procesador | Intel Core i5-4xxx |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2,6 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1168 |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-4200 Mobile series |
| Processor codename | Haswell |
| Bus type | DMI2 |
| Stepping | C0 |
| Thermal Design Power (TDP) | 15 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x4,2x4 |
| ECC supported by processor | No |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 128 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | SATA III |
| SSD form factor | 2.5" |
| Card reader integrated | Yes |
| Compatible memory cards | MS PRO,Memory Stick (MS),SD,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 4400 |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics card memory | 1,74 GB |
| On-board graphics card ID | 0xA16 |
Audio
| Audio chip | Realtek ALC283 |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Mobile network connection | Yes |
|---|---|
| Mobile network generation | 3G |
| 3G standards | UMTS |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,802.11b,802.11g |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Micro-USB 2.0 ports quantity | 0 |
| Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Docking connector | No |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| GPS (satellite) | Yes |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 8.1 |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel Smart Connect Technology | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 40 x 24 x 1.5 mm |
| Supported instruction sets | AVX 2.0 |
| Processor code | SR170 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel Smart Connect Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel ME Firmware Version | 9.5 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel FDI Technology | No |
| Intel Rapid Storage Technology | Yes |
| Processor ARK ID | 75459 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 48,8 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
| Battery capacity | 2840 mAh |
| Battery life (max) | 11 h |
Power
| AC adapter power | 65 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,42 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,HDD,Supervisor,User |
Sustainability
| Sustainability certificates | EPEAT Silver |
|---|
Weight & dimensions
| Weight | 3.5 lbs (1,6 kg) |
|---|---|
| Width | 12.7 " (322 mm) |
| Depth | 8.9 " (225 mm) |
| Height | 0.8 " (19,5 mm) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Warranty card | Yes |
Other features
| Maximum internal memory (64-bit) | 8 GB |
|---|
Frequently asked questions
Is the Fujitsu LIFEBOOK U U574 VFY:U5740M45ACRU good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 4400. Its card's page shows what level it handles current games at.
How long does the battery of the Fujitsu LIFEBOOK U U574 VFY:U5740M45ACRU last?
The manufacturer declares up to 11 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Fujitsu LIFEBOOK U U574 VFY:U5740M45ACRU like?
It carries a 13.3" 1366x768 220 nits display.
Which processor and graphics card does the Fujitsu LIFEBOOK U U574 VFY:U5740M45ACRU have?
It runs on the Intel Core i5 i5-4200U processor with the Intel HD Graphics 4400 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Fujitsu LIFEBOOK U U574 VFY:U5740M45ACRU be upgraded?
Yes: it has 1 memory slot and takes up to 8 GB according to the manufacturer (it ships with 4GB).
Which operating system does the Fujitsu LIFEBOOK U U574 VFY:U5740M45ACRU come with?
It comes with Windows 8.1 preinstalled.
Which ports does the Fujitsu LIFEBOOK U U574 VFY:U5740M45ACRU have?
According to its spec sheet: 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the Fujitsu LIFEBOOK U U574 VFY:U5740M45ACRU have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the Fujitsu LIFEBOOK U U574 VFY:U5740M45ACRU weigh?
It weighs 1,6 kg, a normal weight for its size: easy enough to move around.
When was the Fujitsu LIFEBOOK U U574 VFY:U5740M45ACRU released?
Its release date is February 2017, 9 years ago.
