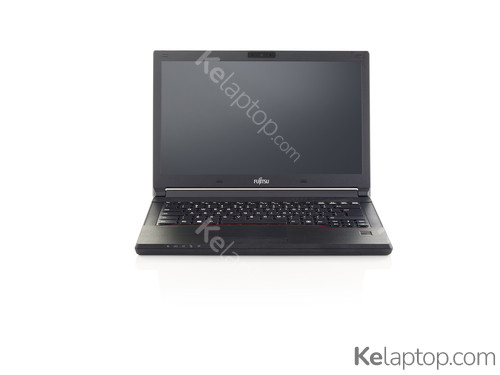

Fujitsu LIFEBOOK E E546 EDU-E546-01033
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-6500U 2,5GHz |
|---|---|
| Screen | 14" 1366x768 TN 200 nits |
| Hard drive | 256GB SSD 2.5" |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | Intel HD Graphics 520 |
Alternatives with equal or higher power at a similar or lower price
Full specifications of Fujitsu LIFEBOOK E E546 EDU-E546-01033
| Reference / Part Number | EDU-E546-01033 |
|---|---|
| Release date | July 2017, 9 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black,Red |
| Form factor | Clamshell |
| Market positioning | Business |
Image gallery
Screen
| Display diagonal | 14 " (35,6 cm) |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| Panel type | TN |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 200 cd/m² |
| Display number of colors | 16.78 million colors |
| Contrast ratio (typical) | 350:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-6500U |
| Processor frequency | 2,5 GHz |
| Generación del procesador | Intel Core i7-6xxx |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3,1 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1356 (Socket B2) |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-6500 Mobile series |
| Processor codename | Skylake |
| Bus type | OPI |
| Stepping | D1 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2,6 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 7,5 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | DVD Super Multi DL |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | SATA III |
| SSD form factor | 2.5" |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 520 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Maximum on-board graphics card memory | 1,74 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 1916 |
Audio
| Audio chip | Realtek ALC255 |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 867 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Docking connector | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Island-style keyboard | Yes |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
| Keyboard number of keys | 85 |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 7 Professional |
| Drivers included | Yes |
| Pre-installed software | Microsoft Office |
| Trial software | McAfee Internet Security and Antivirus Software |
| Bundled software | Adobe Reader, Fujitsu LIFEBOOK Application Panel, Fujitsu Display Manager, Power Saving Utility, Fujitsu Plugfree Network |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 X 24 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| Processor code | SR2EZ |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 88194 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 63 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery capacity | 5800 mAh |
| Battery life (max) | 12 h |
| Battery recharge time | 2,5 h |
| Battery charge status button | Yes |
Power
| AC adapter power | 65 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,42 A |
| AC adapter output voltage | 19 V |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,HDD,Supervisor,User |
| HDD recovery | Yes |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 20 - 85 % |
| Storage relative humidity (H-H) | 8 - 85 % |
Aprobaciones reguladoras
| Certificados de conformidad | RoHS |
|---|---|
| Certification | CE, GS, CB, BC, WEEE, HCT, HCL entry, WHQL, DEEE |
Sustainability
| Sustainability certificates | EPEAT Gold,ENERGY STAR |
|---|
Weight & dimensions
| Weight | 4.2 lbs (1,9 kg) |
|---|---|
| Width | 13.3 " (338 mm) |
| Depth | 9.1 " (231 mm) |
| Height (front) | 1 " (2,51 cm) |
| Height (rear) | 1.2 " (3,14 cm) |
Packaging content
| Manual | Yes |
|---|---|
| Warranty card | Yes |
| Power cord included | Yes |
Other features
| AC adapter included | Yes |
|---|---|
| Hot-swap battery | Yes |
| Maximum internal memory (64-bit) | 32 GB |
| Power management | Yes |
| On/off button | Yes |
| Intel segment tagging | Home Office,Professional,Small Business |
Frequently asked questions
Is the Fujitsu LIFEBOOK E E546 EDU-E546-01033 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 520. Its card's page shows what level it handles current games at.
How long does the battery of the Fujitsu LIFEBOOK E E546 EDU-E546-01033 last?
The manufacturer declares up to 12 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Fujitsu LIFEBOOK E E546 EDU-E546-01033 like?
It carries a 14" 1366x768 TN 200 nits display.
Which processor and graphics card does the Fujitsu LIFEBOOK E E546 EDU-E546-01033 have?
It runs on the Intel Core i7 i7-6500U processor with the Intel HD Graphics 520 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Fujitsu LIFEBOOK E E546 EDU-E546-01033 be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the Fujitsu LIFEBOOK E E546 EDU-E546-01033 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Fujitsu LIFEBOOK E E546 EDU-E546-01033 have?
According to its spec sheet: 3 × USB-A, Ethernet (RJ-45), card reader.
Does the Fujitsu LIFEBOOK E E546 EDU-E546-01033 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Fujitsu LIFEBOOK E E546 EDU-E546-01033 weigh?
It weighs 1,9 kg, a normal weight for its size: easy enough to move around.
When was the Fujitsu LIFEBOOK E E546 EDU-E546-01033 released?
Its release date is July 2017, 9 years ago.
