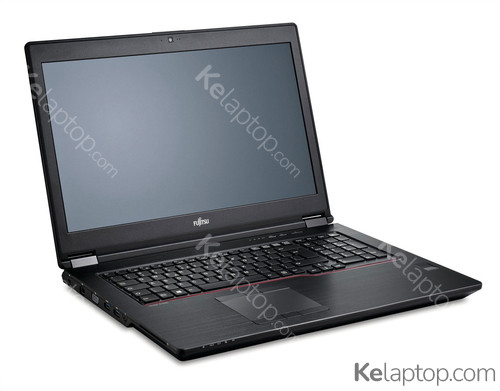

Fujitsu CELSIUS H H970 VFY:H9700WP320DE
Specs
Prices
Main specs
| Processor | Intel Xeon E3 v6 E3-1535MV6 3,1GHz |
|---|---|
| Screen | 17.3" 1920x1080 TFT 300 nits |
| Hard drive | 512GB SSD M.2 |
| RAM | 32GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA Quadro P4000 8GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of Fujitsu CELSIUS H H970 VFY:H9700WP320DE
| Reference / Part Number | VFY:H9700WP320DE |
|---|---|
| Release date | March 2017, 9 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 43,9 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | TFT |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 300 cd/m² |
Processor
| Processor family | Intel® Xeon® E3 v6 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | E3-1535MV6 |
| Processor frequency | 3,1 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4,2 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E3-1500M v6 |
| Processor codename | Kaby Lake |
| Bus type | DMI3 |
| Stepping | B0 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| ECC supported by processor | Yes |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 4x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | DVD±RW |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® P4000 |
| On-board graphics card model | Intel® HD Graphics P630 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 1,7 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591D |
| Number of discrete graphics cards installed | 1 |
Audio
| Audio chip | Realtek ALC255 |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 2 MP |
Network
| Mobile network connection | Yes |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Mobile network generation | 4G |
| 3G standards | HSPA+ |
| 4G standard | LTE |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Docking connector | No |
| SmartCard slot | Yes |
Performance
| Virtual Reality (VR) ready | Yes |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Island-style keyboard | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel HD Graphics | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR32H |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 97468 |
| Conflict-Free processor | Yes |
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Battery life (max) | 9 h |
Power
| AC adapter frequency | 50 - 60 Hz |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 13 A |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Supervisor,User |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80 % |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Width | 418 mm |
|---|---|
| Depth | 288 mm |
| Height | 30 mm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
| Power cord included | Yes |
Other features
| Maximum internal memory (64-bit) | 64 GB |
|---|
Frequently asked questions
Is the Fujitsu CELSIUS H H970 VFY:H9700WP320DE good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro P4000. Its card's page shows what level it handles current games at.
How long does the battery of the Fujitsu CELSIUS H H970 VFY:H9700WP320DE last?
The manufacturer declares up to 9 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Fujitsu CELSIUS H H970 VFY:H9700WP320DE like?
It carries a 17.3" 1920x1080 TFT 300 nits display.
Which processor and graphics card does the Fujitsu CELSIUS H H970 VFY:H9700WP320DE have?
It runs on the Intel Xeon E3 v6 E3-1535MV6 processor with the NVIDIA Quadro P4000 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Fujitsu CELSIUS H H970 VFY:H9700WP320DE be upgraded?
Yes: it has 4 memory slots and takes up to 64 GB according to the manufacturer (it ships with 32GB).
Which operating system does the Fujitsu CELSIUS H H970 VFY:H9700WP320DE come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Fujitsu CELSIUS H H970 VFY:H9700WP320DE have?
According to its spec sheet: 3 × USB-C, 3 × USB-A, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Fujitsu CELSIUS H H970 VFY:H9700WP320DE have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
When was the Fujitsu CELSIUS H H970 VFY:H9700WP320DE released?
Its release date is March 2017, 9 years ago.
