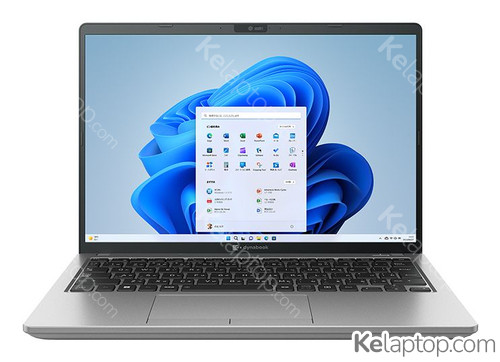

Dynabook XZ/HW W6XZHW5CAS
Specs
Prices
Main specs
| Processor | Intel Core i5-1334U 3,4GHz |
|---|---|
| Screen | 13.3" 1920x1200 TFT |
| Hard drive | 512GB SSD |
| RAM | 16GB LPDDR5-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of Dynabook XZ/HW W6XZHW5CAS
| Reference / Part Number | W6XZHW5CAS |
|---|---|
| Also sold as | W6XZHW5BAS |
| Release date | October 2024, 2 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Silver |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 33,8 cm |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | TFT |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-1334U |
| Processor frequency | 3,4 GHz |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 4,6 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4,6 GHz |
| Efficient-core Max Turbo Frequency | 3,4 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory form factor | On-board |
| Memory slots | Not available |
| Memory channels | Dual-channel |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card memory | 8 GB |
Audio
| Audio system | High Definition Audio |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 3 |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard number of keys | 86 |
| Physical layout | JIS |
| Keyboard keystroke | 2 mm |
| Keyboard key pitch | 1,9 cm |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
Battery
| Battery technology | Lithium Polymer (LiPo) |
|---|---|
| Battery life (max) | 26 h |
| Continuous video playback time (max) | 10 h |
| Removable battery | Yes |
| Battery recharge time | 2,5 h |
Power
| AC adapter frequency | 50/60 Hz |
|---|---|
| AC adapter input voltage | 100 - 240 V |
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS,HDD |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80 % |
Weight & dimensions
| Weight | 899 g |
|---|---|
| Width | 298,8 mm |
| Depth | 212 mm |
| Height (front) | 1,79 cm |
| Height (rear) | 1,89 cm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Warranty card | Yes |
Other features
| Power consumption (typical) | 6 W |
|---|---|
| Warranty period | 1 year(s) |
Frequently asked questions
Is the Dynabook XZ/HW W6XZHW5CAS good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
How long does the battery of the Dynabook XZ/HW W6XZHW5CAS last?
The manufacturer declares up to 26 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Dynabook XZ/HW W6XZHW5CAS like?
It carries a 13.3" 1920x1200 TFT display.
Which processor and graphics card does the Dynabook XZ/HW W6XZHW5CAS have?
It runs on the Intel Core i5-1334U processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Dynabook XZ/HW W6XZHW5CAS be upgraded?
No: the memory is soldered to the board and cannot be upgraded. It ships with 16GB.
Which operating system does the Dynabook XZ/HW W6XZHW5CAS come with?
It comes with Windows 11 Home preinstalled.
Which ports does the Dynabook XZ/HW W6XZHW5CAS have?
According to its spec sheet: 3 × Thunderbolt 4, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Dynabook XZ/HW W6XZHW5CAS have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Dynabook XZ/HW W6XZHW5CAS have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Dynabook XZ/HW W6XZHW5CAS weigh?
It weighs 899 g.
When was the Dynabook XZ/HW W6XZHW5CAS released?
Its release date is October 2024, 2 years ago.
