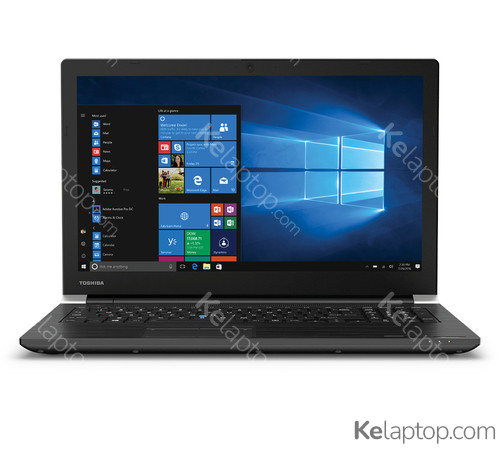

Dynabook Tecra A50-F1528
Specs
Prices
Main specs
| Processor | Intel Core i7-8565U 1,8GHz |
|---|---|
| Screen | 15.6" 1920x1080 |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | Intel UHD Graphics 620 |
| Other | Keyboard US English. |
Alternatives with equal or higher power at a similar or lower price
Full specifications of Dynabook Tecra A50-F1528
| Reference / Part Number | PT5B1U-01K006 |
|---|---|
| Release date | December 2020, 5 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Black,Graphite |
| Form factor | Clamshell |
| Colour name | Graphite Black |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | 8th gen Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8565U |
| Processor frequency | 1,8 GHz |
| Processor boost frequency | 4,6 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | OPI |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| ECC | No |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | DVD Super Multi |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 620 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card 4K support | Yes |
| Graphics card Open GL support | Yes |
Audio
| Audio system | DTS Studio Sound |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Rear camera | No |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
| USB Power Delivery | Yes |
| USB Sleep-and-Charge | Yes |
Performance
| GPS (satellite) | No |
|---|
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Clickpad |
| Keyboard layout | QWERTY |
| Keyboard language | US English |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | Microsoft Office 365 |
| Bundled software | Dynabook Service Station |
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 45 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery life (max) | 8,5 h |
Power
| AC adapter power | 45 W |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80 % |
| Storage relative humidity (H-H) | 10 - 90 % |
| Operating altitude | -60 - 3000 m |
| Non-operating altitude | -60 - 10000 m |
| Operating shock | 10 G |
| Non-operating shock | 60 G |
| Operating vibration | 0,5 G |
| Non-operating vibration | 1 G |
Sustainability
| Sustainability certificates | ENERGY STAR,RoHS |
|---|
Weight & dimensions
| Weight | 2,2 kg |
|---|---|
| Width | 379 mm |
| Depth | 258 mm |
| Height | 24 mm |
Frequently asked questions
Is the Dynabook Tecra A50-F1528 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics 620. Its card's page shows what level it handles current games at.
How long does the battery of the Dynabook Tecra A50-F1528 last?
The manufacturer declares up to 8,5 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Dynabook Tecra A50-F1528 like?
It carries a 15.6" 1920x1080 display.
Which processor and graphics card does the Dynabook Tecra A50-F1528 have?
It runs on the Intel Core i7-8565U processor with the Intel UHD Graphics 620 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Dynabook Tecra A50-F1528 be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 16GB).
Which operating system does the Dynabook Tecra A50-F1528 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Dynabook Tecra A50-F1528 have?
According to its spec sheet: 1 × USB-C, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Dynabook Tecra A50-F1528 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Dynabook Tecra A50-F1528 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Dynabook Tecra A50-F1528 weigh?
It weighs 2,2 kg, a normal weight for its size: easy enough to move around.
When was the Dynabook Tecra A50-F1528 released?
Its release date is December 2020, 5 years ago.
