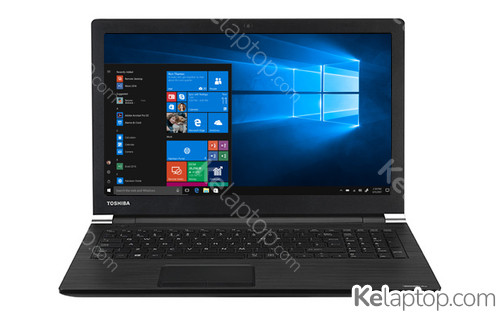

Dynabook Satellite Pro R50-C-12N
Specs
Prices
Main specs
| Processor | Intel Core i5 i5-5200U 2,2GHz |
|---|---|
| Screen | 15.6" 1366x768 |
| Hard drive | 128GB SSD M.2 |
| RAM | 4GB DDR3L-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | Intel HD Graphics 5500 |
Alternatives with equal or higher power at a similar or lower price
Full specifications of Dynabook Satellite Pro R50-C-12N
| Reference / Part Number | PS562E-08X024OB |
|---|---|
| Release date | May 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Graphite |
| Form factor | Clamshell |
| Colour name | Graphite Black |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-5200U |
| Processor frequency | 2,2 GHz |
| Processor generation | 5th gen Intel® Core™ i5 |
| Processor boost frequency | 2,7 GHz |
| Processor cores | 2 |
| Processor threads | 4 |
| System bus rate | 5 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1168 |
| Processor lithography | 14 nm |
| Processor operating modes | 32-bit,64-bit |
| Processor series | Intel Core i5-5200 Mobile series |
| Processor codename | Broadwell |
| Bus type | DMI2 |
| Stepping | F0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-down | 7,5 W |
| Configurable TDP-down frequency | 0,6 GHz |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 4x1,2x4 |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 2x SO-DIMM |
| ECC | No |
Storage
| Total storage capacity | 128 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | DVD Super Multi DL |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | SATA III |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 5500 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 900 MHz |
| Maximum on-board graphics card memory | 16 GB |
| On-board graphics card DirectX version | 11.2 |
| On-board graphics card 4K support | Yes |
| On-board graphics card ID | 0x1616 |
| Graphics card Open GL support | Yes |
Audio
| Built-in microphone | Yes |
|---|
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
| Rear camera | No |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 7265 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Bluetooth version | 4.0 |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Charging port type | DC-in jack |
Performance
| GPS (satellite) | No |
|---|---|
| Accelerometer | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | No |
| Full-size keyboard | Yes |
| Keyboard number of keys | 102 |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Recovery operating system | Windows 10 Pro |
| Trial software | Microsoft Office, McAfee LiveSafe |
| Bundled software | PC Health Monitor DTS Studio Sound Eco Utility |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 40 x 24 x 1.3 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR23Y |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Processor ARK ID | 85212 |
| Conflict-Free processor | Yes |
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Number of battery cells | 4 |
| Battery life (max) | 8 h |
| Removable battery | Yes |
Power
| AC adapter input voltage | 100 - 240 V |
|---|---|
| AC adapter output current | 2,37 A |
| AC adapter output voltage | 19 V |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Supervisor,User |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 2,1 kg |
|---|---|
| Width | 379 mm |
| Depth | 258 mm |
| Height | 23,9 mm |
Frequently asked questions
Is the Dynabook Satellite Pro R50-C-12N good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 5500. Its card's page shows what level it handles current games at.
How long does the battery of the Dynabook Satellite Pro R50-C-12N last?
The manufacturer declares up to 8 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Dynabook Satellite Pro R50-C-12N like?
It carries a 15.6" 1366x768 display.
Which processor and graphics card does the Dynabook Satellite Pro R50-C-12N have?
It runs on the Intel Core i5 i5-5200U processor with the Intel HD Graphics 5500 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Dynabook Satellite Pro R50-C-12N be upgraded?
Yes: it has 2 memory slots and takes up to 16 GB according to the manufacturer (it ships with 4GB).
Which operating system does the Dynabook Satellite Pro R50-C-12N come with?
It comes with Windows 10 Home preinstalled.
Which ports does the Dynabook Satellite Pro R50-C-12N have?
According to its spec sheet: 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Dynabook Satellite Pro R50-C-12N have a backlit keyboard?
No, according to its spec sheet the keyboard is not backlit.
Does the Dynabook Satellite Pro R50-C-12N have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Dynabook Satellite Pro R50-C-12N weigh?
It weighs 2,1 kg, a normal weight for its size: easy enough to move around.
When was the Dynabook Satellite Pro R50-C-12N released?
Its release date is May 2020, 6 years ago.
