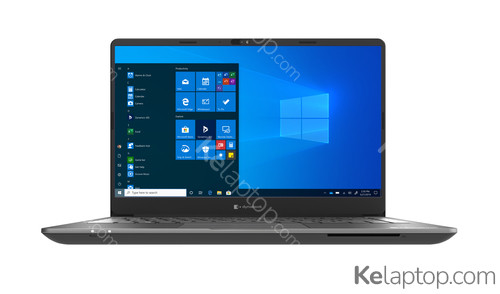

Dynabook Satellite Pro L40-G-102
Price and specs
- Family
Satellite Pro
4 From 837.97 €
Main specs
| Processor | Intel Core i5-10210U 1,6GHz |
|---|---|
| Screen | 14" 1920x1080 |
| Hard drive | 256GB SSD M.2 |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | Intel UHD Graphics |
Prices
Full specifications of Dynabook Satellite Pro L40-G-102
Reference / Part Number
A1PJA11E1116
Release date
May 2020, 3 years ago
Design of Dynabook Satellite Pro L40-G-102
| Product type | Notebook |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
| Colour name | Metal Grey |
| Intel® vPro™ Platform Eligibility | No |
Image gallery
Screen of Dynabook Satellite Pro L40-G-102
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
Processor of Dynabook Satellite Pro L40-G-102
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-10210U |
| Processor frequency | 1,6 GHz |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor boost frequency | 4,2 GHz |
| Processor threads | 8 |
| System bus rate | 4 GT/s |
| Processor cores | 4 |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2,1 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4,2x2,1x2+2x1,4x1 |
Memory of Dynabook Satellite Pro L40-G-102
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory slots | 1x SO-DIMM |
Storage of Dynabook Satellite Pro L40-G-102
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics of Dynabook Satellite Pro L40-G-102
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 32 GB |
| Number of execution units | 24 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x9B41 |
Audio of Dynabook Satellite Pro L40-G-102
| Number of microphones | 2 |
|---|
Camera of Dynabook Satellite Pro L40-G-102
| Front camera | Yes |
|---|---|
| Front camera HD type | HD |
Network of Dynabook Satellite Pro L40-G-102
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| WLAN controller model | Realtek RTL8821CE |
| WLAN controller manufacturer | Realtek |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces of Dynabook Satellite Pro L40-G-102
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Keyboard of Dynabook Satellite Pro L40-G-102
| Numeric keypad | No |
|---|---|
| Pointing device | Clickpad |
Software of Dynabook Satellite Pro L40-G-102
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | Microsoft Office 365 |
Processor special features of Dynabook Satellite Pro L40-G-102
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 46 x 24 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 195436 |
Battery of Dynabook Satellite Pro L40-G-102
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Number of battery cells | 4 |
| Battery life (max) | 11,67 h |
Power of Dynabook Satellite Pro L40-G-102
| AC adapter input voltage | 100 - 240 V |
|---|---|
| AC adapter output current | 2,37 A |
| AC adapter output voltage | 19 V |
Security of Dynabook Satellite Pro L40-G-102
| Cable lock slot | Yes |
|---|---|
| Smart card reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD,Supervisor,User |
Certificates of Dynabook Satellite Pro L40-G-102
| Wi-Fi certified | Yes |
|---|---|
| Certification | The manufacturer declares that this product complies with the following directives and regulations for the CE-marking. Responsible for CE marking is Dynabook Europe GmbH, Stresemannallee 4b, 41460 Neuss, Germany. |
Weight & dimensions of Dynabook Satellite Pro L40-G-102
| Weight | 1,6 kg |
|---|---|
| Width | 322,8 mm |
| Depth | 221,9 mm |
| Height | 18,9 mm |
Logistics data of Dynabook Satellite Pro L40-G-102
| Harmonized System (HS) code | 84713000 |
|---|
Other features of Dynabook Satellite Pro L40-G-102
| AC adapter included | Yes |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
