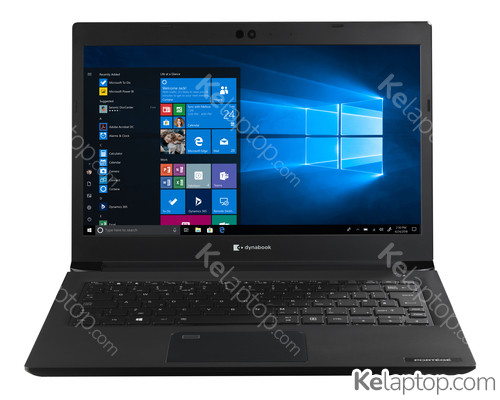

Dynabook Portégé A30-E-189
Specs
Prices
Main specs
| Processor | Intel Core i7-8550U 1,8GHz |
|---|---|
| Screen | 13.3" 1366x768 |
| Hard drive | 256GB SSD |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From Dynabook
Full specifications of Dynabook Portégé A30-E-189
| Reference / Part Number | PSZ10E-0H500JCE |
|---|---|
| Release date | May 2020, 6 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Color name |
Image gallery
Screen
| Display diagonal | 13.3 " (33,8 cm) |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| Display surface | Matt |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8550U |
| Processor frequency | 1,8 GHz |
| Processor generation | Intel Core i7-8xxx |
| Processor boost frequency | 4 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| System bus rate | 4 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake R |
| Bus type | OPI |
| Stepping | Y0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 24 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | On-board |
| Memory slots | 1x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 620 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5917 |
Audio
| Audio system | DTS Studio Sound |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth version | 4.2 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Charging port type | DC-in jack |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard number of keys | 87 |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | Microsoft Office 365 |
| Bundled software | DTS Studio Sound |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 X 24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 122589 |
| Conflict-Free processor | Yes |
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Number of battery cells | 4 |
| Battery life (max) | 8,75 h |
Power
| AC adapter input voltage | 100 - 240 V |
|---|---|
| AC adapter output current | 2,37 A |
| AC adapter output voltage | 19 V |
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | Yes |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | Supervisor,User |
Certificates
| Certification | CE |
|---|
Weight & dimensions
| Weight | 2.8 lbs (1,28 kg) |
|---|---|
| Width | 12.4 " (316 mm) |
| Depth | 8.9 " (227 mm) |
| Height | 0.8 " (19,9 mm) |
Frequently asked questions
Is the Dynabook Portégé A30-E-189 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics 620. Its card's page shows what level it handles current games at.
How long does the battery of the Dynabook Portégé A30-E-189 last?
The manufacturer declares up to 8,75 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Dynabook Portégé A30-E-189 like?
It carries a 13.3" 1366x768 display.
Which processor and graphics card does the Dynabook Portégé A30-E-189 have?
It runs on the Intel Core i7-8550U processor with the Intel UHD Graphics 620 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Dynabook Portégé A30-E-189 be upgraded?
Yes: it has 1 memory slot and takes up to 24 GB according to the manufacturer (it ships with 8GB).
Which operating system does the Dynabook Portégé A30-E-189 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the Dynabook Portégé A30-E-189 have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Dynabook Portégé A30-E-189 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the Dynabook Portégé A30-E-189 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Dynabook Portégé A30-E-189 weigh?
It weighs 1,28 kg: one of the light ones, easy to carry every day.
When was the Dynabook Portégé A30-E-189 released?
Its release date is May 2020, 6 years ago.
