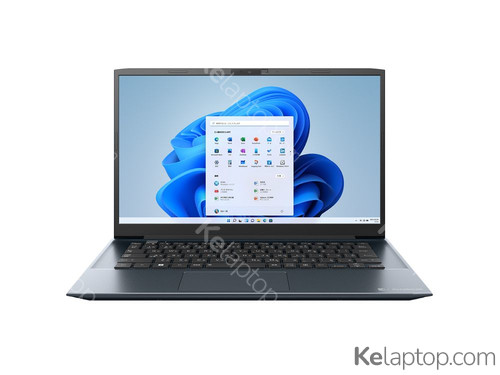

Dynabook MZ/MV W6MZMV5EAL
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 14" 1920x1080 TFT |
| Hard drive | 512GB SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card | |
| Other | Keyboard English,Japanese. |
Alternatives with equal or higher power at a similar or lower price
Full specifications of Dynabook MZ/MV W6MZMV5EAL
| Reference / Part Number | W6MZMV5EAL |
|---|---|
| Also sold as | W6MZMV5FAL |
| Release date | June 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Blue |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | TFT |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-1235U |
| Processor generation | 12th gen Intel® Core™ i5 |
| Efficient-core Max Turbo Frequency | 3,3 GHz |
| Performance-core Max Turbo Frequency | 4,4 GHz |
| Processor cores | 10 |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 12 W |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Performance cores | 2 |
| Efficient cores | 8 |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory channels | Dual-channel |
| ECC | No |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| Graphics card Open GL support | Yes |
Audio
| Audio system | DTS Audio Processing |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,9 MP |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 6 (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|---|
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Charging port type | DC-in jack |
| HDCP | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Clickpad |
| Keyboard layout | QWERTY |
| Keyboard language | English,Japanese |
| Physical layout | JIS |
| Keyboard number of keys | 86 |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
| Bundled software | Microsoft Office Home & Business 2021 |
Processor special features
| CPU configuration (max) | 1 |
|---|
Battery
| Battery capacity | 19,7 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 14 h |
| Battery recharge time | 3 h |
Power
| AC adapter power | 45 W |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | No |
| Face recognition | Yes |
| Password protection | Yes |
| Password protection type | BIOS,HDD |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80 % |
Weight & dimensions
| Weight | 1,38 kg |
|---|---|
| Width | 323,9 mm |
| Depth | 211,8 mm |
| Height | 18,8 mm |
Packaging content
| Manual | Yes |
|---|---|
| Quick start guide | Yes |
| Warranty card | Yes |
| Power cord included | Yes |
Other features
| AC adapter included | Yes |
|---|
Frequently asked questions
Is the Dynabook MZ/MV W6MZMV5EAL good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
How long does the battery of the Dynabook MZ/MV W6MZMV5EAL last?
The manufacturer declares up to 14 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Dynabook MZ/MV W6MZMV5EAL like?
It carries a 14" 1920x1080 TFT display.
Which processor and graphics card does the Dynabook MZ/MV W6MZMV5EAL have?
It runs on the Intel Core i5-1235U processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Dynabook MZ/MV W6MZMV5EAL be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 16GB).
Which operating system does the Dynabook MZ/MV W6MZMV5EAL come with?
It comes with Windows 11 Home preinstalled.
Which ports does the Dynabook MZ/MV W6MZMV5EAL have?
According to its spec sheet: 1 × USB-C, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Dynabook MZ/MV W6MZMV5EAL have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Dynabook MZ/MV W6MZMV5EAL weigh?
It weighs 1,38 kg: one of the light ones, easy to carry every day.
When was the Dynabook MZ/MV W6MZMV5EAL released?
Its release date is June 2023, 3 years ago.
