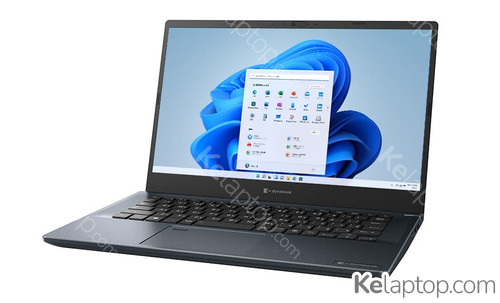

Dynabook M7/U P1M7UPBL
Specs
Prices
Main specs
| Processor | Intel Core i7-1165G7 2,8GHz |
|---|---|
| Screen | 14" 1920x1080 TFT |
| Hard drive | 512GB SSD |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From other brands
- 1
HP OmniBook 3 AI 14-ht0009nsx
€4991041 - 2
HP OmniBook 3 16-bu0007nsx
€4391039 - 3
HP OmniBook 3 16-bu0077ns
€469.31039 - 4
HP OmniBook 3 16-bu0078ns
€478.981039 - 5
HP OmniBook 3 16-bu0043ns
€4791039 - 6
HP OmniBook 3 16-bu0036ns
€4991039 - 7
HP OmniBook 3 AI 14-ht0013nsx
€469.911038 - 8
HP 255 15.6 inch G10 AD1W3ET
€483.469.538 - 9
HP 250R 15.6 inch G10 D31VVAT
€4909.438 - 10
HP OmniBook 3 AI 14-ht0001nsx
€487.99938
Full specifications of Dynabook M7/U P1M7UPBL
| Reference / Part Number | P1M7UPBL |
|---|---|
| Release date | May 2022, 4 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Blue |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | TFT |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-1165G7 |
| Processor frequency | 2,8 GHz |
| Processor generation | 11th gen Intel® Core™ i7 |
| Processor boost frequency | 4,7 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 2,8 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 1,2 GHz |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
Audio
| Audio system | DTS Audio Processing |
|---|---|
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| Charging port type | DC-in jack |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Clickpad |
| Physical layout | JIS |
| Keyboard backlit | No |
| Keyboard number of keys | 86 |
| Keyboard keystroke | 1,4 mm |
| Keyboard key pitch | 1,88 cm |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel Trusted Execution Technology | No |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery technology | Lithium Polymer (LiPo) |
|---|---|
| Battery life (max) | 15 h |
| Battery recharge time | 3 h |
Power
| AC adapter power | 65 W |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
Security
| Cable lock slot | Yes |
|---|---|
| Fingerprint reader | Yes |
| Password protection | Yes |
| Password protection type | BIOS,HDD |
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80 % |
Weight & dimensions
| Weight | 1,47 kg |
|---|---|
| Width | 323,6 mm |
| Depth | 220,6 mm |
| Height | 19,9 mm |
Packaging content
| Cables included | AC |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
Other features
| Power consumption (typical) | 7 W |
|---|
Frequently asked questions
Is the Dynabook M7/U P1M7UPBL good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
How long does the battery of the Dynabook M7/U P1M7UPBL last?
The manufacturer declares up to 15 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the Dynabook M7/U P1M7UPBL like?
It carries a 14" 1920x1080 TFT display.
Which processor and graphics card does the Dynabook M7/U P1M7UPBL have?
It runs on the Intel Core i7-1165G7 processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the Dynabook M7/U P1M7UPBL be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the Dynabook M7/U P1M7UPBL come with?
It comes with Windows 11 Home preinstalled.
Which ports does the Dynabook M7/U P1M7UPBL have?
According to its spec sheet: 2 × Thunderbolt 4, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the Dynabook M7/U P1M7UPBL have a backlit keyboard?
No, according to its spec sheet the keyboard is not backlit.
Does the Dynabook M7/U P1M7UPBL have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the Dynabook M7/U P1M7UPBL weigh?
It weighs 1,47 kg: one of the light ones, easy to carry every day.
When was the Dynabook M7/U P1M7UPBL released?
Its release date is May 2022, 4 years ago.
