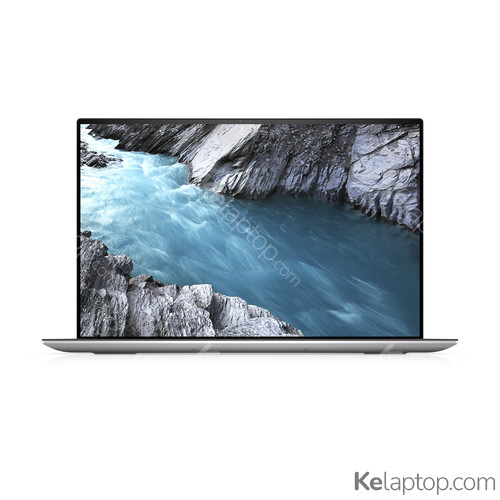

DELL XPS 17 9730 Y76TD
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 17" 3840x2400 WVA 60Hz 500 nits 99% DCI-P3 |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR5-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card | NVIDIA GeForce RTX 4050 6GB GDDR6 |
| Other | Keyboard Nordic. |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of DELL XPS 17 9730 Y76TD
| Reference / Part Number | Y76TD |
|---|---|
| Release date | May 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Platinum,Silver |
| Form factor | Clamshell |
| Intel® vPro™ Platform Eligibility | Yes |
Image gallery
Screen
| Display diagonal | 17 " (43,2 cm) |
|---|---|
| Display resolution | 3840 x 2400 pixels |
| Touchscreen | Yes |
| HD type | UHD+ |
| Panel type | WVA |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Display brightness | 500 cd/m² |
| Pixel density | 266 ppi |
| RGB color space | DCI-P3 |
| Color gamut | 99 % |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1600:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-13700H |
| Generación del procesador | Intel Core i7-13xxx |
| Processor cores | 14 |
| Processor boost frequency | 5 GHz |
| Frecuencia de aceleración de núcleo de rendimiento | 5 |
| Frecuencia de aceleración de núcleo eficiente | 3.7 |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 35 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 4050 |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
Audio
| Audio chip | Realtek ALC711-CG |
|---|---|
| Audio system | MaxxAudio Pro |
| Number of built-in speakers | 4 |
| Speakers manufacturer | Waves |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6E (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | No |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| Número de puertos Thunderbolt 4 | 4 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Ambient light sensor | Yes |
|---|---|
| Accelerometer | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Keyboard language | Nordic |
Software
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Operating system language | Multilingual |
| Trial software | McAfee® Business Protection 1-year,No Microsoft Office License Included 30 day Trial Offer Only |
Processor special features
| CPU configuration (max) | 1 |
|---|
Battery
| Battery capacity | 97 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery voltage | 11,4 V |
| Battery recharge time | 4 h |
| Fast charging | Yes |
| Battery weight | 13.6 oz (385 g) |
Control de energía
| Puerto de carga USB tipo C | Yes |
|---|---|
| AC adapter power | 130 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery | Yes |
| USB charging voltage | 5,20 V |
| USB charging current | 6.5 A |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Wedge |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 3.9 oz (110 G) |
| Non-operating shock | 5.6 oz (160 G) |
| Operating vibration | 0 oz (0,66 G) |
| Non-operating vibration | 0 oz (1,3 G) |
Weight & dimensions
| Weight | 5.7 lbs (2,57 kg) |
|---|---|
| Width | 14.7 " (374,5 mm) |
| Depth | 9.8 " (248,1 mm) |
| Height (front) | 0.3 " (8,67 mm) |
| Height (rear) | 0.5 " (1,31 cm) |
Huella de carbono
| Total de huella de carbono (kg of CO2e) | 555 |
|---|---|
| Total de emisiones de carbono, desviación estándar (kg de CO2e) | 126 |
| Emisiones de carbono, fabricación (kg de CO2e) | 452 |
| Emisiones de carbono, logística (kg de CO2e) | 23 |
| Emisiones de carbono, uso de energía (kg de CO2e) | 77 |
| Emisiones de carbono, fin de vida útil (kg de CO2e) | 3 |
| Emisiones de carbono, sin fase de uso (kg de CO2e) | 478 |
| Versión de PAIA | 1.3.2, 2022 |
Frequently asked questions
Is the DELL XPS 17 9730 Y76TD good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce RTX 4050. Its card's page shows what level it handles current games at.
What is the screen of the DELL XPS 17 9730 Y76TD like?
It carries a 17" 3840x2400 WVA 60Hz 500 nits 99% DCI-P3 display.
Which processor and graphics card does the DELL XPS 17 9730 Y76TD have?
It runs on the Intel Core i7-13700H processor with the NVIDIA GeForce RTX 4050 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the DELL XPS 17 9730 Y76TD be upgraded?
Yes: it has 2 memory slots and takes up to 64 GB according to the manufacturer (it ships with 16GB).
Which operating system does the DELL XPS 17 9730 Y76TD come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the DELL XPS 17 9730 Y76TD have?
According to its spec sheet: 4 × Thunderbolt 4, card reader, headphone jack (3.5 mm).
Does the DELL XPS 17 9730 Y76TD have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the DELL XPS 17 9730 Y76TD have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
How much does the DELL XPS 17 9730 Y76TD weigh?
It weighs 2,57 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the DELL XPS 17 9730 Y76TD released?
Its release date is May 2023, 3 years ago.
