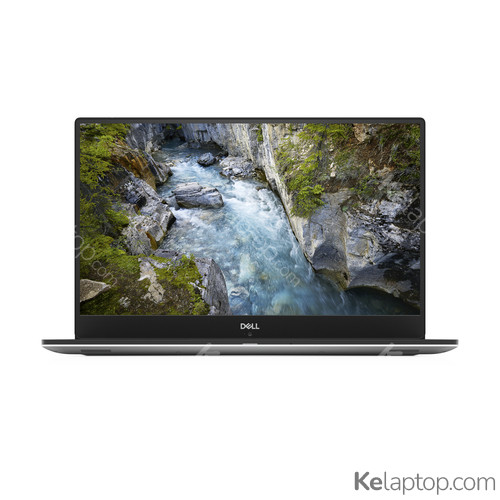

DELL XPS 15 9570 9570-2030
Specs
Prices
Main specs
| Processor | Intel Core i5 i5-8300H 2,3GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 60Hz 400 nits |
| Hard drive | 256GB SSD M.2 |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce GTX 1050 4GB GDDR5 |
| Other | Keyboard French. |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of DELL XPS 15 9570 9570-2030
| Reference / Part Number | 9570-2030 |
|---|---|
| Release date | August 2018, 8 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Silver |
| Form factor | Clamshell |
| Colour name | Platinum Silver |
| Housing material | Aluminium,Carbon fibre |
| Market positioning | Business |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display bezel technology | InfinityEdge |
| Display brightness | 400 cd/m² |
| Pixel pitch | 0,179 x 0,179 mm |
| Dual-screen | No |
| Maximum refresh rate | 60 Hz |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-8300H |
| Processor frequency | 2,3 GHz |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Bus type | DMI |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Configurable TDP-down frequency | 1,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1050 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Number of discrete graphics cards installed | 1 |
Audio
| Audio chip | Realtek ALC3266CG |
|---|---|
| Audio system | MaxxAudio Pro |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Waves |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Thunderbolt 3 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 2 |
Performance
| Motherboard chipset | Intel® CM246 |
|---|---|
| Repairability index | 6.9 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard language | French |
| Keyboard backlit | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
| Operating system language | Multilingual |
| Drivers included | Yes |
| Bundled software | Financial Tracker & Retail Information |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 134876 |
Battery
| Battery capacity | 97 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery voltage | 11,4 V |
| Battery recharge time | 4 h |
| Battery weight | 340 g |
Power
| AC adapter power | 130 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 6,67 A |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Noble |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,User |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0,66 G |
| Non-operating vibration | 1,3 G |
Sustainability
| Sustainability certificates | EPEAT Gold,ENERGY STAR |
|---|
Weight & dimensions
| Weight | 1,8 kg |
|---|---|
| Width | 357 mm |
| Depth | 235 mm |
| Height (front) | 1,1 cm |
| Height (rear) | 1,7 cm |
Packaging data
| Package width | 90 mm |
|---|---|
| Package depth | 491 mm |
| Package height | 334 mm |
| Package weight | 3,57 kg |
| Package material | Grey board,Corrugated cardboard,High-density polyethylene (HDPE),Low-density polyethylene (LDPE),Polypropylene (PP) |
Recycling data
| Bamboo molded pulp content per package | 68 g |
|---|---|
| Grey board content per package | 414 g |
| Corrugated cardboard content per package | 486 g |
| Corrugated cardboard content per shipping (inner) case | 447,2 g |
| Corrugated cardboard content per box for accessories | 39 g |
| Corrugated cardboard content per sleeve for accessories | 38,8 g |
| High-density polyethylene (HDPE) content per package | 104,8 g |
| Low-density polyethylene (LDPE) content per package | 51,8 g |
| Polypropylene (PP) content per package | 13,2 g |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Power cord included | Yes |
Logistics data
| Master (outer) cases per intermodal container (20ft) | 1560 pc(s) |
|---|---|
| Master (outer) cases per intermodal container (40ft, HC) | 3432 pc(s) |
| Products per intermodal container (20ft) | 1300 pc(s) |
| Intermodal container (20ft) loading note | 20' - 78pc/PLT*10PLT+52pc*10plt |
| Products per intermodal container (40ft, HC) | 3276 pc(s) |
| Pallet gross width | 100 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 114,2 cm |
| Pallet gross weight | 286,8 kg |
| Pallet volume weight | 228,4 kg |
| Layers per pallet | 3 pc(s) |
| Products per pallet layer | 26 pc(s) |
| Products per pallet | 78 pc(s) |
| Maximum number of stacking cartons | 6 pc(s) |
Other features
| Maximum internal memory (64-bit) | 32 GB |
|---|---|
| EPEAT rating | 84,14 % |
| On/off button | Yes |
| Package volume weight | 2,46 kg |
Frequently asked questions
Is the DELL XPS 15 9570 9570-2030 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce GTX 1050. Its card's page shows what level it handles current games at.
What is the screen of the DELL XPS 15 9570 9570-2030 like?
It carries a 15.6" 1920x1080 IPS 60Hz 400 nits display.
Which processor and graphics card does the DELL XPS 15 9570 9570-2030 have?
It runs on the Intel Core i5 i5-8300H processor with the NVIDIA GeForce GTX 1050 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the DELL XPS 15 9570 9570-2030 be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the DELL XPS 15 9570 9570-2030 come with?
It comes with Windows 10 Home preinstalled.
Which ports does the DELL XPS 15 9570 9570-2030 have?
According to its spec sheet: 1 × Thunderbolt 3, 2 × USB-A, 1 × HDMI, card reader, headphone jack (3.5 mm).
Does the DELL XPS 15 9570 9570-2030 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the DELL XPS 15 9570 9570-2030 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the DELL XPS 15 9570 9570-2030 made of?
Its housing is made of Aluminium,Carbon fibre.
How much does the DELL XPS 15 9570 9570-2030 weigh?
It weighs 1,8 kg, a normal weight for its size: easy enough to move around.
When was the DELL XPS 15 9570 9570-2030 released?
Its release date is August 2018, 8 years ago.
