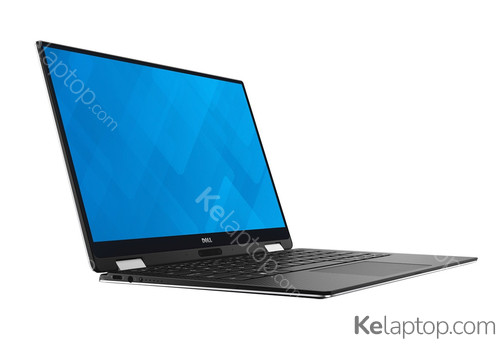

DELL XPS 13 9365 9365-1509
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-7Y75 1,3GHz |
|---|---|
| Screen | 13.3" 3200x1800 IPS 400 nits |
| Hard drive | 1TB SSD M.2 |
| RAM | 16GB LPDDR3-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | Intel HD Graphics 615 |
| Other | Keyboard German. |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of DELL XPS 13 9365 9365-1509
| Reference / Part Number | 9365-1509 |
|---|---|
| Release date | October 2017, 9 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product color | Black,Silver |
| Form factor | Convertible (Folder) |
| Housing material | Aluminium,Carbon fibre |
Image gallery
Screen
| Display diagonal | 13.3 " (33,8 cm) |
|---|---|
| Display resolution | 3200 x 1800 pixels |
| Touchscreen | Yes |
| HD type | Quad HD+ |
| Touch technology | Multi-touch |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display glass type | Gorilla Glass |
| Display bezel technology | InfinityEdge |
| Display brightness | 400 cd/m² |
| Pixel pitch | 0,0918 x 0,0918 mm |
| Pixel density | 276 ppi |
| Contrast ratio (typical) | 1000:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-7Y75 |
| Processor frequency | 1,3 GHz |
| Generación del procesador | Intel Core i7-7xxx |
| Processor boost frequency | 3,6 GHz |
| Processor threads | 4 |
| System bus rate | 4 GT/s |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1515 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Bus type | OPI |
| Stepping | H0 |
| Thermal Design Power (TDP) | 4,5 W |
| Configurable TDP-up frequency | 1,6 GHz |
| Configurable TDP-up | 7 W |
| Configurable TDP-down | 3,5 W |
| Configurable TDP-down frequency | 0,6 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 10 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR3-SDRAM |
| Memory clock speed | 1866 MHz |
| Memory form factor | On-board |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 615 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Maximum on-board graphics card memory | 16 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card 4K support | Yes |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x591E |
| Graphics card Open GL support | Yes |
Audio
| Audio chip | Realtek ALC3271 |
|---|---|
| Audio system | MaxxAudio Pro |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Waves |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DVI port | No |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 2 |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
| Number of Thunderbolt 3 ports with PowerShare support | 1 |
Performance
| Accelerometer | Yes |
|---|---|
| Gyroscope | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard layout | QWERTZ |
| Keyboard language | German |
| Keyboard backlit | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
| Palmrest keyboards supported | Belgian,Czech,French,German,International EER+North Sea,Italian,Portuguese,Slovakian,Spanish,Swiss,Turkish |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
| Operating system language | DEU,DUT,ENG,FRE,ITA |
| Trial software | McAfee LiveSafe (30 days Trial), Microsoft Office (30 days Trial - Excludes Office License) |
| Bundled software | Financial Tracker & Retail Information |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 20.5 X 16.5 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 95441 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 46 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery voltage | 8,9 V |
| Battery life (max) | 15 h |
| Battery recharge time | 4 h |
| Battery charge indicator | Yes |
| Battery charge status button | Yes |
Power
| AC adapter power | 30 W |
|---|---|
| AC adapter frequency | 56/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 2 A |
| AC adapter output voltage | 20 V |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Noble |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS,Supervisor,User |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 4.9 oz (140 G) |
| Non-operating shock | 5.6 oz (160 G) |
| Operating vibration | 0 oz (0,66 G) |
| Non-operating vibration | 0 oz (1,3 G) |
Sustainability
| Sustainability certificates | EPEAT Gold,ENERGY STAR |
|---|
Weight & dimensions
| Weight | 2.7 lbs (1,24 kg) |
|---|---|
| Width | 12 " (304 mm) |
| Depth | 7.8 " (199 mm) |
| Height (front) | 0.3 " (8 mm) |
| Height (rear) | 0.5 " (1,37 cm) |
Packaging data
| Package material | Bamboo molded pulp,Corrugated cardboard,High-density polyethylene (HDPE),Low-density polyethylene (LDPE),Polypropylene (PP) |
|---|
Recycling data
| Bamboo molded pulp content per package | 1.7 oz (48 g) |
|---|---|
| Corrugated cardboard content per package | 25.8 oz (731 g) |
| Corrugated cardboard content per shipping (inner) case | 24.6 oz (697 g) |
| Corrugated cardboard content per box for accessories | 1.2 oz (34 g) |
| High-density polyethylene (HDPE) content per package | 0.4 oz (10 g) |
| Low-density polyethylene (LDPE) content per package | 1 oz (29 g) |
| Polypropylene (PP) content per package | 0.1 oz (4 g) |
| Other materials content per package | 0.2 oz (5 g) |
Packaging content
| Manual | Yes |
|---|---|
| Quick start guide | Yes |
| Warranty card | Yes |
| Power cord included | Yes |
Logistics data
| Quantity per intermodal container (20ft) | 2000 pc(s) |
|---|---|
| Quantity per intermodal container (40ft, HC) | 4368 pc(s) |
| Pallet width | 39.4 " (100 cm) |
| Pallet length | 47.2 " (120 cm) |
| Pallet height | 47.7 " (121,1 cm) |
| Pallet weight | 570.1 lbs (258,6 kg) |
| Pallet volume weight | 533.5 lbs (242 kg) |
| Number of layers per pallet | 13 pc(s) |
| Quantity per pallet layer | 8 pc(s) |
| Quantity per pallet | 104 pc(s) |
| Shipping (inner) case width | 3.2 " (8,2 cm) |
| Shipping (inner) case length | 17.7 " (45 cm) |
| Shipping (inner) case height | 11.5 " (29,3 cm) |
| Shipping (inner) case weight | 5.3 lbs (2,41 kg) |
| Shipping (inner) case volume weight | 4 lbs (1,81 kg) |
| Maximum number of stacking cartons | 26 pc(s) |
Other features
| AC adapter included | Yes |
|---|---|
| Maximum internal memory (64-bit) | 16 GB |
| Memory upgrade note | Additional memory sold separately |
| Wide-angle lens front camera | Yes |
| EPEAT rating | 94,2 % |
| On/off button | Yes |
Frequently asked questions
Is the DELL XPS 13 9365 9365-1509 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel HD Graphics 615. Its card's page shows what level it handles current games at.
How long does the battery of the DELL XPS 13 9365 9365-1509 last?
The manufacturer declares up to 15 h of battery life. Real duration depends on brightness, workload and battery health.
What is the screen of the DELL XPS 13 9365 9365-1509 like?
It carries a 13.3" 3200x1800 IPS 400 nits display.
Which processor and graphics card does the DELL XPS 13 9365 9365-1509 have?
It runs on the Intel Core i7 i7-7Y75 processor with the Intel HD Graphics 615 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the DELL XPS 13 9365 9365-1509 come with?
It comes with Windows 10 Home preinstalled.
Which ports does the DELL XPS 13 9365 9365-1509 have?
According to its spec sheet: 2 × USB-C, card reader, headphone jack (3.5 mm).
Does the DELL XPS 13 9365 9365-1509 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the DELL XPS 13 9365 9365-1509 have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
What material is the DELL XPS 13 9365 9365-1509 made of?
Its housing is made of Aluminium,Carbon fibre.
How much does the DELL XPS 13 9365 9365-1509 weigh?
It weighs 1,24 kg: one of the light ones, easy to carry every day.
When was the DELL XPS 13 9365 9365-1509 released?
Its release date is October 2017, 9 years ago.
