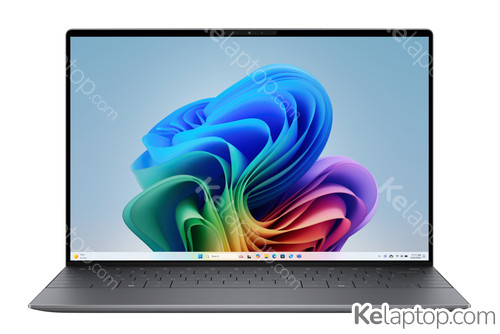

DELL XPS 13 9345 9345-5536
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 13.37" 1920x1200 WVA 120Hz 500 nits 100% sRGB |
| Hard drive | 1TB SSD M.2 |
| RAM | 32GB LPDDR5x-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of DELL XPS 13 9345 9345-5536
| Reference / Part Number | 9345-5536 |
|---|---|
| Also sold as | TRIBUTO_QC_2501_1200, CAEXCPBTS9345HCHP |
| Release date | March 2025, 1 year ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Graphite |
| Form factor | Clamshell |
| Color name | Graphite |
| Housing material | Aluminum |
| Market positioning | Premium |
| Año de introducción | 2024 |
Image gallery
Screen
| Display diagonal | 13.4 " (34 cm) |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | Full HD+ |
| Panel type | WVA |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display glass type | Gorilla Glass |
| Display brightness | 500 cd/m² |
| Pixel density | 169,3 ppi |
| Display diagonal (metric) | 13.4 " (34 cm) |
| RGB color space | sRGB |
| Color gamut | 100 % |
| Low Blue Light technology | Yes |
| Maximum refresh rate | 120 Hz |
| Contrast ratio (typical) | 2000:1 |
Processor
| Processor family | Qualcomm Snapdragon |
|---|---|
| Processor manufacturer | Qualcomm |
| Processor model | X1E-80-100 |
| Processor frequency | 3,4 GHz |
| Generación del procesador | Snapdragon X Elite |
| Processor cores | 12 |
| Processor boost frequency | 4 GHz |
| Processor cache | 42 MB |
Unidad de procesamiento neuronal (NPU)
| Unidad de procesamiento neuronal (NPU) | Qualcomm Hexagon |
|---|---|
| Rendimiento del núcleo NPU de hasta | 45 |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
| Memory channels | Dual-channel |
| Rango de memoria de transferencia de datos | 8448 |
Storage
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Qualcomm Adreno GPU |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Qualcomm |
| On-board graphics card family | Qualcomm Adreno |
Audio
| Audio chip | Qualcomm WSA8845 |
|---|---|
| Number of built-in speakers | 4 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 2,07 MP |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi data rate (max) | 5760 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller model | Qualcomm FastConnect 7800 |
| WLAN controller manufacturer | Qualcomm |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| USB4 Gen 3×2 ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Ambient light sensor | Yes |
|---|---|
| Hall sensor | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Touch Bar | Yes |
| Tecla Copilot | Yes |
Software
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Microsoft Copilot | Yes |
Battery
| Battery capacity | 55 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery voltage | 11,55 V |
| Battery weight | 7.7 oz (219 g) |
Control de energía
| Puerto de carga USB tipo C | Yes |
|---|---|
| AC adapter power | 60 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3 A |
| USB Power Delivery | Yes |
| USB charging voltage | 5,9,15,20 V |
Security
| Fingerprint reader | Yes |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -30 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 3.9 oz (110 G) |
| Non-operating shock | 5.6 oz (160 G) |
| Operating vibration | 0 oz (0,66 G) |
| Non-operating vibration | 0 oz (1,3 G) |
Certificates
| Wi-Fi certified | Yes |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR,EPEAT Climate +,EPEAT Gold |
|---|
Weight & dimensions
| Weight | 2.7 lbs (1,24 kg) |
|---|---|
| Width | 11.6 " (295,3 mm) |
| Depth | 7.8 " (199,1 mm) |
| Height | 0.6 " (15,9 mm) |
Frequently asked questions
Is the DELL XPS 13 9345 9345-5536 good for gaming?
This laptop was not built for gaming: it relies on the integrated Qualcomm Adreno X1-85. Its card's page shows what level it handles current games at.
What is the screen of the DELL XPS 13 9345 9345-5536 like?
It carries a 13.37" 1920x1200 WVA 120Hz 500 nits 100% sRGB display.
Which processor and graphics card does the DELL XPS 13 9345 9345-5536 have?
It runs on the Qualcomm Snapdragon X Elite - X1E-80-100 processor with the Qualcomm Adreno X1-85 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the DELL XPS 13 9345 9345-5536 come with?
It comes with Windows 11 Pro preinstalled.
Does the DELL XPS 13 9345 9345-5536 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the DELL XPS 13 9345 9345-5536 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the DELL XPS 13 9345 9345-5536 made of?
Its housing is made of Aluminum.
How much does the DELL XPS 13 9345 9345-5536 weigh?
It weighs 1,24 kg: one of the light ones, easy to carry every day.
When was the DELL XPS 13 9345 9345-5536 released?
Its release date is March 2025, 1 year ago.
