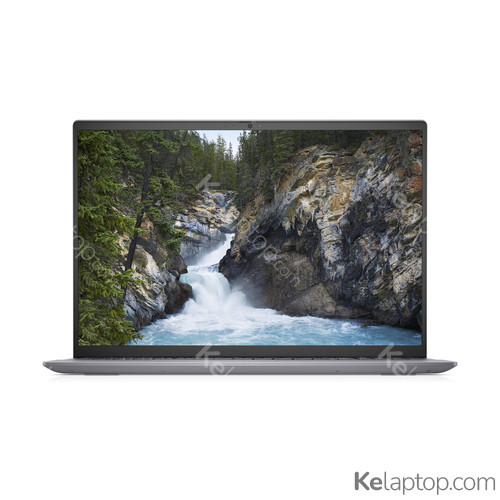

DELL Vostro 16 5630 N1003VNB5630EMEA01
Specs
Prices
Main specs
| Processor | Intel Core i5-1340P 3,4GHz |
|---|---|
| Screen | 16" 1920x1200 WVA 60Hz 250 nits 45% NTSC |
| Hard drive | 256GB SSD M.2 |
| RAM | 8GB LPDDR5-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From DELL
- 1
DELL Pro 14 PC14250 HR1VR
€757.959.247 - 2
DELL Latitude 3000 3450 9DX72
€723.069.147 - 3
DELL Pro 14 Essential PV14250 JG3KF
€768.369.147 - 4
DELL Latitude 3000 3450 XX1P6
€762.438.745 - 5
DELL Pro 15 Essential PV15250 76CK7
€7398.644 - 6
DELL Pro 15 Essential PV15265 NMGYD
€751739 - 7
DELL Latitude 3000 3450 CKXCK
€799738
From other brands
Full specifications of DELL Vostro 16 5630 N1003VNB5630EMEA01
| Reference / Part Number | N1003VNB5630EMEA01 |
|---|---|
| Also sold as | N1007VNB5630EMEA01NORD |
| Release date | February 2023, 3 years ago |
Design
| Product type | Laptop |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
| Colour name | Titan Grey |
| Housing material | Aluminium |
| Market positioning | Business |
| Introduction year | 2023 |
Image gallery
Screen
| Display diagonal | 40,6 cm |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | Full HD+ |
| Panel type | WVA |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 250 cd/m² |
| Pixel density | 141 ppi |
| RGB colour space | NTSC |
| Colour gamut | 45 % |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000:1 |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-1340P |
| Processor frequency | 3,4 GHz |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor cores | 12 |
| Processor boost frequency | 4,6 GHz |
| Processor cache | 12 MB |
| Configurable TDP-down | 20 W |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 8 GB |
| Internal memory type | LPDDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory form factor | On-board |
| Memory channels | Dual-channel |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
Audio
| Audio chip | Realtek ALC3254 |
|---|---|
| Audio system | MaxxAudio Pro |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Waves |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 2,03 MP |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 6E (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| Power adapter barrel connector | 4.5 mm |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Full-size keyboard | Yes |
Software
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Operating system language | Multilingual |
| Trial software | McAfee 30 days trial,Microsoft Office Trial |
Processor special features
| Intel Flex Memory Access | Yes |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 54 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery voltage | 15 V |
| Battery recharge time | 3 h |
| Fast charging | Yes |
| Battery charge indicator | Yes |
| Battery weight | 240 g |
Power
| AC adapter power | 65 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,34 A |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
| USB Power Delivery (USB PD) | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Password protection | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0,66 G |
| Non-operating vibration | 1,3 G |
Weight & dimensions
| Weight | 1,9 kg |
|---|---|
| Width | 356,8 mm |
| Depth | 251,9 mm |
| Height (front) | 1,57 cm |
| Height (rear) | 1,79 cm |
Packaging content
| Cables included | AC |
|---|
Frequently asked questions
Is the DELL Vostro 16 5630 N1003VNB5630EMEA01 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the DELL Vostro 16 5630 N1003VNB5630EMEA01 like?
It carries a 16" 1920x1200 WVA 60Hz 250 nits 45% NTSC display.
Which processor and graphics card does the DELL Vostro 16 5630 N1003VNB5630EMEA01 have?
It runs on the Intel Core i5-1340P processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the DELL Vostro 16 5630 N1003VNB5630EMEA01 come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the DELL Vostro 16 5630 N1003VNB5630EMEA01 have?
According to its spec sheet: 1 × Thunderbolt 4, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the DELL Vostro 16 5630 N1003VNB5630EMEA01 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the DELL Vostro 16 5630 N1003VNB5630EMEA01 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the DELL Vostro 16 5630 N1003VNB5630EMEA01 made of?
Its housing is made of Aluminium.
How much does the DELL Vostro 16 5630 N1003VNB5630EMEA01 weigh?
It weighs 1,9 kg, a normal weight for its size: easy enough to move around.
When was the DELL Vostro 16 5630 N1003VNB5630EMEA01 released?
Its release date is February 2023, 3 years ago.
