DELL Precision 7000 7740 P7740XE3225128GW10P3W
Specs
Prices
Main specs
| Processor | Intel Xeon E E-2276M 2,8GHz |
|---|---|
| Screen | 17.3" 1920x1080 IPS 60Hz 300 nits |
| Hard drive | 512GB SSD |
| RAM | 32GB DDR4-SDRAM |
| Operating system | Windows 10 Pro for Workstations |
| Graphics card | NVIDIA Quadro RTX 4000 8GB GDDR6 |
| Other | Keyboard Spanish. |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of DELL Precision 7000 7740 P7740XE3225128GW10P3W
| Reference / Part Number | P7740XE3225128GW10P3W |
|---|---|
| Release date | November 2019, 6 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |

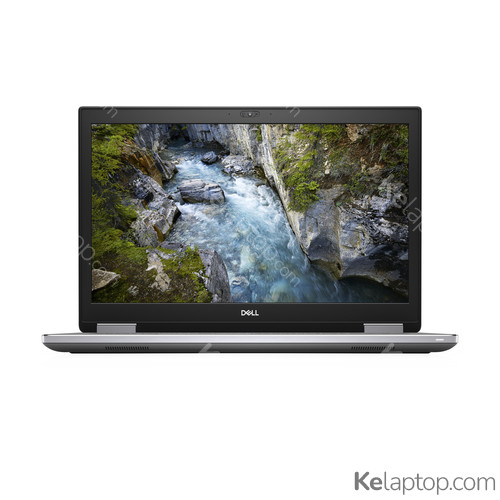

Image gallery
Screen
| Display diagonal | 43,9 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 300 cd/m² |
| Pixel pitch | 0,199 x 0,199 mm |
| Pixel density | 127 ppi |
| Dual-screen | No |
| Maximum refresh rate | 60 Hz |
Processor
| Processor family | Intel Xeon E |
|---|---|
| Processor manufacturer | Intel |
| Processor model | E-2276M |
| Processor frequency | 2,8 GHz |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4,7 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x SO-DIMM |
| ECC | No |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe,PCI Express |
| NVMe | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro RTX 4000 |
| On-board graphics card model | Intel UHD Graphics P630 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E94 |
| Number of discrete graphics cards installed | 1 |
Audio
| Audio chip | Realtek ALC3281 |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,3 MP |
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 3 |
Performance
| Motherboard chipset | Intel® CM246 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Keyboard language | Spanish |
| Keyboard backlit | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro for Workstations |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | Microsoft Office 30 Day |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Thunderbolt™ 3 Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 192989 |
Battery
| Battery capacity | 97 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 6 |
| Battery voltage | 11,4 V |
| Battery recharge time | 4 h |
| Battery weight | 445 g |
Power
| AC adapter power | 240 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 12,31 A |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Password protection | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80 % |
| Storage relative humidity (H-H) | 20 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 105 G |
| Non-operating shock | 40 G |
| Operating vibration | 0,26 G |
| Non-operating vibration | 1,37 G |
Weight & dimensions
| Weight | 3,09 kg |
|---|---|
| Width | 414,2 mm |
| Depth | 273,7 mm |
| Height (front) | 2,62 cm |
| Height (rear) | 3,03 cm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Power cord included | Yes |
Other features
| Maximum internal memory (64-bit) | 128 GB |
|---|
Frequently asked questions
Is the DELL Precision 7000 7740 P7740XE3225128GW10P3W good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro RTX 4000. Its card's page shows what level it handles current games at.
What is the screen of the DELL Precision 7000 7740 P7740XE3225128GW10P3W like?
It carries a 17.3" 1920x1080 IPS 60Hz 300 nits display.
Which processor and graphics card does the DELL Precision 7000 7740 P7740XE3225128GW10P3W have?
It runs on the Intel Xeon E E-2276M processor with the NVIDIA Quadro RTX 4000 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the DELL Precision 7000 7740 P7740XE3225128GW10P3W be upgraded?
Yes: it has 4 memory slots and takes up to 128 GB according to the manufacturer (it ships with 32GB).
Which operating system does the DELL Precision 7000 7740 P7740XE3225128GW10P3W come with?
It comes with Windows 10 Pro for Workstations preinstalled.
Which ports does the DELL Precision 7000 7740 P7740XE3225128GW10P3W have?
According to its spec sheet: 2 × Thunderbolt 3, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the DELL Precision 7000 7740 P7740XE3225128GW10P3W have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the DELL Precision 7000 7740 P7740XE3225128GW10P3W have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the DELL Precision 7000 7740 P7740XE3225128GW10P3W weigh?
It weighs 3,09 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the DELL Precision 7000 7740 P7740XE3225128GW10P3W released?
Its release date is November 2019, 6 years ago.
