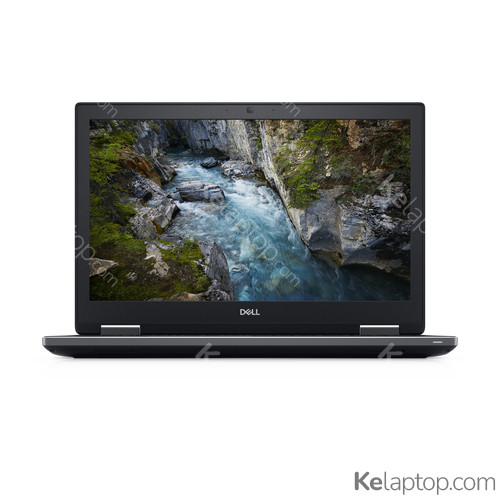

DELL Precision 7000 7730 XCTOP7730HWUS2PS
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-8750H 2,2GHz |
|---|---|
| Screen | 17.3" 1600x900 IPS |
| Hard drive | 256GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | AMD Radeon Pro WX 4150 4GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of DELL Precision 7000 7730 XCTOP7730HWUS2PS
| Reference / Part Number | XCTOP7730HWUS2PS |
|---|---|
| Release date | August 2019, 7 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Market positioning | Business |
Image gallery
Screen
| Display diagonal | 43,9 cm |
|---|---|
| Display resolution | 1600 x 900 pixels |
| Touchscreen | No |
| HD type | HD+ |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Dual-screen | No |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8750H |
| Processor frequency | 2,2 GHz |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4,1 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 9 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Bus type | DMI |
| Stepping | U0 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Configurable TDP-down frequency | 1,7 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | NVMe,PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Radeon Pro WX 4150 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 2 W |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| WLAN controller model | Qualcomm QCA61x4A |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 2 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR3YY |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 134906 |
Battery
| Battery capacity | 64 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery voltage | 7,8 V |
| Battery recharge time | 4 h |
| Battery weight | 298 g |
Power
| AC adapter power | 240 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Noble |
| Password protection | Yes |
| Password protection type | BIOS,User |
Weight & dimensions
| Weight | 3,09 kg |
|---|---|
| Width | 414,2 mm |
| Depth | 273,7 mm |
| Height (front) | 2,62 cm |
| Height (rear) | 3,03 cm |
Other features
| Maximum internal memory (64-bit) | 128 GB |
|---|
Frequently asked questions
Is the DELL Precision 7000 7730 XCTOP7730HWUS2PS good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated AMD Radeon Pro WX 4150. Its card's page shows what level it handles current games at.
What is the screen of the DELL Precision 7000 7730 XCTOP7730HWUS2PS like?
It carries a 17.3" 1600x900 IPS display.
Which processor and graphics card does the DELL Precision 7000 7730 XCTOP7730HWUS2PS have?
It runs on the Intel Core i7 i7-8750H processor with the AMD Radeon Pro WX 4150 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the DELL Precision 7000 7730 XCTOP7730HWUS2PS be upgraded?
Yes: it has 4 memory slots and takes up to 128 GB according to the manufacturer (it ships with 16GB).
Which operating system does the DELL Precision 7000 7730 XCTOP7730HWUS2PS come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the DELL Precision 7000 7730 XCTOP7730HWUS2PS have?
According to its spec sheet: 2 × Thunderbolt 3, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the DELL Precision 7000 7730 XCTOP7730HWUS2PS have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the DELL Precision 7000 7730 XCTOP7730HWUS2PS have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the DELL Precision 7000 7730 XCTOP7730HWUS2PS weigh?
It weighs 3,09 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the DELL Precision 7000 7730 XCTOP7730HWUS2PS released?
Its release date is August 2019, 7 years ago.
