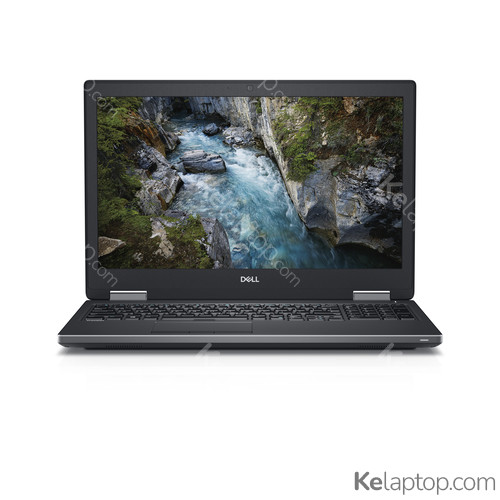

DELL Precision 7000 7530 XCTOP7530HWUS3
Specs
Prices
Main specs
| Processor | Intel Core i7 i7-8850H 2,6GHz |
|---|---|
| Screen | 15.6" 1920x1080 TN 60Hz 220 nits |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | NVIDIA Quadro P1000 4GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of DELL Precision 7000 7530 XCTOP7530HWUS3
| Reference / Part Number | XCTOP7530HWUS3 |
|---|---|
| Release date | May 2019, 7 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Market positioning | Business |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | TN |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 220 cd/m² |
| Pixel pitch | 0,179 x 0,179 mm |
| Pixel density | 141 ppi |
| Pantalla dual | No |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 700:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8850H |
| Processor frequency | 2,6 GHz |
| Generación del procesador | Intel Core i7-8xxx |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4,3 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 9 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Bus type | DMI |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Configurable TDP-down frequency | 2,1 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| ECC supported by processor | No |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe,PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® P1000 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Number of discrete graphics cards installed | 1 |
Audio
| Number of built-in speakers | 2 |
|---|---|
| Speaker power | 2 W |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 9260 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| SmartCard slot | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 2 |
Performance
| Motherboard chipset | Intel® CM246 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 134899 |
Battery
| Battery capacity | 64 Wh |
|---|---|
| Number of battery cells | 4 |
Power
| AC adapter power | 180 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Noble |
| Password protection | Yes |
Weight & dimensions
| Weight | 5.6 lbs (2,52 kg) |
|---|---|
| Width | 14.9 " (377,6 mm) |
| Depth | 9.9 " (251,3 mm) |
| Height (front) | 1 " (2,5 cm) |
| Height (rear) | 1.2 " (3 cm) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
| Power cord included | Yes |
Other features
| Maximum internal memory (64-bit) | 128 GB |
|---|
Frequently asked questions
Is the DELL Precision 7000 7530 XCTOP7530HWUS3 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro P1000. Its card's page shows what level it handles current games at.
What is the screen of the DELL Precision 7000 7530 XCTOP7530HWUS3 like?
It carries a 15.6" 1920x1080 TN 60Hz 220 nits display.
Which processor and graphics card does the DELL Precision 7000 7530 XCTOP7530HWUS3 have?
It runs on the Intel Core i7 i7-8850H processor with the NVIDIA Quadro P1000 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the DELL Precision 7000 7530 XCTOP7530HWUS3 be upgraded?
Yes: it has 4 memory slots and takes up to 128 GB according to the manufacturer (it ships with 16GB).
Which operating system does the DELL Precision 7000 7530 XCTOP7530HWUS3 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the DELL Precision 7000 7530 XCTOP7530HWUS3 have?
According to its spec sheet: 2 × Thunderbolt 3, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the DELL Precision 7000 7530 XCTOP7530HWUS3 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the DELL Precision 7000 7530 XCTOP7530HWUS3 weigh?
It weighs 2,52 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the DELL Precision 7000 7530 XCTOP7530HWUS3 released?
Its release date is May 2019, 7 years ago.
