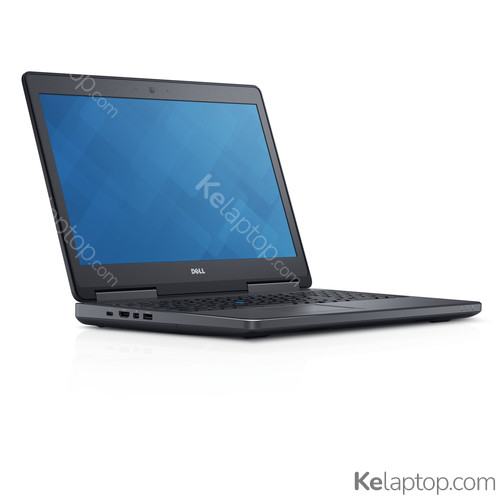

DELL Precision 7000 7520 43DR4
Specs
Prices
Main specs
| Processor | Intel Xeon E3 v5 E3-1545MV5 2,9GHz |
|---|---|
| Screen | 15.6" 1920x1080 |
| Hard drive | 256GB SSD |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 7 Professional |
| Graphics card | NVIDIA Quadro M2200 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of DELL Precision 7000 7520 43DR4
| Reference / Part Number | 43DR4 |
|---|---|
| Also sold as | J0R8J, 9RW75 |
| Release date | June 2017, 9 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Processor family | Intel® Xeon® E3 v5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | E3-1545MV5 |
| Processor frequency | 2,9 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3,8 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E3-1500M v5 |
| Processor codename | Skylake |
| Bus type | DMI3 |
| Stepping | N0 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| ECC supported by processor | Yes |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 4x SO-DIMM |
| ECC | Yes |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® M2200 |
| On-board graphics card model | Intel® Iris™ Pro Graphics P580 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x193D |
| Number of discrete graphics cards installed | 1 |
Audio
| Audio system | MaxxAudio Pro |
|---|---|
| Speakers manufacturer | Waves |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Near Field Communication (NFC) | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Micro-USB 2.0 ports quantity | 0 |
| Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 3 ports quantity | 1 |
| Headphone outputs | 0 |
| S/PDIF out port | No |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
| CardBus PCMCIA slots quantity | 0 |
| SmartCard slot | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 4 |
Performance
| Motherboard chipset | Intel® CM238 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | Windows 7 Professional |
|---|---|
| Operating system architecture | 64-bit |
| Optional operating system supplied | Windows 10 Pro |
| Drivers included | Yes |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR2QU |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 93359 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 91 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 6 |
Power
| AC adapter power | 180 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 9,23 A |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Password protection | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 4.9 oz (140 G) |
| Non-operating shock | 5.7 oz (163 G) |
| Operating vibration | 0 oz (0,66 G) |
| Non-operating vibration | 0 oz (1,3 G) |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 6.2 lbs (2,8 kg) |
|---|---|
| Width | 14.9 " (378 mm) |
| Depth | 10.3 " (261 mm) |
| Height (front) | 1.1 " (2,78 cm) |
| Height (rear) | 1.3 " (3,3 cm) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Power cord included | Yes |
Other features
| Maximum internal memory (64-bit) | 64 GB |
|---|
Frequently asked questions
Is the DELL Precision 7000 7520 43DR4 good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro M2200. Its card's page shows what level it handles current games at.
What is the screen of the DELL Precision 7000 7520 43DR4 like?
It carries a 15.6" 1920x1080 display.
Which processor and graphics card does the DELL Precision 7000 7520 43DR4 have?
It runs on the Intel Xeon E3 v5 E3-1545MV5 processor with the NVIDIA Quadro M2200 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the DELL Precision 7000 7520 43DR4 be upgraded?
Yes: it has 4 memory slots and takes up to 64 GB according to the manufacturer (it ships with 16GB).
Which operating system does the DELL Precision 7000 7520 43DR4 come with?
It comes with Windows 7 Professional preinstalled.
Which ports does the DELL Precision 7000 7520 43DR4 have?
According to its spec sheet: 1 × Thunderbolt 3, 4 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the DELL Precision 7000 7520 43DR4 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the DELL Precision 7000 7520 43DR4 weigh?
It weighs 2,8 kg: one of the heavy ones, more of a desk machine than a daily commuter.
When was the DELL Precision 7000 7520 43DR4 released?
Its release date is June 2017, 9 years ago.
