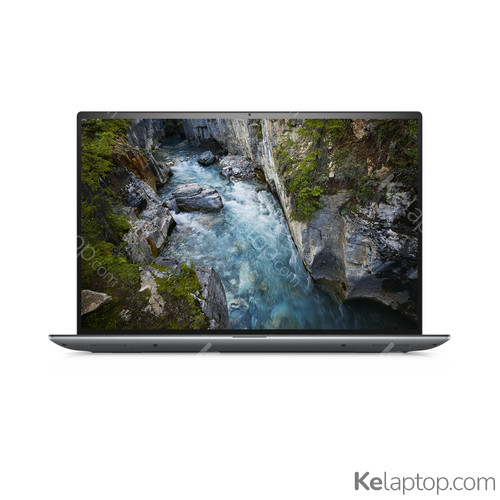

DELL Precision 5000 5480 14RD2
Price, score and specs
+7
Main specs
| Processor | |
|---|---|
| Screen | 14" 1920x1200 WVA 60Hz |
| Hard drive | 512GB SSD M.2 |
| RAM | 32GB LPDDR5-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card | NVIDIA RTX 2000 Ada 8GB GDDR6 |
Prices
In 1 store
In 1 store
Prices
Ships from United States
Full specifications of DELL Precision 5000 5480 14RD2
Reference / Part Number
14RD2
Release date
June 2023, 3 years ago
Design
| Product type | Mobile workstation |
|---|---|
| Product color | Gray |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 14 " (35,6 cm) |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | Full HD+ |
| Panel type | WVA |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 500 cd/m² |
| Pixel density | 161 ppi |
| RGB color space | sRGB |
| Color gamut | 100 % |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-13800H |
| Generación del procesador | Intel Core i7-13xxx |
| Processor cores | 14 |
| Processor boost frequency | 5,2 GHz |
| Núcleos de rendimiento | 6 |
| Núcleos de eficiencia | 8 |
| Frecuencia turbo máxima del núcleo de rendimiento | 5.2 |
| Frecuencia turbo máxima del núcleo de eficiencia | 4 |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 35 W |
| Potencia base del procesador | 45 |
| Potencia turbo máxima | 115 |
Memory
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | LPDDR5-SDRAM |
| Memory clock speed | 6000 MHz |
| Memory form factor | On-board |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
Audio
| Audio chip | Realtek ALC711-VD |
|---|---|
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 6E (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | No |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| Número de puertos Thunderbolt 4 | 4 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Ambient light sensor | Yes |
|---|---|
| Accelerometer | Yes |
| Hall sensor | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| CPU configuration (max) | 1 |
|---|
Battery
| Battery capacity | 72 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery voltage | 15,4 V |
| Battery recharge time | 3 h |
| Fast charging | Yes |
| Battery weight | 10.1 oz (285 g) |
Control de energía
| Puerto de carga USB tipo C | Yes |
|---|---|
| USB Power Delivery | Yes |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB charging voltage | 20,5 V |
| USB charging current | 6.5 A |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Wedge |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 3.9 oz (110 G) |
| Non-operating shock | 5.6 oz (160 G) |
| Operating vibration | 0 oz (0,66 G) |
| Non-operating vibration | 0 oz (1,3 G) |
Weight & dimensions
| Weight | 3.3 lbs (1,48 kg) |
|---|---|
| Width | 12.2 " (310,6 mm) |
| Depth | 8.3 " (210,3 mm) |
| Height (front) | 0.3 " (7,49 mm) |
| Height (rear) | 0.4 " (1,11 cm) |
Packaging content
| Cables included | AC |
|---|
