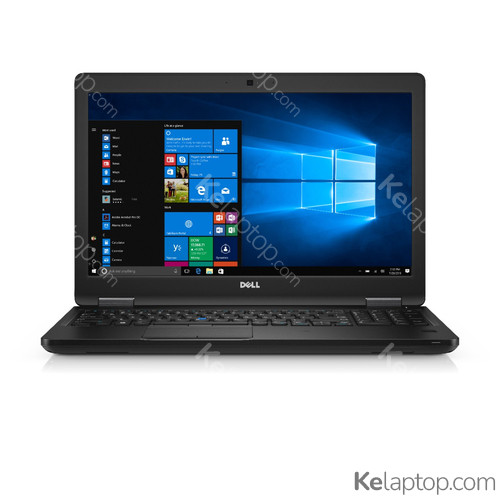

DELL Precision 3000 M3520 VDCGH
Specs
Prices
Main specs
| Processor | Intel Core i5 i5-6440HQ 2,6GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 300 nits |
| Hard drive | 256GB SSD |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 7 Professional |
| Graphics card | NVIDIA Quadro M620 |
Alternatives with equal or higher power at a similar or lower price
From other brands
Full specifications of DELL Precision 3000 M3520 VDCGH
| Reference / Part Number | VDCGH |
|---|---|
| Also sold as | FXHVT |
| Release date | July 2017, 9 years ago |
Design
| Product type | Mobile workstation |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 39,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 300 cd/m² |
| Pixel pitch | 0,179 x 0,179 mm |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-6440HQ |
| Processor frequency | 2,6 GHz |
| Processor generation | 6th gen Intel® Core™ i5 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3,5 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-6400 Mobile series |
| Processor codename | Skylake |
| Bus type | DMI3 |
| Stepping | R0 |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® M620 |
| On-board graphics card model | Intel® HD Graphics 530 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 950 MHz |
| Maximum on-board graphics card memory | 1,7 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x191B |
| Number of discrete graphics cards installed | 1 |
Audio
| Audio chip | Realtek ALC3246 |
|---|---|
| Audio system | MaxxAudio Pro |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Waves |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Docking connector | No |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Performance
| Motherboard chipset | Intel® CM238 |
|---|
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Island-style keyboard | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 7 Professional |
|---|---|
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 10 Pro |
| Drivers included | Yes |
Processor special features
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
| Processor code | SR2FS |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 88962 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 68 Wh |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
| Battery voltage | 7,6 V |
Power
| AC adapter power | 130 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 6,7 A |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Password protection | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 10668 m |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 2,18 kg |
|---|---|
| Width | 376 mm |
| Depth | 250,7 mm |
| Height | 24,3 mm |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Power cord included | Yes |
Other features
| Maximum internal memory (64-bit) | 32 GB |
|---|
Frequently asked questions
Is the DELL Precision 3000 M3520 VDCGH good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA Quadro M620. Its card's page shows what level it handles current games at.
What is the screen of the DELL Precision 3000 M3520 VDCGH like?
It carries a 15.6" 1920x1080 IPS 300 nits display.
Which processor and graphics card does the DELL Precision 3000 M3520 VDCGH have?
It runs on the Intel Core i5 i5-6440HQ processor with the NVIDIA Quadro M620 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the DELL Precision 3000 M3520 VDCGH be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the DELL Precision 3000 M3520 VDCGH come with?
It comes with Windows 7 Professional preinstalled.
Which ports does the DELL Precision 3000 M3520 VDCGH have?
According to its spec sheet: 1 × USB-C, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the DELL Precision 3000 M3520 VDCGH have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the DELL Precision 3000 M3520 VDCGH have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the DELL Precision 3000 M3520 VDCGH weigh?
It weighs 2,18 kg, a normal weight for its size: easy enough to move around.
When was the DELL Precision 3000 M3520 VDCGH released?
Its release date is July 2017, 9 years ago.
