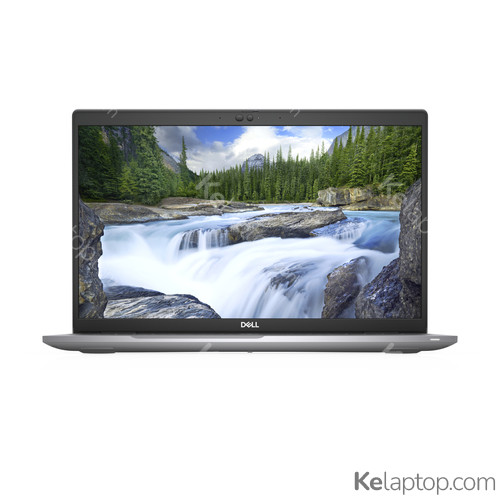

DELL Latitude 5000 5520 TRWDC
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 15.6" 1920x1080 IPS 60Hz |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | |
| Other | Keyboard German. |
Alternatives with equal or higher power at a similar or lower price
From DELL
Full specifications of DELL Latitude 5000 5520 TRWDC
| Reference / Part Number | TRWDC |
|---|---|
| Release date | January 2021, 5 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Gray |
| Form factor | Clamshell |
| Market positioning | Business |
| Intel® vPro™ Platform Eligibility | Yes |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Pixel pitch | 0,179 x 0,179 mm |
| Pixel density | 141 ppi |
| Display response rise/fall | 25 ms |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 700:1 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-1185G7 |
| Generación del procesador | Intel Core i7-11xxx |
| Processor cores | 4 |
| Processor boost frequency | 4,8 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 3 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 1,2 GHz |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| Fabricante de GPU (unidad de procesamiento gráfico) integrada | Intel |
Audio
| Audio chip | Realtek ALC3204 |
|---|---|
| Audio system | MaxxAudio Pro |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Waves |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB4 Gen 3×2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
Keyboard
| Numeric keypad | Yes |
|---|---|
| Pointing device | Clickpad |
| Keyboard backlit | Yes |
| Keyboard language | German |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Operating system language | Multilingual |
| Trial software | Microsoft Office |
Processor special features
| Intel® Evo™ Platform Verified | No |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 63 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery voltage | 15,2 V |
| Battery recharge time | 3 h |
| Fast charging | Yes |
| Battery weight | 8.8 oz (250 g) |
Control de energía
| Puerto de carga USB tipo C | Yes |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,25 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery | Yes |
Security
| Fingerprint reader | Yes |
|---|---|
| Smart card reader | Yes |
| Password protection | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 4.9 oz (140 G) |
| Non-operating shock | 5.6 oz (160 G) |
| Operating vibration | 0 oz (0,66 G) |
| Non-operating vibration | 0 oz (1,3 G) |
Weight & dimensions
| Weight | 3.5 lbs (1,59 kg) |
|---|---|
| Width | 14.1 " (357,8 mm) |
| Depth | 9.3 " (236,2 mm) |
| Height (front) | 0.8 " (1,99 cm) |
| Height (rear) | 0.9 " (2,21 cm) |
Packaging data
| Package width | 19.4 " (494 mm) |
|---|---|
| Package depth | 3.2 " (82 mm) |
| Package height | 12.4 " (315 mm) |
| Package weight | 6.8 lbs (3,09 kg) |
Frequently asked questions
Is the DELL Latitude 5000 5520 TRWDC good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the DELL Latitude 5000 5520 TRWDC like?
It carries a 15.6" 1920x1080 IPS 60Hz display.
Which processor and graphics card does the DELL Latitude 5000 5520 TRWDC have?
It runs on the Intel Core i7-1185G7 processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the DELL Latitude 5000 5520 TRWDC be upgraded?
Yes: it has 2 memory slots and takes up to 64 GB according to the manufacturer (it ships with 16GB).
Which operating system does the DELL Latitude 5000 5520 TRWDC come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the DELL Latitude 5000 5520 TRWDC have?
According to its spec sheet: 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the DELL Latitude 5000 5520 TRWDC have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the DELL Latitude 5000 5520 TRWDC have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the DELL Latitude 5000 5520 TRWDC weigh?
It weighs 1,59 kg, a normal weight for its size: easy enough to move around.
When was the DELL Latitude 5000 5520 TRWDC released?
Its release date is January 2021, 5 years ago.
