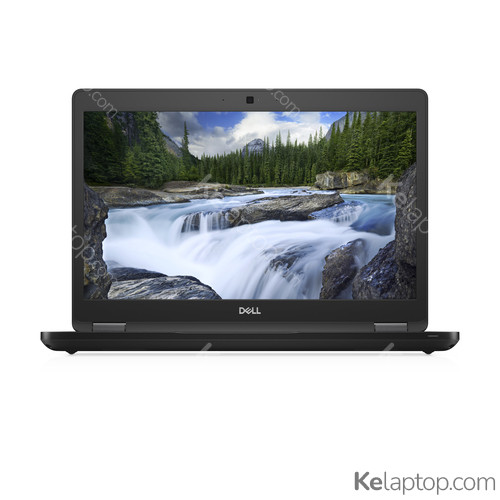

DELL Latitude 5000 5490 5490-3992
Specs
Prices
Main specs
| Processor | Intel Core i7-8650U 1,9GHz |
|---|---|
| Screen | 14" 1920x1080 WVA 220 nits |
| Hard drive | 256GB SSD M.2 |
| RAM | 8GB DDR4-SDRAM |
| Operating system | Windows 10 Pro |
| Graphics card | |
| Other | Keyboard Czech,Slovakian. |
Alternatives with equal or higher power at a similar or lower price
From DELL
From other brands
- 1
Lenovo IdeaPad 3 14ITL05 81X700FXUS
$3991033 - 2
Acer Aspire Go 15 AG15-21P-R0RR
$389.991032 - 3
Acer Spin 5 SP513-54N-58XD
$399.951031 - 4
Lenovo IdeaPad 3 14IIL05 81WD00U9US
$376531 - 5
Lenovo V V14 G4 ABP 83FG0000US
$395531 - 6
Acer Aspire 3 A315-24P-R7VH
$368531 - 7
Lenovo IdeaPad 1 15AMN7 82VG00BJUS
$3984.930 - 8
ASUS Vivobook 14 X1404VA-I38128
$3884.930 - 9
Acer Aspire 3 A314-36P-3772
$3704.830 - 10
Lenovo IdeaPad Slim 3 15IAN8 82XB00C2US
$335.494.830
Full specifications of DELL Latitude 5000 5490 5490-3992
| Reference / Part Number | 5490-3992 |
|---|---|
| Release date | October 2018, 8 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black |
| Form factor | Clamshell |
| Housing material | Carbon fibre,Polymer |
| Market positioning | Business |
Image gallery
Screen
| Display diagonal | 14 " (35,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | WVA |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 220 cd/m² |
| Pantalla dual | No |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-8650U |
| Processor frequency | 1,9 GHz |
| Generación del procesador | Intel Core i7-8xxx |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4,2 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake R |
| Bus type | OPI |
| Stepping | Y0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2,1 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| ECC supported by processor | No |
Memory
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 620 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5917 |
Audio
| Audio chip | Realtek ALC3246 |
|---|---|
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 1 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 867 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| SmartCard slot | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard language | Czech,Slovakian |
| Keyboard backlit | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Pro |
|---|---|
| Operating system architecture | 64-bit |
| Drivers included | Yes |
| Trial software | Microsoft Office |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 24 mm |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor code | SR3L8 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 124968 |
| Conflict-Free processor | Yes |
Battery
| Battery capacity | 68 Wh |
|---|---|
| Number of battery cells | 4 |
| Battery voltage | 7,6 V |
| Battery weight | 12 oz (340 g) |
Power
| AC adapter power | 65 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Noble |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 10668 m |
| Operating shock | 5.6 oz (160 G) |
| Non-operating shock | 5.6 oz (160 G) |
| Operating vibration | 0 oz (0,66 G) |
| Non-operating vibration | 0 oz (1,33 G) |
Weight & dimensions
| Weight | 3.5 lbs (1,6 kg) |
|---|---|
| Width | 13.1 " (333,4 mm) |
| Depth | 9 " (228,9 mm) |
| Height (front) | 0.8 " (2,03 cm) |
| Height (rear) | 0.8 " (2,05 cm) |
Packaging data
| Package width | 18.6 " (472 mm) |
|---|---|
| Package depth | 3.2 " (81 mm) |
| Package height | 11.6 " (294 mm) |
| Package weight | 6.3 lbs (2,87 kg) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
Other features
| Maximum internal memory (64-bit) | 32 GB |
|---|---|
| Memory upgrade note | Additional memory sold separately |
Frequently asked questions
Is the DELL Latitude 5000 5490 5490-3992 good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel UHD Graphics 620. Its card's page shows what level it handles current games at.
What is the screen of the DELL Latitude 5000 5490 5490-3992 like?
It carries a 14" 1920x1080 WVA 220 nits display.
Which processor and graphics card does the DELL Latitude 5000 5490 5490-3992 have?
It runs on the Intel Core i7-8650U processor with the Intel UHD Graphics 620 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the DELL Latitude 5000 5490 5490-3992 be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 8GB).
Which operating system does the DELL Latitude 5000 5490 5490-3992 come with?
It comes with Windows 10 Pro preinstalled.
Which ports does the DELL Latitude 5000 5490 5490-3992 have?
According to its spec sheet: 1 × USB-C, 3 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the DELL Latitude 5000 5490 5490-3992 have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the DELL Latitude 5000 5490 5490-3992 have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
What material is the DELL Latitude 5000 5490 5490-3992 made of?
Its housing is made of Carbon fibre,Polymer.
How much does the DELL Latitude 5000 5490 5490-3992 weigh?
It weighs 1,6 kg, a normal weight for its size: easy enough to move around.
When was the DELL Latitude 5000 5490 5490-3992 released?
Its release date is October 2018, 8 years ago.
