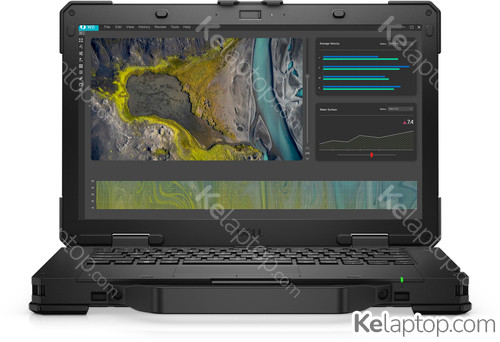

DELL Latitude 5000 5430 Rugged M7WND
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 14" 1920x1080 WVA 60Hz 100% sRGB |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB DDR4-SDRAM |
| Operating system | Windows 11 Pro |
| Graphics card |
Alternatives with equal or better features at a better price
Full specifications of DELL Latitude 5000 5430 Rugged M7WND
Reference / Part Number
M7WND
Release date
March 2022, 4 years ago
Design
| Product type | Laptop |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Rugged design | Yes |
Image gallery
Screen
| Display diagonal | 35,6 cm |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | WVA |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Pixel pitch | 0,161 x 0,161 mm |
| Pixel density | 157 ppi |
| RGB colour space | sRGB |
| Colour gamut | 100 % |
| Display response rise/fall | 35 ms |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1500:1 |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-1145G7 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor cores | 4 |
| Processor boost frequency | 4,4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 2,6 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 1,1 GHz |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | SO-DIMM |
| Memory slots | 2x SO-DIMM |
| ECC | No |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe,PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS),MicroSD (TransFlash),SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
Audio
| Audio chip | Realtek ALC3254 |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 0,92 MP |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.0 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Pro |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel Trusted Execution Technology | Yes |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Battery
| Battery capacity | 53,5 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery voltage | 11,4 V |
| Battery recharge time | 2 h |
| Fast charging | Yes |
| Battery weight | 265 g |
Power
| USB Type-C charging port | Yes |
|---|---|
| USB Power Delivery (USB PD) | Yes |
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB charging voltage | 5,9,15,20 V |
| USB charging current | 3.25 A |
Security
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Password protection | Yes |
Operational conditions
| Operating temperature (T-T) | -29 - 63 °C |
|---|---|
| Storage temperature (T-T) | -51 - 71 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | 0 - 12192 m |
| Non-operating altitude | 0 - 12192 m |
| Operating shock | 160 G |
| Non-operating shock | 185 G |
Sustainability
| Sustainability certificates | ENERGY STAR,EPEAT Silver |
|---|
Weight & dimensions
| Weight | 1,97 kg |
|---|---|
| Width | 340 mm |
| Depth | 220 mm |
| Height (front) | 3,36 cm |
| Height (rear) | 3,36 cm |
Packaging content
| Cables included | AC |
|---|
Frequently asked questions
Is the DELL Latitude 5000 5430 Rugged M7WND good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the DELL Latitude 5000 5430 Rugged M7WND like?
It carries a 14" 1920x1080 WVA 60Hz 100% sRGB display.
Which processor and graphics card does the DELL Latitude 5000 5430 Rugged M7WND have?
It runs on the Intel Core i5-1145G7 processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the DELL Latitude 5000 5430 Rugged M7WND be upgraded?
Yes: it has 2 memory slots and takes up to 64 GB according to the manufacturer (it ships with 16GB).
Which operating system does the DELL Latitude 5000 5430 Rugged M7WND come with?
It comes with Windows 11 Pro preinstalled.
Which ports does the DELL Latitude 5000 5430 Rugged M7WND have?
According to its spec sheet: 1 × Thunderbolt 4, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the DELL Latitude 5000 5430 Rugged M7WND have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the DELL Latitude 5000 5430 Rugged M7WND have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the DELL Latitude 5000 5430 Rugged M7WND weigh?
It weighs 1,97 kg, a normal weight for its size: easy enough to move around.
When was the DELL Latitude 5000 5430 Rugged M7WND released?
Its release date is March 2022, 4 years ago.
