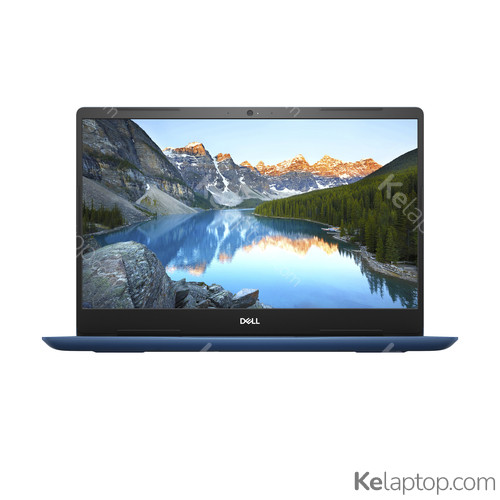

DELL Inspiron 5000 5580 INS 15-5580-D2525L
Specs
Prices
Main specs
| Processor | Intel Core i5-8265U 1,6GHz |
|---|---|
| Screen | 15.6" 1920x1080 IPS 60Hz 220 nits |
| Hard drive | 1,13TB HDD+SSD M.2 |
| RAM | 4GB DDR4-SDRAM |
| Operating system | Windows 10 Home |
| Graphics card | NVIDIA GeForce MX130 2GB GDDR5 |
Alternatives with equal or higher power at a similar or lower price
From DELL
Full specifications of DELL Inspiron 5000 5580 INS 15-5580-D2525L
| Reference / Part Number | INS 15-5580-D2525L |
|---|---|
| Also sold as | INS 15-5580-D2525S |
| Release date | July 2019, 7 years ago |
Design
| Product type | Laptop |
|---|---|
| Product color | Black,Blue |
| Form factor | Clamshell |
Image gallery
Screen
| Display diagonal | 15.6 " (39,6 cm) |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 220 cd/m² |
| Pixel pitch | 0,179 x 0,179 mm |
| Pixel density | 141 ppi |
| Pantalla dual | No |
| Display response rise/fall | 35 ms |
| Maximum refresh rate | 60 Hz |
Processor
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i5-8265U |
| Processor frequency | 1,6 GHz |
| Generación del procesador | Intel Core i5-8xxx |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3,9 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Whiskey Lake |
| Bus type | OPI |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 1,8 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0,8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4,2x2 |
Memory
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Total storage capacity | 1,13 TB |
|---|---|
| Storage media | HDD+SSD |
| Optical drive type | No |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| HDD size | 2.5 " |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | NVMe,PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® MX130 |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3EA0 |
| Number of discrete graphics cards installed | 1 |
Audio
| Audio chip | Realtek ALC3204 |
|---|---|
| Audio system | MaxxAudio Pro |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Waves |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
| Front camera HD type | HD |
| Video capturing speed | 30 fps |
Network
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Bluetooth | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | Touchpad |
| Windows keys | Yes |
Software
| Operating system installed | Windows 10 Home |
|---|---|
| Operating system architecture | 64-bit |
Processor special features
| Intel® My WiFi Technology (Intel® MWT) | Yes |
|---|---|
| Intel® Smart Response Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 1.8 " (46x24 mm) |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 149088 |
Battery
| Battery capacity | 42 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery voltage | 11,4 V |
| Battery recharge time | 4 h |
| Battery weight | 7.1 oz (200 g) |
Power
| DC-in jack | Yes |
|---|
Security
| Cable lock slot | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | -15,2 - 3048 m |
| Non-operating altitude | -15,2 - 10668 m |
| Operating shock | 3.9 oz (110 G) |
| Non-operating shock | 5.6 oz (160 G) |
| Operating vibration | 0 oz (0,66 G) |
| Non-operating vibration | 0 oz (1,3 G) |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Weight & dimensions
| Weight | 3.9 lbs (1,77 kg) |
|---|---|
| Width | 14.1 " (359,1 mm) |
| Depth | 9.8 " (249 mm) |
| Height (front) | 0.7 " (1,8 cm) |
| Height (rear) | 0.8 " (1,95 cm) |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Power cord included | Yes |
Other features
| Laptop hinge test | Yes |
|---|---|
| Keyboard test | Yes |
| Extreme temperature test | Yes |
| I/O ports test | Yes |
| Maximum internal memory (64-bit) | 32 GB |
Frequently asked questions
Is the DELL Inspiron 5000 5580 INS 15-5580-D2525L good for gaming?
You can game on it, though this laptop was not built for it: it carries the dedicated NVIDIA GeForce MX130. Its card's page shows what level it handles current games at.
What is the screen of the DELL Inspiron 5000 5580 INS 15-5580-D2525L like?
It carries a 15.6" 1920x1080 IPS 60Hz 220 nits display.
Which processor and graphics card does the DELL Inspiron 5000 5580 INS 15-5580-D2525L have?
It runs on the Intel Core i5-8265U processor with the NVIDIA GeForce MX130 graphics. Their pages carry their benchmarks, ranking position and alternatives.
Can the RAM of the DELL Inspiron 5000 5580 INS 15-5580-D2525L be upgraded?
Yes: it has 2 memory slots and takes up to 32 GB according to the manufacturer (it ships with 4GB).
Which operating system does the DELL Inspiron 5000 5580 INS 15-5580-D2525L come with?
It comes with Windows 10 Home preinstalled.
Which ports does the DELL Inspiron 5000 5580 INS 15-5580-D2525L have?
According to its spec sheet: 1 × USB-C, 2 × USB-A, 1 × HDMI, Ethernet (RJ-45), card reader, headphone jack (3.5 mm).
Does the DELL Inspiron 5000 5580 INS 15-5580-D2525L have a touch screen?
No, according to its spec sheet the screen is not a touch screen.
How much does the DELL Inspiron 5000 5580 INS 15-5580-D2525L weigh?
It weighs 1,77 kg, a normal weight for its size: easy enough to move around.
When was the DELL Inspiron 5000 5580 INS 15-5580-D2525L released?
Its release date is July 2019, 7 years ago.
