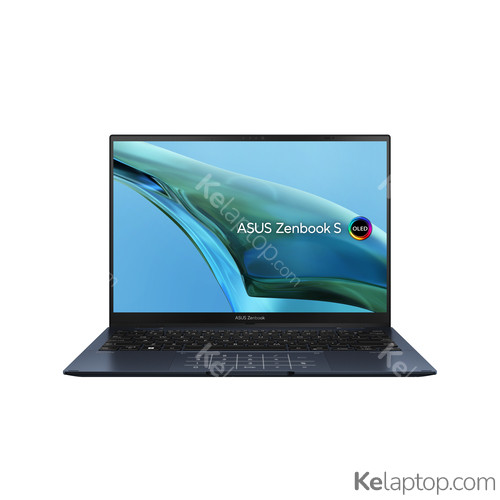

ASUS Zenbook S 13 Flip OLED UP5302ZA-LX416W
Specs
Prices
Main specs
| Processor | |
|---|---|
| Screen | 13.3" 2880x1800 OLED 60Hz 100% DCI-P3 |
| Hard drive | 512GB SSD M.2 |
| RAM | 16GB LPDDR5-SDRAM |
| Operating system | Windows 11 Home |
| Graphics card |
Alternatives with equal or higher power at a similar or lower price
From ASUS
From other brands
Full specifications of ASUS Zenbook S 13 Flip OLED UP5302ZA-LX416W
| Reference / Part Number | 90NB0VV1-M00KK0 |
|---|---|
| Release date | August 2023, 3 years ago |
Design
| Product type | Hybrid (2-in-1) |
|---|---|
| Product colour | Blue |
| Form factor | Convertible (Folder) |
| Colour name | Ponder Blue |
| Housing material | Magnesium |
| Market positioning | Home |
Image gallery
Screen
| Display diagonal | 33,8 cm |
|---|---|
| Display resolution | 2880 x 1800 pixels |
| Touchscreen | Yes |
| HD type | 2.8K |
| Panel type | OLED |
| Display number of colours | 1.073 billion colours |
| Native aspect ratio | 16:10 |
| Maximum display brightness (HDR) | 400 cd/m² |
| RGB colour space | DCI-P3 |
| Colour gamut | 100 % |
| Display response rise/fall | 0,2 ms |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | HDR True Black 500 |
Processor
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor manufacturer | Intel |
| Processor model | i7-1260P |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor cores | 12 |
| Processor boost frequency | 4,7 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4,7 GHz |
| Efficient-core Max Turbo Frequency | 3,4 GHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 20 W |
| Processor base power | 28 W |
| Maximum turbo power | 64 W |
Memory
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5-SDRAM |
| Memory form factor | On-board |
Storage
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
Audio
| Audio system | Smart Amp |
|---|---|
| Speakers manufacturer | Harman Kardon |
| Built-in microphone | Yes |
Camera
| Front camera | Yes |
|---|---|
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
Network
| Mobile network connection | No |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| USB 2.0 ports quantity | 0 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Keyboard
| Numeric keypad | No |
|---|---|
| Pointing device | NumberPad |
| Keyboard backlit | Yes |
Software
| Operating system installed | Windows 11 Home |
|---|---|
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers |
Processor special features
| CPU configuration (max) | 1 |
|---|
Battery
| Battery capacity | 67 Wh |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| USB Type-C charging port | Yes |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3,25 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery (USB PD) | Yes |
Security
| Fingerprint reader | Yes |
|---|---|
| Face recognition | Yes |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
Certificates
| Compliance certificates | REACH,RoHS |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Weight | 1,1 kg |
|---|---|
| Width | 296,3 mm |
| Depth | 209,7 mm |
| Height | 14,9 mm |
Packaging content
| Stylus pen | Yes |
|---|
Frequently asked questions
Is the ASUS Zenbook S 13 Flip OLED UP5302ZA-LX416W good for gaming?
This laptop was not built for gaming: it relies on the integrated Intel Iris Xe Graphics. Its card's page shows what level it handles current games at.
What is the screen of the ASUS Zenbook S 13 Flip OLED UP5302ZA-LX416W like?
It carries a 13.3" 2880x1800 OLED 60Hz 100% DCI-P3 display.
Which processor and graphics card does the ASUS Zenbook S 13 Flip OLED UP5302ZA-LX416W have?
It runs on the Intel Core i7-1260P processor with the Intel Iris Xe Graphics graphics. Their pages carry their benchmarks, ranking position and alternatives.
Which operating system does the ASUS Zenbook S 13 Flip OLED UP5302ZA-LX416W come with?
It comes with Windows 11 Home preinstalled.
Which ports does the ASUS Zenbook S 13 Flip OLED UP5302ZA-LX416W have?
According to its spec sheet: 2 × Thunderbolt 4, 1 × USB-C, card reader, headphone jack (3.5 mm).
Does the ASUS Zenbook S 13 Flip OLED UP5302ZA-LX416W have a backlit keyboard?
Yes, according to its spec sheet the keyboard is backlit.
Does the ASUS Zenbook S 13 Flip OLED UP5302ZA-LX416W have a touch screen?
Yes, according to its spec sheet the screen is a touch screen.
What material is the ASUS Zenbook S 13 Flip OLED UP5302ZA-LX416W made of?
Its housing is made of Magnesium.
How much does the ASUS Zenbook S 13 Flip OLED UP5302ZA-LX416W weigh?
It weighs 1,1 kg: one of the light ones, easy to carry every day.
When was the ASUS Zenbook S 13 Flip OLED UP5302ZA-LX416W released?
Its release date is August 2023, 3 years ago.
